Tamiya stiksæt 6,2mm 9-POL (3 RÆKKER)
Varenummer:
99-973
Varekode: L6.2-9P MULTISTIK
Vægt: 32 g
487 stk.
på lager

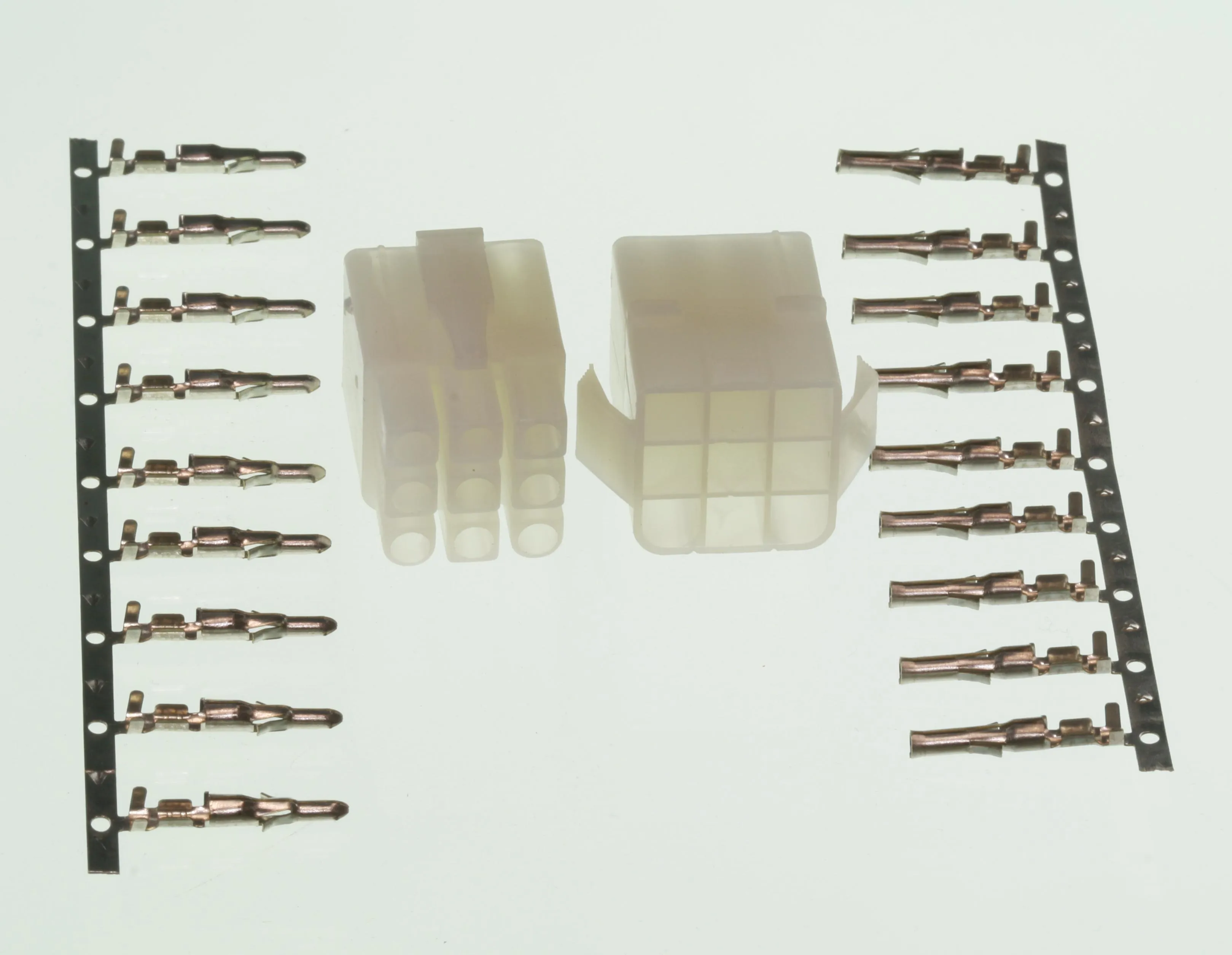

Posen indeholder 1 x han hus, 1 x hun hus, 9 x han indsatser og 9 x hun indsatser til 1 stk. komplet 9-pol stikforbindelse.
Product Description
(L6.2) electrical connector
Spacing: 6.2 mm
Applicable wire gauge: AWG# 22 ~ # 16
Temperature range: 25 C ~ 85 C
Rated voltage: 300 V AC/DC
Rated current: 15-9A
Contact resistance: 0.01 Ω or less
Insulation resistance: 1000 m Ω or higher
The pressure value: 1500 V AC/min
Material:
Plug: nylon (PA66) UL94V - 2
sockets: nylon (PA66)UL94V - 2
Package Include
• Male Terminal
• Female Terminal
• 9 port Male Housing
• 9 port Female Housing
