  6. 8-bit register with clock enable DIP-20

8-bit register with clock enable DIP-20

Varenummer: 79-927
Varekode: 74LS377
Vægt: 5 g
1535 stk. på lager
Vis lignende produkter i kategorien "74LS"

Features

SN74LS377N - T74LS377B1 -

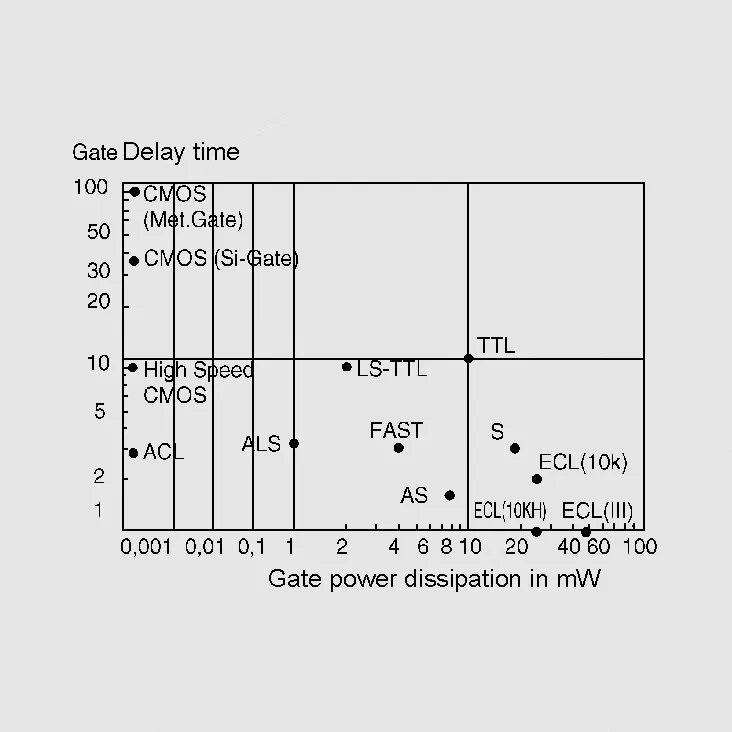

Functions of LS_, HC_, HCT_:
Gate Buffer
• NAND: 00, 01, 03, 10, 12, 20, 22, 26, 30, 37, 38, 40,133
• NOR: 02, 27, 28, 33, 260
• AND: 08, 09, 11, 15, 21
• OR: 32
• XOR: 86, 136, 386
• XNOR: 266
• Inverter: 04, 05, 06, 07
• TRI-STATE: 125, 126, 240, 241, 244, 245, 365, 367, 368, 540, 541
• Bi-directional: 240, 242, 243, 245, 640, 641, 642, 643, 644, 645, 645N1
• Multifunctional: 51, 54
• Schmitt Trigger: 13, 14, 18, 19, 24, 132

Flip Flop
• J-K Flip-Flop: 73, 76, 78, 107, 109, 112, 113, 114
• D Flip-Flop: 74A, 174, 175, 273, 377
• 3-State: 374, 534, 573, 574

Latch: 75, 77, 259, 279, 375
• 3-State: 373, 533, 573

Comparators: 85, 688

Multivibrator: 122, 123, 221
• VCO: 629

Decoder: 42, 137, 138, 139, 145, 154, 155, 156, 256, 259
• 7-Segment: 47, 48, 49, 247, 248, 249

Encoder: 147, 148, 348

Register: 91, 96, 164, 165, 166, 170, 174, 175, 194, 273, 295,
298, 299, 322, 323, 374, 377, 378, 379, 395, 398, 399, 534, 670

Counter
• Binary: 92, 93, 161, 163, 169, 191, 193, 197, 293, 393, 569, 669
• Decade: 90, 160, 162, 168, 190, 192, 290, 390, 490, 568

Multiplexer
• Digital: 151, 152, 153, 157, 158, 251, 253, 257, 258, 298, 352,
353, 398, 399

Others
• Adder: 83, 283, 385
• ALU: 181, 182
• Parity Tree: 280


Manufacturer
Various
If you have preference for a particular manufacturer, please inquire before placing your order.
Inkl. moms
Kr. 7,85
  • v/10 – Kr. 6,28
  • v/20 – Kr. 4,71
  • v/100 – Kr. 1,89
  • v/1000 – Kr. 0,56
