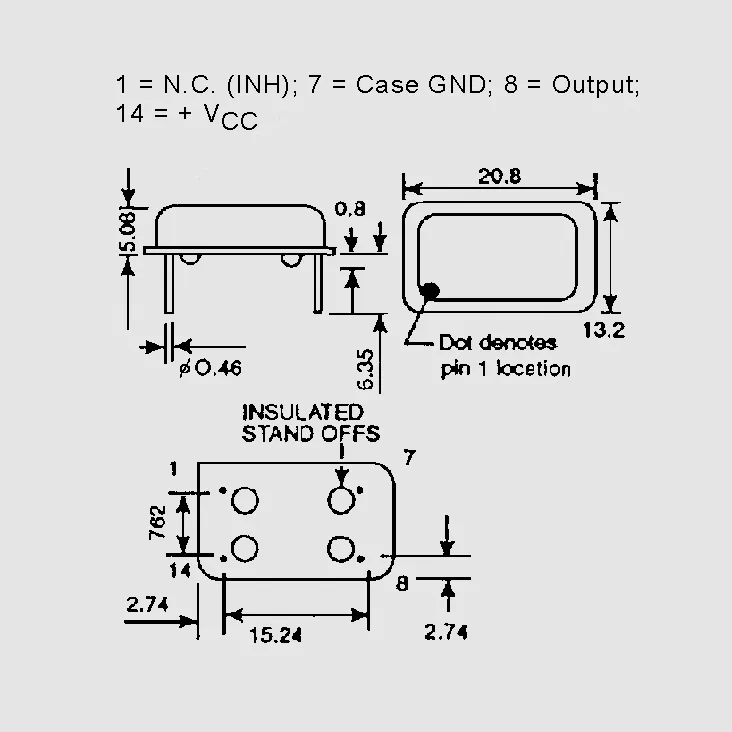

Oscillator 13,5168MHz DIL14 CMOS/TTL
Varenummer:
118-425
Varekode: QOM013,5168
Vægt: 4 g
3 stk.
på lager
| Features |
| • Suitable for CMOS and TTL • Consisting of piezoelectric resonator and oscillator circuit • High reliability due to hermetically sealed metal housing |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||
| Frequency Range: | 1,843MHz...64MHz | Frequency Stability: | �100ppm | Temperature Range: | 0...+70°C | Storage Temperature: | -55...+125°C | Operating Voltage [VDD]: | 5� 0,5V DC | Current Requirement, Max. | 1,843...20MHz: | 20mA | 24...40MHz: | 30mA | 50MHz: | 60mA | Symmetry at 50% VDDtight: | 45...55% | Output Voltage, Max. | "1"-Level: | +4,5V(90% VDD) | "0"-Level: | +0,5V(10% VDD) | Output Load: | 15pF Typ. or 10 TTL Max. | ||||
|
|||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| Abundance http://www.aeccrystal.com |
|
SCO-010 QO 105 BIC
