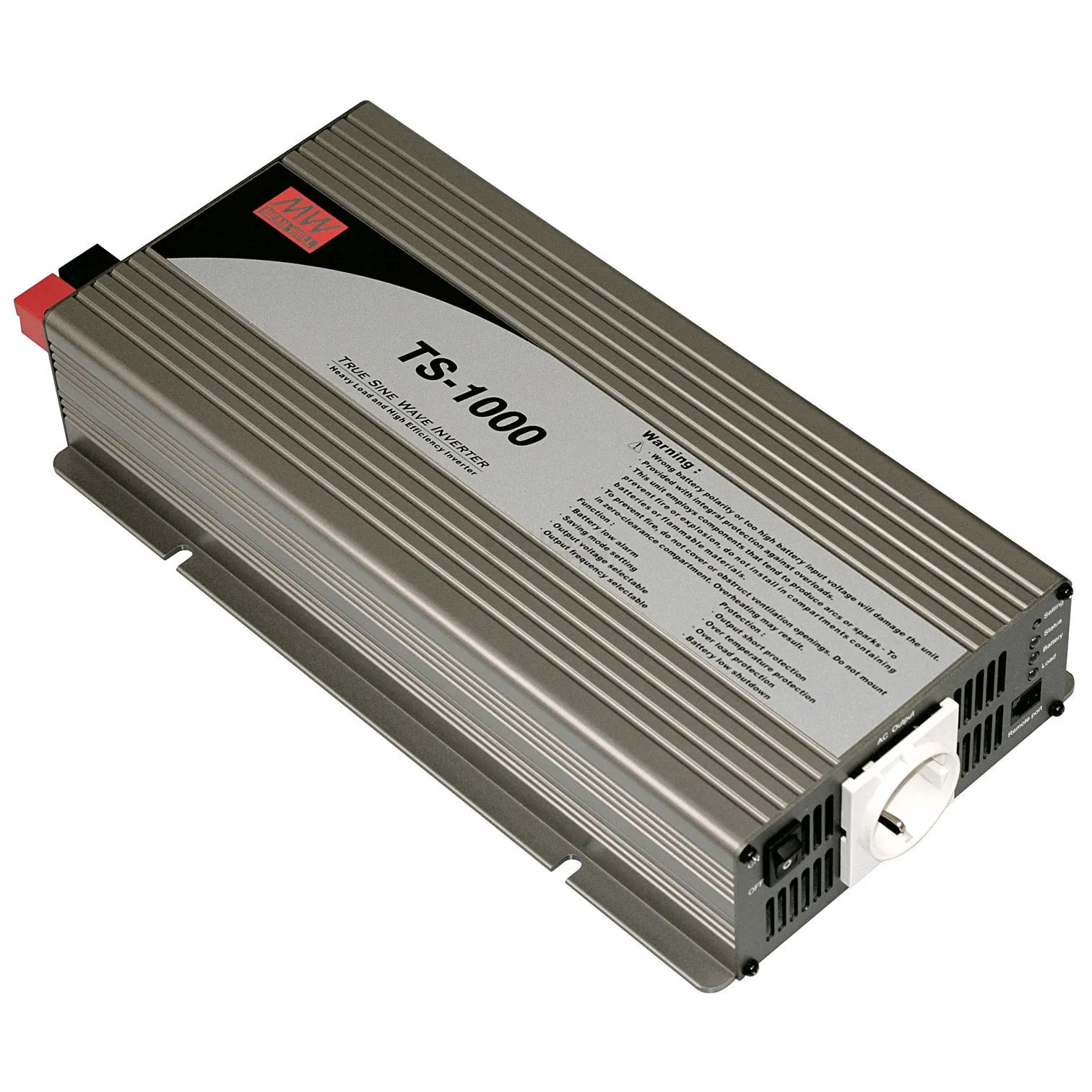

DC/AC-Inverter 12V/230V 1000W REN SINUS
MEANWELL DC/AC Vekselretter / Inverter, 24V/230V, 1000W, Ren sinus
- Ægte sinusbølgeudgang (THD
- Tænd/sluk-knap
- Driftsstatus på frontpanel
- Alarm for lavt batteriniveau, nedlukning af lavt batteriniveau
- Indbygget ventilator On/Off kontrolfunktion
Beskyttet mod:
- overspænding
- overtemperatur
- overbelastning
- output short/input reverse
- omvendt polaritet
Udgang: 200/220/230/240V AC
Output Voltage Tolerance: ±3%
Output Frequency: 50Hz ±0,1%
Output Rated Power: 1000W
Output Power, Max.: 1150W/180s
1500W/10s
Output Surge Power: 2000W/30 Cycles
Wave Form: True Sine, THD Operating Temperature:
100% Load: 0...+40°C
50% Load: 0...+60°C
Weight: 4300g
Input Voltage Range 42...60 V
Input Current: 25 A
Battery Low Alarm: 45±4% V
Battery Shutdown: 42±4% V
Efficiency: 92 %
MEANWELL DC/AC Converters
