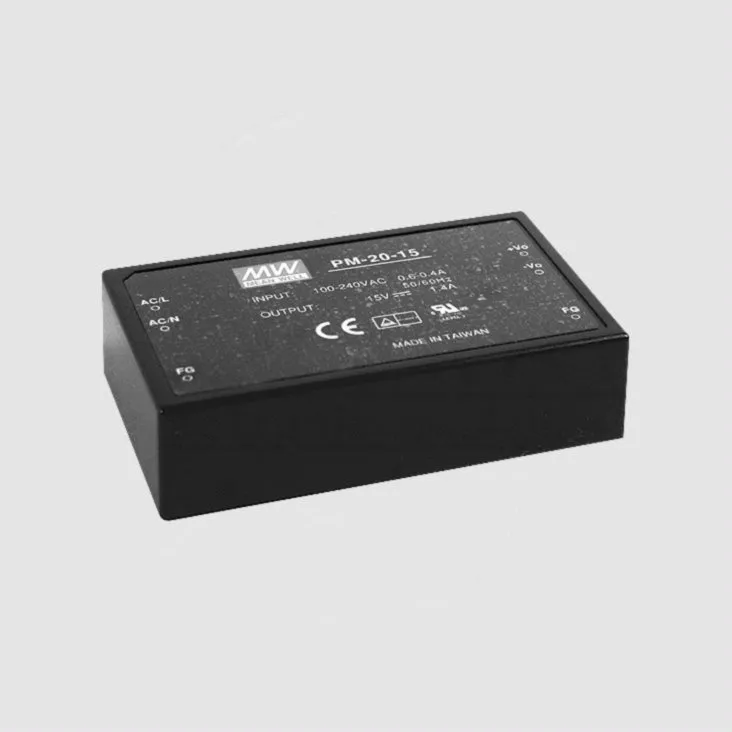

SPS Module 21W 15V/1,4A
Varenummer:
105-804
Varekode: PM-20-15
Vægt: 187 g
0 stk.
på lager
Gruppe:
L7857
MEANWELL AC/DC Converter Modules
Series: PM-20
Enclosed Type, Single Output
Output: 14 to 22W
MEANWELL AC/DC Converter Modules
Series: PM-20
Enclosed Type, Single Output
Output: 14 to 22W
| Features |
| Enclosed type for PCB mounting Universal input Overload protection, pulsing hiccup shutdown, auto recovery Protections: short circuit and over load EN60601-1 compliant Low no load power consumption |
 |
| Technical Specifications |
| |
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 65A |
| Leakage Current, Max.: | 0,2mA |
| No Load Power Consumption, Max.: | 0,75W |
| Over Load Protection: | >105% |
| Withstand Voltage | |
| I/P-O/P: | 4000V AC |
| I/P-FG: | 1500V AC |
| O/P-FG: | 1500V AC |
| Operating Temperature: | -20...+60C |
| Weight: | 180g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
| |
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| PM-20-3.3 | 3,3 | 0...4,5 | 14,85 | 3 | 80 | 71 |
| PM-20-5 | 5 | 0...4,4 | 22 | 2 | 80 | 75 |
| PM-20-12 | 12 | 0...1,8 | 21,6 | 2 | 150 | 81 |
| PM-20-15 | 15 | 0...1,4 | 21 | 2 | 150 | 83 |
| PM-20-24 | 24 | 0...0,92 | 22,08 | 2 | 240 | 84 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
| ||||||
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.meanwell.com |
|
