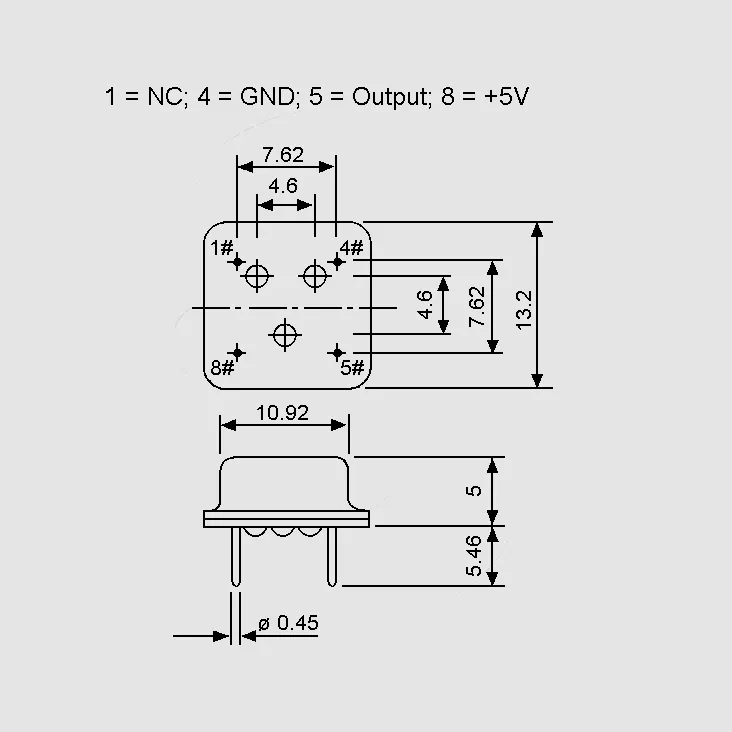

• Suitable for CMOS and TTL
• Consisting of piezoelectric resonator and oscillator circuit
• High reliability due to hermetically sealed metal housing
|
 |
|
|
|
Frequency Range:
|
2,24576MHz...40MHz
|
Frequency Tolerance:
|
±100ppm
|
Operating Temperature:
|
-20...+70°C
|
Storage Temperature:
|
-55...+125°C
|
Operating Voltage (VDD):
|
5V DC
|
Current Requirement, Max.
|
1,843...21,9MHz:
|
15mA
|
22...49,9MHz:
|
30mA
|
Symmetry at 50% VDDtight:
|
45...55%
|
Rise Time/Fall Time
|
1,843...20MHz:
|
10ns
|
24...64MHz:
|
6ns
|
Output Voltage, Max.
|
"1"-Level:
|
+4,5V(90% VDD)
|
"0"-Level:
|
+0,5V(10% VDD)
|
Output Load:
|
15pF Typ. or 1...10 TTL Max.
|
|
|
