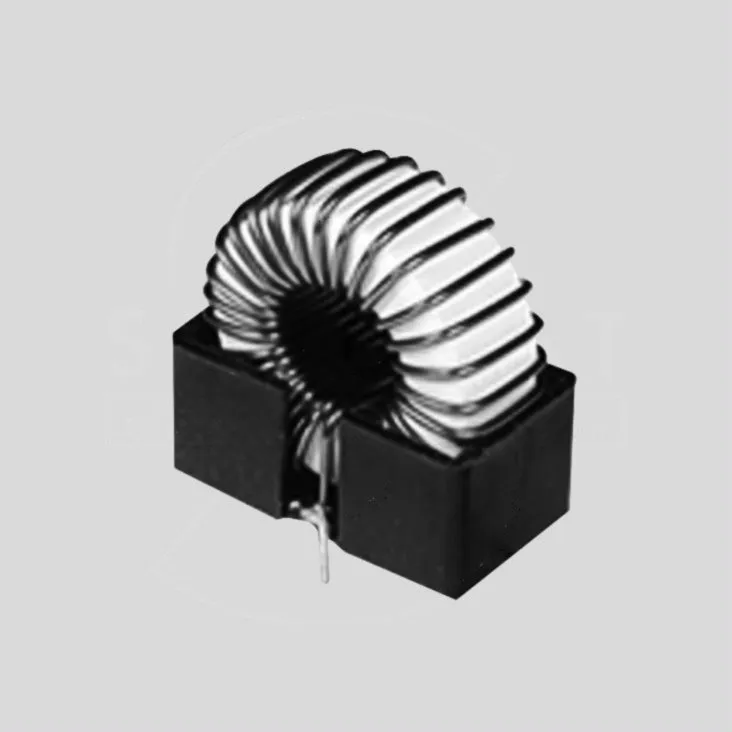

Choke 25uH 3A (L41)
Varenummer:
103-125
Varekode: SHC25
Vægt: 6 g
0 stk.
på lager
Specifikationer
| Strøm, max. | 3 A |
|---|---|
| Induktans | 25 µH |
Gruppe:
D2516
TALEMA Inductors for 150kHz Switching Regulators from NSC
Series: SHC
Vertical Clip
TALEMA Inductors for 150kHz Switching Regulators from NSC
Series: SHC
Vertical Clip
| Features |
| For 150kHz Simple SwitcherTM Excellent stability High level of stored energy with low dissipation |
 |
| Technical Specifications |
| Part Nr. | IN | LN | RDC | E | National |
| [A] | [µs] | W | [µJ] | Designation | |
| SHC25 | 3,00 | 25 | 0,04 | 113 | LM-259X-L41 |
| SHC53 | 3,00 | 53 | 0,08 | 239 | LM-259X-L39 |
| SHC114 | 2,22 | 114 | 0,10 | 281 | LM-259X-L37 |
| IN = Rated Current, L0 = Inductance, No Load, RDC = DC Resistance, E = Stored Energy | |||||
| |||||
| Dimensions |
| Part Nr. | C | D | E | X |
| [mm] | [mm] | [mm] | [mm] | |
| SHC25 | 16,5 | 11,4 | 7,60 | 2,80 |
| SHC53 | 21,0 | 11,4 | 7,60 | 2,80 |
| SHC114 | 21,0 | 11,4 | 7,60 | 2,80 |
| Tolerance ±0,25mm | ||||
| ||||
| Note |
| You will find suitable switching regulators in product groups B5285 and B5295. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.talema.de |
|
Inkl. moms
v/10
Kr. 22,23
- v/25 – Kr. 18,52
- v/100 – Kr. 14,81
- v/1000 – Kr. 11,11
Produktfiler
