Tamiya stiksæt 4,5mm 3-POL/1 Række
Varenummer:
99-975
Varekode: EL4.5-3P MULTISTIK
Vægt: 16 g
787 stk.
på lager

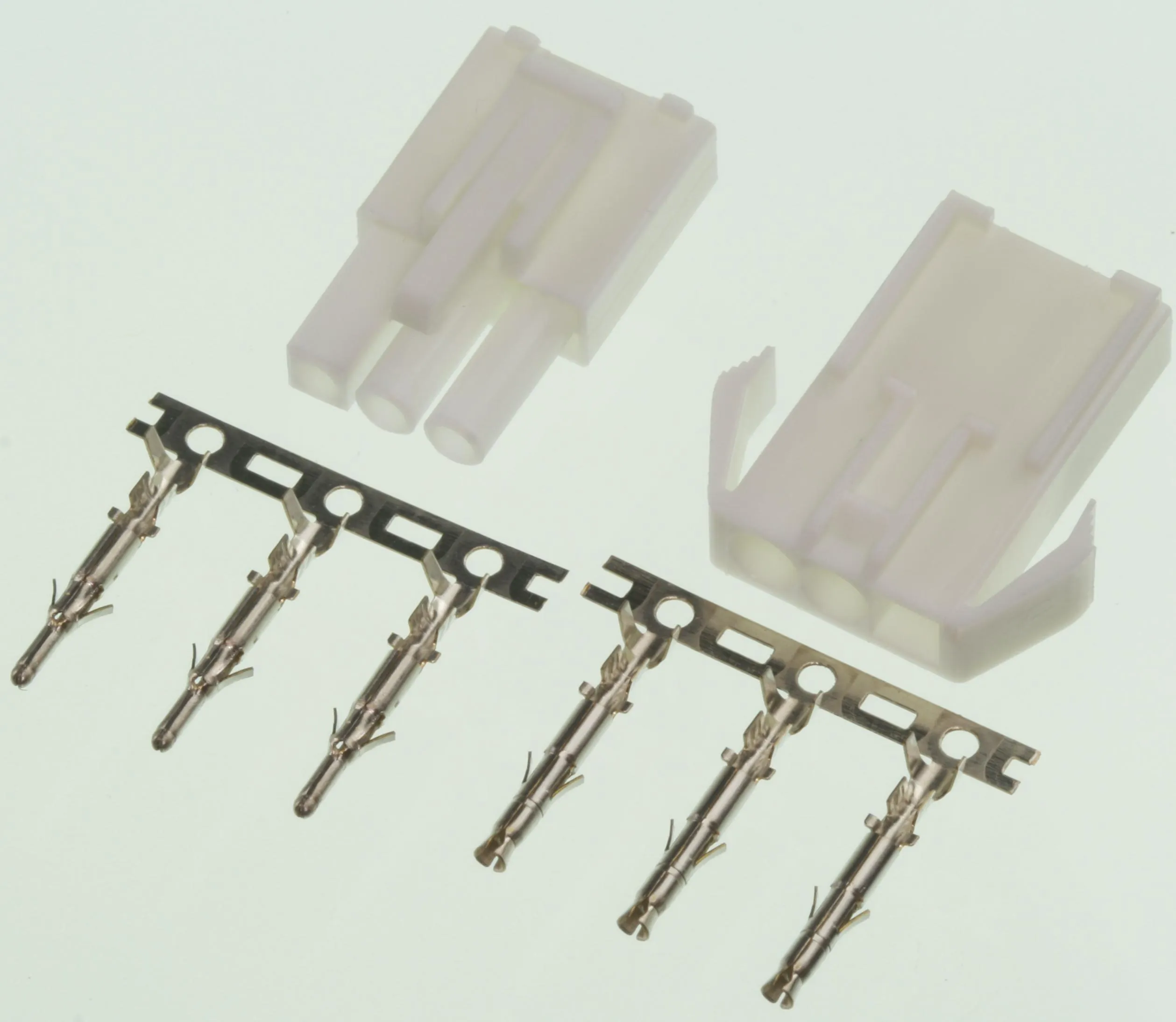

Posen indeholder 1 x han hus, 1 x hun hus, 3 x han indsatser og 3 x hun indsatser til 1 stk. komplet 3-pol stikforbindelse.
Technical parameters:
Spacing: 4.5
Applicable wire: AWG # 26 ~ # 16
Rated voltage: 300V DC / AC (RMS)
Rated current: 6.0 ~ 10.0A
Withstand voltage: 1500V AC (rms)
Working temperature: -25 ~ + 85
Insulation resistance: ≥1500MΩ
Contact resistance: ≤0.015Ω
Spacing: 4.5
Applicable wire: AWG # 26 ~ # 16
Rated voltage: 300V DC / AC (RMS)
Rated current: 6.0 ~ 10.0A
Withstand voltage: 1500V AC (rms)
Working temperature: -25 ~ + 85
Insulation resistance: ≥1500MΩ
Contact resistance: ≤0.015Ω
