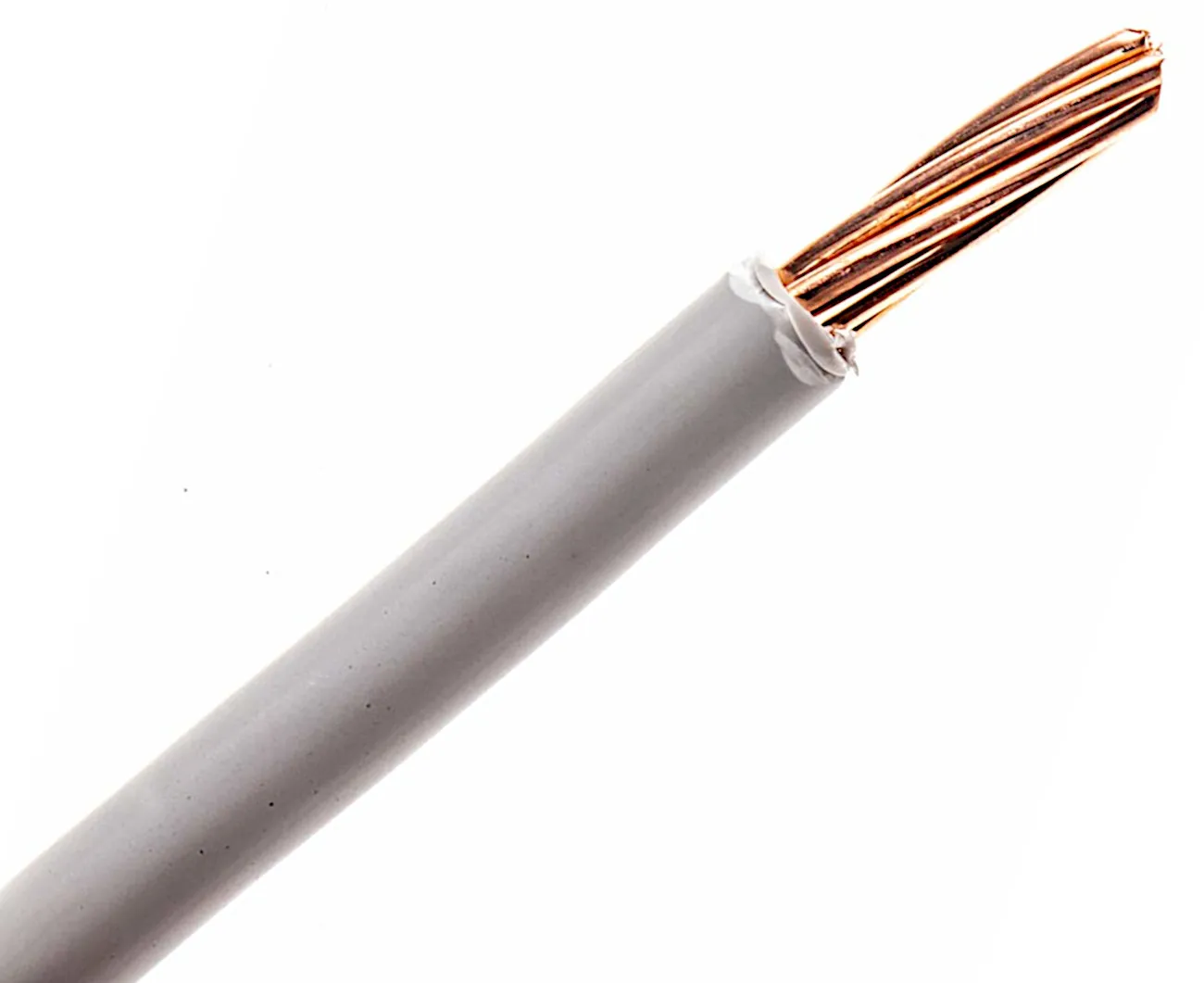

PVC-ledning H07V-K 1,5mm² Grå

Varenummer: 99-511
Varekode: H07VK150GR
Vægt: 20 g
178 stk. på lager
Vis lignende produkter i kategorien "1,5#"

Harmonized PVC stranded hook-up wires
• For internal wiring of devices
• Being used to wire lighting, tubes, surfaces and concealed installations for signal systems
• Stranded copper wire conductor according to VDE 0295 class 5
• Insulated with PVC TI 1 according to HD 21.1 S3
• Conductor identification meets VDE 0293

Outer Diameter: 3,03mm
Rated Voltage, UO / U: 450V/700V
Test Voltage: 2500V
Conductor Cross-Section: 1,5mm2
Conductor Composition: 32x0,235mm
Minimum Bend Radius: 4 x Diameter
Temperatue Range:
Fixed Installation:
-40...+70°C
At Installation:
+5...+70°C

Inkl. moms
Kr. 8,25
  • v/10 – Kr. 5,75
  • v/100 – Kr. 3,75
