N-DARL 160V 10A 100W 55MHz TO-3P
Varenummer:
98-174
Varekode: 2SD2390
Vægt: 6 g
62 stk.
på lager
Bestil nu for afsendelse i morgen
- DARLINGTON TRANSISTOR, TO-3P
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 150V
- Power Dissipation Pd: 100W
- DC Collector Current: 10A
- DC Current Gain hFE: 5000

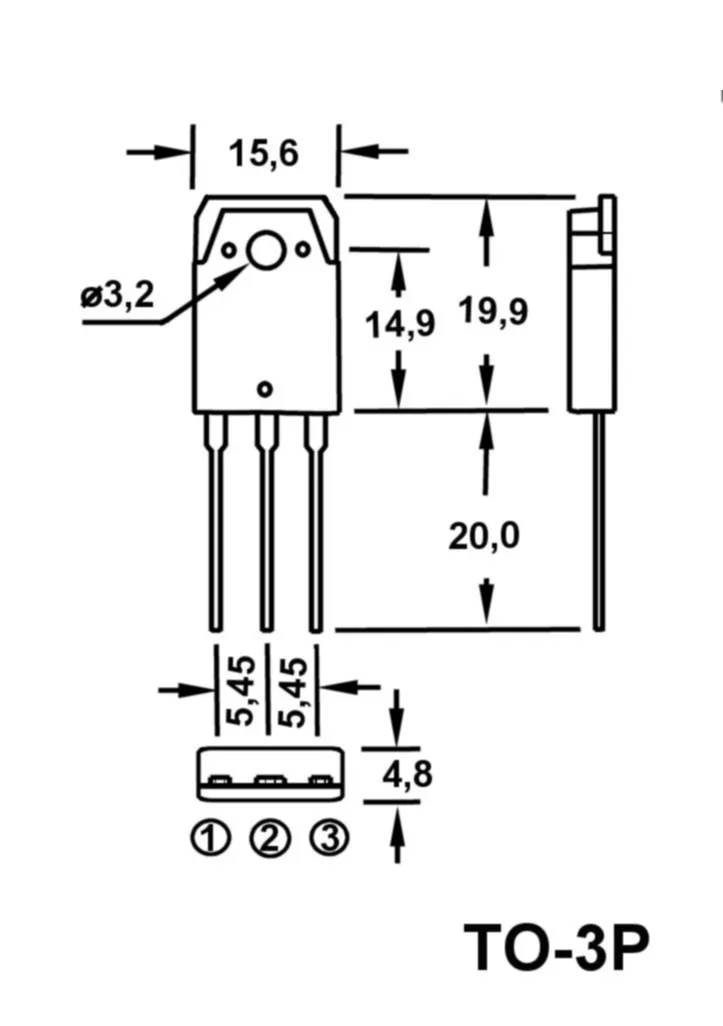

- Transistor Case Style: TO-3P
- No. of Pins: 3
- Av Current Ic: 10A
- Collector Emitter Voltage Vces: 2.5V
- Continuous Collector Current Ic Max: 10A
- Current Ic Continuous a Max: 10A
- Current Ic hFE: 7A
- Device Marking: 2SD2390
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 55MHz
- Hfe Min: 5000
- No. of Transistors: 1
- Package / Case: TO-3P
- Power Dissipation Pd: 100W
- Power Dissipation Ptot Max: 100W
- Termination Type: Through Hole
- Transistor Type: Darlington
- Voltage Vcbo: 160V
