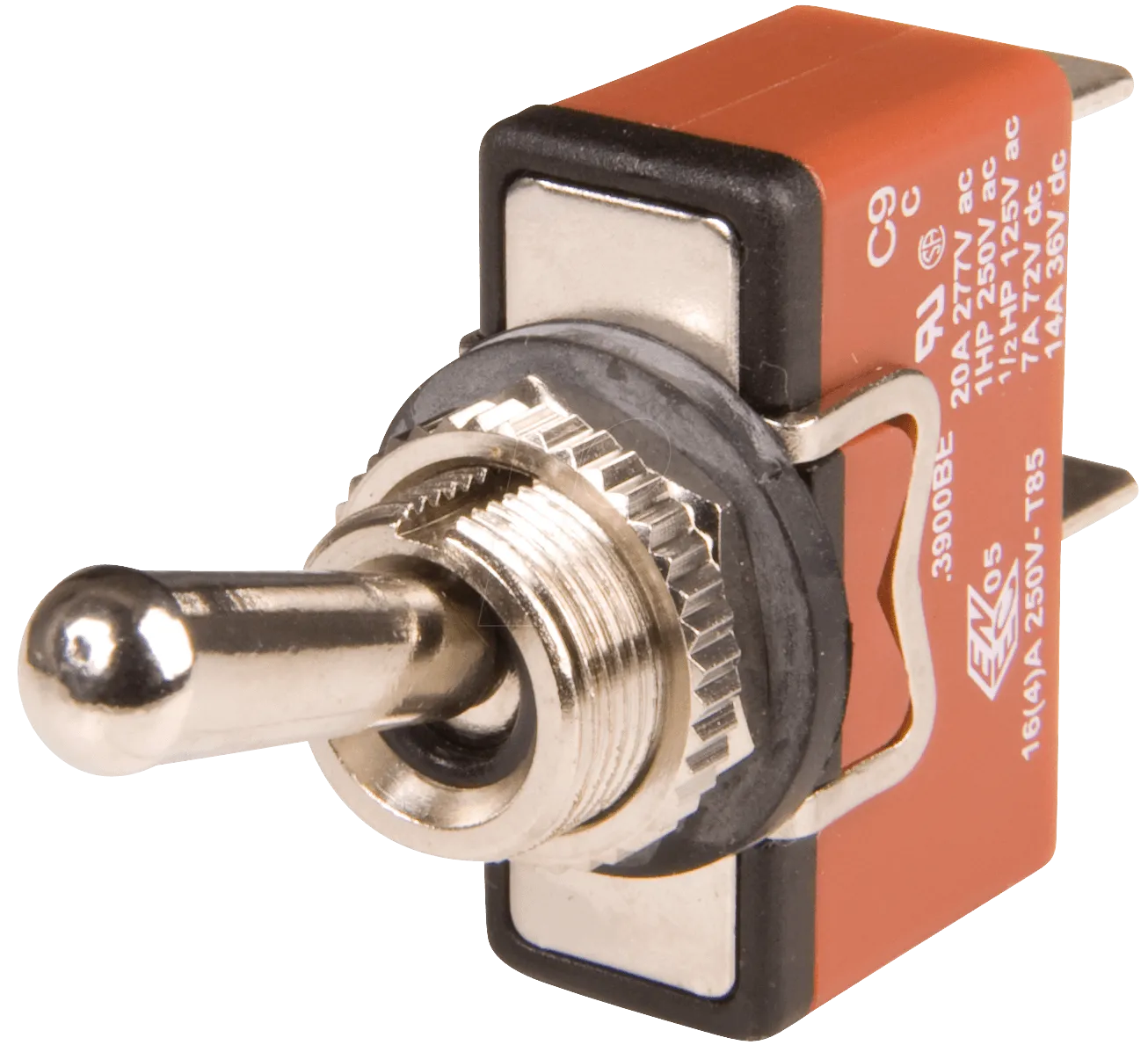

Switch 1-pol 10A moment ON/OFF/(ON) Forseglet
Varenummer:
95-771
Varekode: C3921BEAAA
Vægt: 23 g
1 stk.
på lager
Gruppe:
E2317
ARCOLECTRIC Toggle Switches
Series: 3900
With Metal Lever, IP67
Panel Cut-out: 10,8mm
Inrush Current: 10A/16A
E2317
ARCOLECTRIC Toggle Switches
Series: 3900
With Metal Lever, IP67
Panel Cut-out: 10,8mm
Inrush Current: 10A/16A
| Features |
| Single pole leverswitch IP67 sealed from panelside For central mounting 6,3mm solderterminals Metal lever Ratet up to 250V/10A (C3900BE: 16A) Lever protection cap R17-GUARD available |
 |
| Selection Table |
| Part Nr. | Function |
| C3900BE | SPST |
| C3910BE | SPDT |
| C3920BE | 1xOn-Off-On |
| C3921BE | 1xOn-Off-(On) |
| C3922BE | 1x(On)-Off-(On) |
| R17-10GUARD | Lever Protection Cap |
| |
| Technical Specifications |
| |
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 10A |
| Switching Current C3900BE, Max.: | 16A |
| Switching Current at Inductive Load, Max.: | 4A |
| Ambient Temperature, Max.: | 85C |
| Insulation Resistance: | >20MW |
| Contact Resistance | |
| (New State, 12V DC/1A): | 100mW |
| Soldering Conditions (Hand Solder): | 350C/6s |
| Materials | |
| Shell: | Nylon 6.6 |
| Lever: | Brass, Nickel-plated |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
| |
| Panel Cut-out |
| Wall Strength | Cut-out | |
| [mm] | [mm] | |
| 4,0 | 10,8 | |
| ||
| Approvals |
 05: 10 (4)A, 250Vac, T85  16A 125/277Vac 7A 72Vdc, 14A 36Vdc 250Vac 1hp, 125Vac 1/2hp 85C, file E45221, file LR10990 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.arcolectric.com |
|
