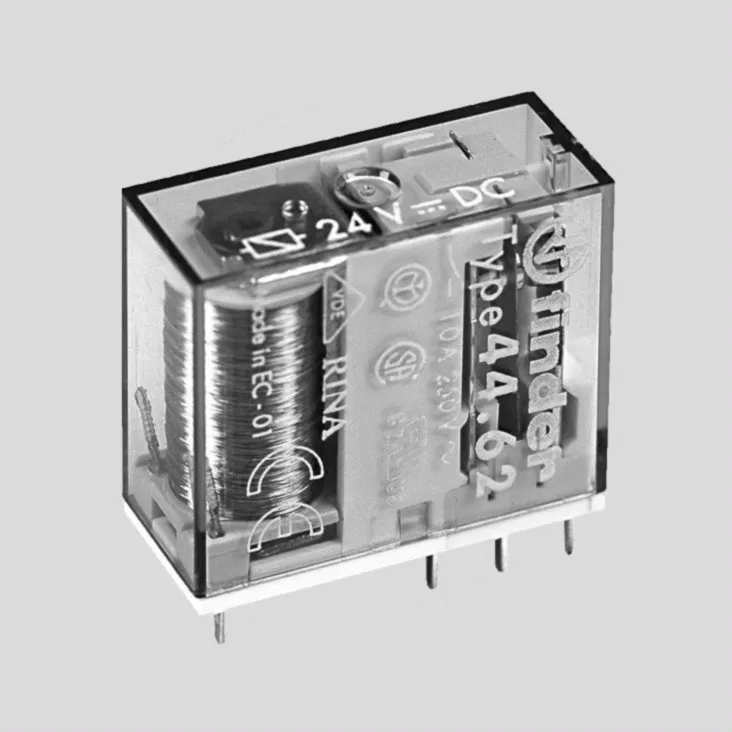

Relay DPDT 10/20A 24V 900R AgNi 44.62.9.024.0000
Varenummer:
93-192
Varekode: F4462-24
Vægt: 19 g
0 stk.
på lager
Gruppe: E6455
FINDER PCB Relays
Series: 44.62
Contact: DPDT
Rated Current: 10A
Housing: 29,0x12,4x25,0mm
FINDER PCB Relays
Series: 44.62
Contact: DPDT
Rated Current: 10A
Housing: 29,0x12,4x25,0mm
| Features |
| Contact rating up to 10A, 250V AC Insertion for secure separation between coil and contacts (see Norm) High insulation resistance between the switching contacts, ideal for switching various voltages Relay protection class RTII |
 |
| Technical Specifications |
|
|
| Contact: |
DPDT |
| Contact Material |
|
| F4462_: |
AgNi |
| F4462_C: |
AgSnO2 |
| Rated Current: |
10A |
| Max. Switching Current: |
20A |
| Max. Switching Voltage: |
400V AC |
| Max. Switching Power: |
2500VA |
| Creepage/Clearance: |
8/8mm |
| Operate/Release Time: |
8/5ms |
| Testing Voltage |
|
| Coil/Contact: |
6000V |
| Opening Contact: |
1000V |
| Lifetime |
|
| Mechanical: |
20x106 Operations |
| Electrical: |
10x104 Operations |
| Operating Temperature: |
-40...+85°C |
|
|
| Coil Data |
| Part Nr. |
UN |
Umin. |
Umax. |
IN |
PN |
RN |
| [V DC] |
[V] |
[V] |
[mA] |
[mW] |
[W] |
|
| F4462-12_ | 12 |
8,8 |
18 |
55 |
650 |
220 |
| F4462-24_ | 24 |
17,5 |
36 |
27 |
650 |
900 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C |
||||||
|
||||||
| Note |
| Assembly by direct soldering into the PCB or PCB socket F95152 with retaining clip F9551SW resp. F95523, see product group E6481, or DIN rail socket F95853 resp. F95953 with retaining clip F95913, see product group E6485 |
|
| Norms |
| The series complies with VDE0160/EN50178 and VDE0700/EN60335 secure separation between coil and contacts. |
|
| Labelling |
 |
|
| Approvals |
     |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
