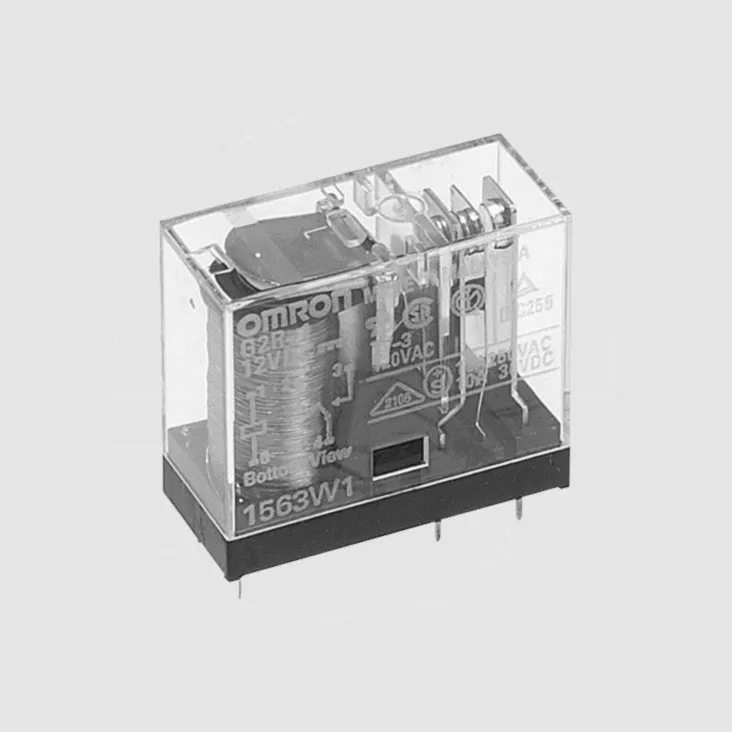

Relay SPDT 10A 24V 1100R
Varenummer:
93-186
Varekode: G2R-1 24DC
Vægt: 17 g
16 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 6290 stk. kan skaffes mandag d. 9/11
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Spolespænding | 24 V |
| Spolemodstand | 1.1 kΩ |
| Mærkestrøm | 10 A |
Gruppe:
E6412
OMRON Power PCB Relays
Series: G2R
Contact: SPDT
Rated Current: 10A
Housing: 29,0x13,0x25,5mm
E6412
OMRON Power PCB Relays
Series: G2R
Contact: SPDT
Rated Current: 10A
Housing: 29,0x13,0x25,5mm
| Features |
| • Flux protection • Sensitive coil: 530mV |
 |
| Technical Specifications |
| |
| Contact: | SPDT (Round Contact) |
| Contact Material: | AgSnIn |
| Rated Current: | 10A |
| Max. Switching Voltage: | 380V AC / 125V DC |
| Max. Switching Power: | 2500VA |
| Creepage/Clearance: | 8/8mm |
| Operate/Release Time (AC/DC): | 15/10(5)ms |
| Testing Voltage | |
| Coil/Contact: | 5000V AC |
| Contact/Contact: | 1000V AC |
| Lifetime | |
| Mechanical (AC/DC): | 10x106 / 20x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+70°C |
| Weight Approx.: | 17g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb | IN | PN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [mW] | [W] | |
| G2R1-12A | 12 | 20,4 | 8,4 | 1,8 | 43,6 | 530 | 275 |
| G2R1-24A | 24 | 40,8 | 16,8 | 3,6 | 21,8 | 530 | 1100 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage (70°C), UAn = Operate Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||
| |||||||
| Note |
| • Assembly by direct soldering in the PCB or • PCB socket F95132 with retaining clip F9551SW rather F95523, see product group E6481, or • DIN rail socket F95833 with retaining clip F95913, see product group E6485 |
|
| Norms |
| Conform to EN61810-1, UL508 and CSA22.2 |
|
| Approvals |
      |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.europe.omron.com |
|
Inkl. moms
Kr. 32,50
- v/10 – Kr. 29,06
- v/25 – Kr. 26,72
- v/100 – Kr. 23,12
- v/1000 – Kr. 19,53
Produktfiler
