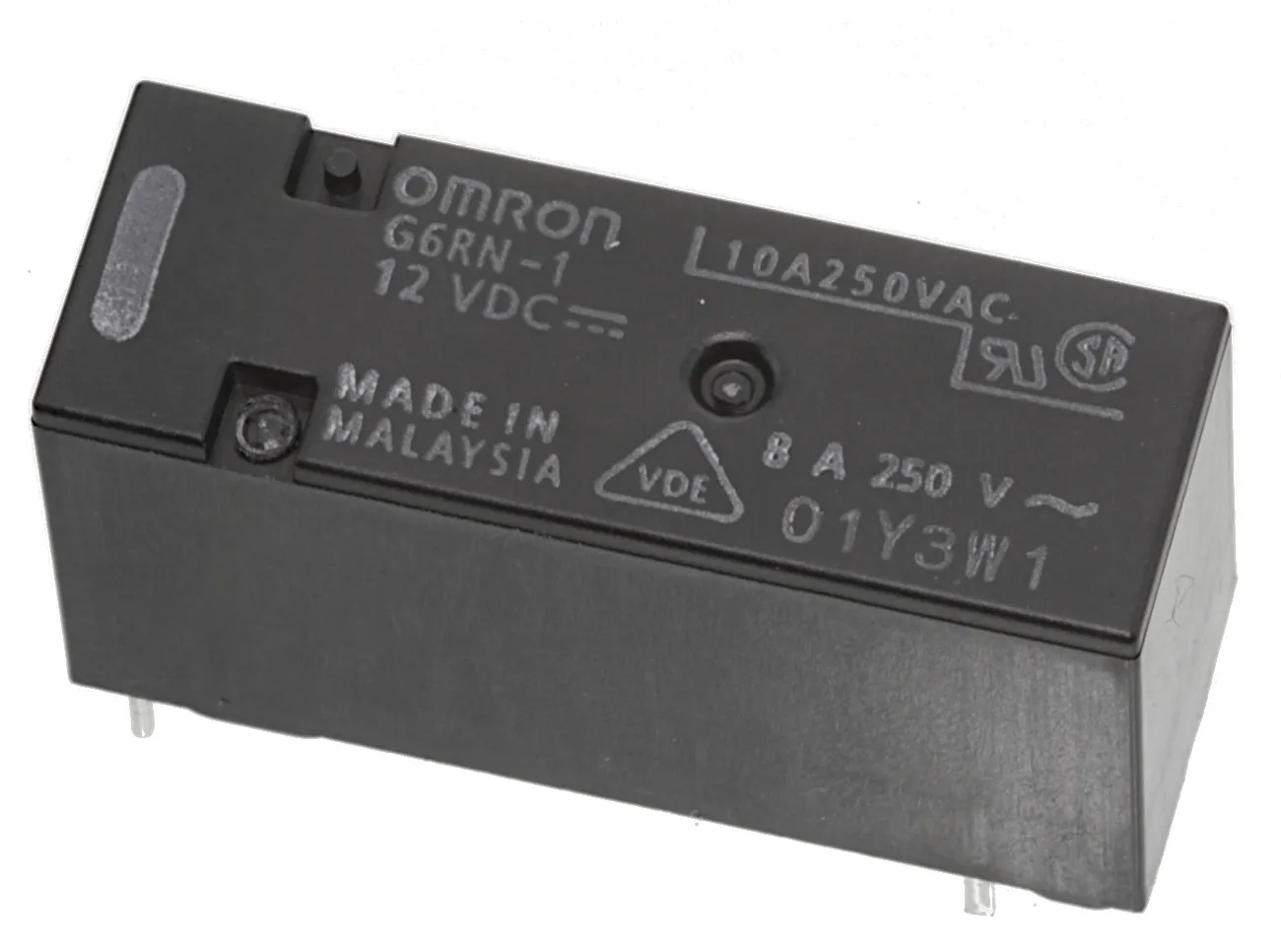

1 x skifte relæ 12VDC 8A 655R P3,2
Varenummer:
93-168
Varekode: G6RN1-12
Vægt: 10 g
9 stk.
på lager
Specifikationer
| Relæ kontakt | SPDT |
|---|---|
| Mærkestrøm | 8 A |
| Spolemodstand | 655 Ω |
| Spolespænding | 12 V |
Gruppe:
E6355
OMRON Power PCB Relays
Series: G6RN
Contact: SPDT
Rated Current: 8A
Housing: 28,5x10,0x14,5mm
E6355
OMRON Power PCB Relays
Series: G6RN
Contact: SPDT
Rated Current: 8A
Housing: 28,5x10,0x14,5mm
| Features |
| Wash tight design with ventilation Protection class II, according to VDE0106 Part 1 Insulation class C/250, B/380 according to VDE0110 Conforms to EN61810-1 Strengthened insulation for domestic appliances etc. |
 |
| Technical Specifications |
| |
| Contact: | SPDT (Round Contact) |
| Contact Material: | AgNi+Au (0,35µm) |
| Rated Current: | 8A |
| Max. Switching Current (AC/DC): | 8A / 5A |
| Min. Switching Current: | 10mA (5V DC) |
| Max. Switching Voltage: | 250V AC / 30V DC |
| Max. Switching Power: | 2000VA / 150W |
| Creepage/Clearance: | 8mm |
| Operate/Release Time: | 6/3ms |
| Testing Voltage | |
| Coil/Contact: | 4000V AC |
| Contact/Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+85C |
| Weight Approx.: | 9g |
| |
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb | IN | PN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [mW] | [W] | |
| G6RN1-12 | 12 | 13,2 | 8,4 | 1,2 | 18,3 | 220 | 655 |
| G6RN1-24 | 24 | 26,4 | 16,8 | 2,4 | 9,2 | 250 | 2620 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage (85C), UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; Specifications Measured at 23C | |||||||
| |||||||
| Approvals |
   |
|
| Additional Products |
| Relays with 5, 9, 18, 36 and 48V on request up to 500 pieces, delivery time approx. 12 weeks |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.europe.omron.com |
|
Inkl. moms
Kr. 29,00
- v/10 – Kr. 25,00
- v/25 – Kr. 22,50
- v/100 – Kr. 19,00
- v/500 – Kr. 12,50
