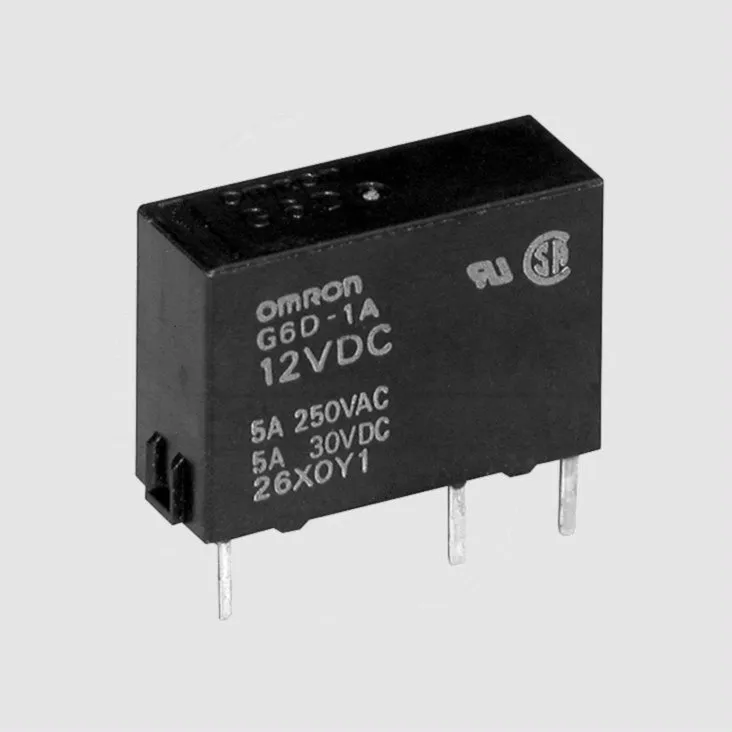

Relay SPST 5A 12V 720R
Varenummer:
93-145
Varekode: G6D-1A-ASI-12DC
Vægt: 3 g
24 stk.
på lager
Gruppe: E6317
OMRON Power PCB Relays
Series: G6D
Contact: SPST-NO
Rated Current: 5A
Housing: 17,5x6,5x12,5mm
| Features |
| • Compact design with high switching current 5A • Washable construction |
 |
| Technical Specifications |
|
|
| Contact: | SPST-NO |
| Contact Material: | AgSnIn |
| Rated Current: | 5A |
| Max. Switching Current: | 5A |
| Max. Switching Voltage: | 250V AC / 30V DC |
| Max. Switching Power: | 1250VA / 150W |
| Operate/Release Time: | 10/5ms |
| Testing Voltage | |
| Coil/Contact: | 3000V AC |
| Contact/Contact: | 750V AC |
| Lifetime | |
| Mechanical: | 20x106 Operations |
| Electrical: | 70x103 Operations |
| Operating Temperature: | -25...+70°C |
| Weight Approx.: | 3g |
|
|
| Coil Data |
| Part Nr. | UN | Umax. | UAn | UAb | IN | PN | RN |
| [V DC] | [V] | [V] | [V] | [mA] | [mW] | [Ohm] | |
| G6D1A-5A | 5 | 8,0 | 3,5 | 0,5 | 40 | 200 | 125 |
| G6D1A-12A | 12 | 19,2 | 8,4 | 1,2 | 16,7 | 200 | 720 |
| G6D1A-24A | 24 | 38,4 | 16,8 | 2,4 | 8,3 | 200 | 2880 |
| UN = Rated Voltage, Umax. = Maximum Operating Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||
|
|||||||
| Approvals |
  |
