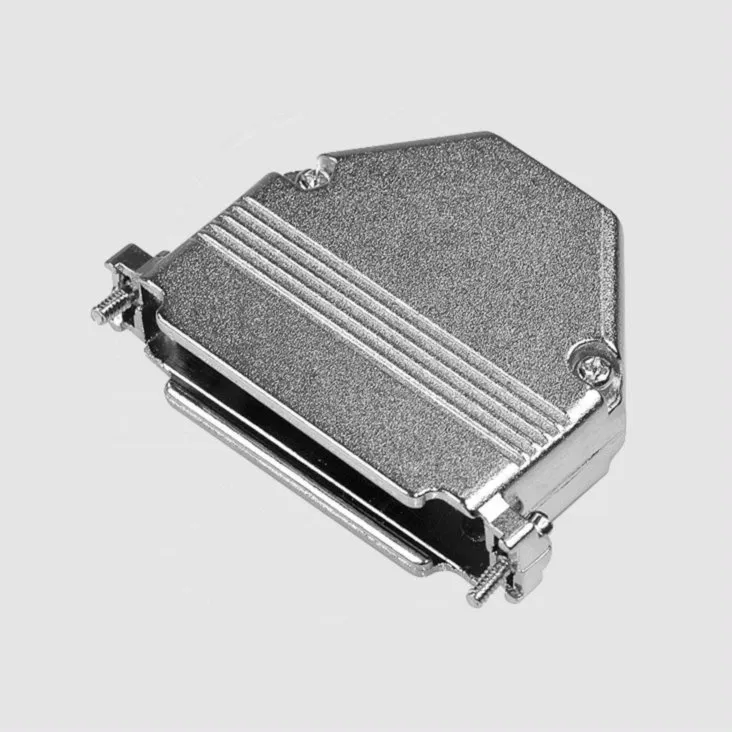

Metal-D-Sub-Hood 25-Pole (Tung metal)
Varenummer:
93-077
Varekode: CME25G
Vægt: 68 g
215 stk.
på lager
Gruppe:
F4785
D-Sub Metal Backshells
Series: CME_G
Low Cost, Straight Cable Exit
Features
| • EMV complete metal hood for D-Sub connectors • Retaining screws UNC4-40 • Zinc die casting with silver surface |
| Dimensions |
| Part Nr. | Nr. of Poles | A | B | C | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| CME09G | 09 | 31,0 | 24,99 | 47,2 | 19,8 | 15,5 |
| CME15G | 15 | 40,2 | 33,32 | 48,3 | 27,5 | 16,0 |
| CME25G | 25 | 53,0 | 47,04 | 48,7 | 41,5 | 16,0 |
| CME37G | 37 | 69,0 | 63,5 | 48,7 | 58,0 | 20,8 |
 |
||||||
