Metal-D-Sub-Hood 45° 15-Pole

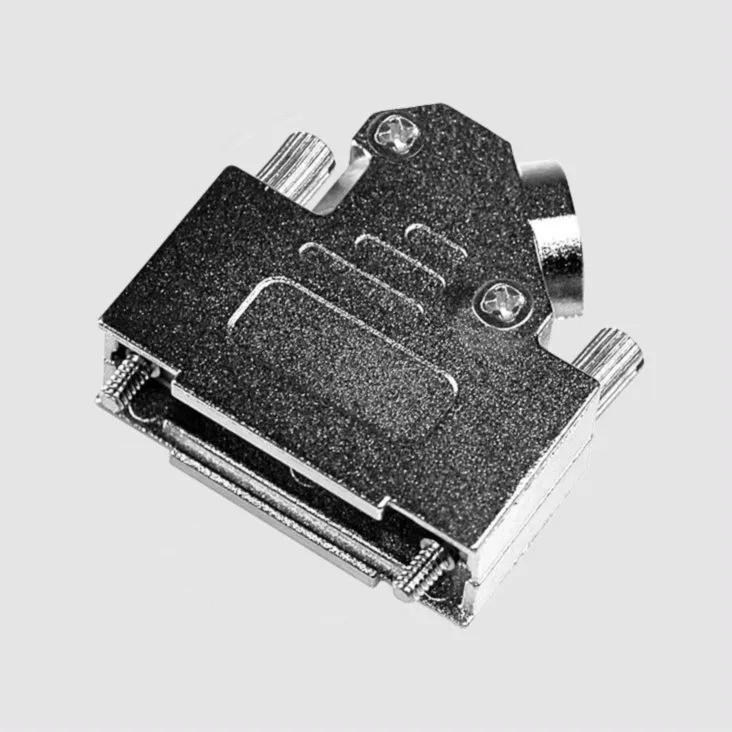

Name: Metal-D-Sub-Hood 45° 15-Pole
SKU: 93072
Price: 65.25 DKK
Availability: OutOfStock

Varenummer: 93-072

Varekode: CVM15S45

Vægt: 43 g

0 stk. på lager

Vis lignende produkter i kategorien "15-POLET (og HD26-pol)"

Gruppe: F4783
D-Sub Metal Backshells
Series: CVM_S45
Side Cable Entry

Features

EMV complete metal hood for D-Sub backshells
Two knurled thumb screws UNC4-40
Attenuation better than 40dB at 30MHz to 1GHz
Zinc die casting with silver surface
Cable diameter 4,0...13,0mm
Temperature range -40...+120C

Dimensions


Part Nr.	Nr. of Poles	A1	A	B	C	D	E	F
CVM_		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
09S45	09	12,7	-	31,0	19,3	29,8	31,2	36,2
15S45	15	-	33,3	39,5	20,7	29,8	35,2	42,2
25S45	25	-	47,0	53,2	20,8	29,8	35,2	42,2
37S45	37	-	63,5	69,7	20,8	29,8	35,2	42,2

Norms

In accordance with VDE 0871, FCC 20780 and EU standard 89/336 EEC

Terms of Delivery

Minimum order quantity: 1 PKU = 5 pieces
Delivery contents: supplied with screws

Manufacturer

Various

Inkl. moms

Kr. 65,25

v/10 – Kr. 48,94
v/25 – Kr. 40,78
v/100 – Kr. 32,62
v/1000 – Kr. 24,47
