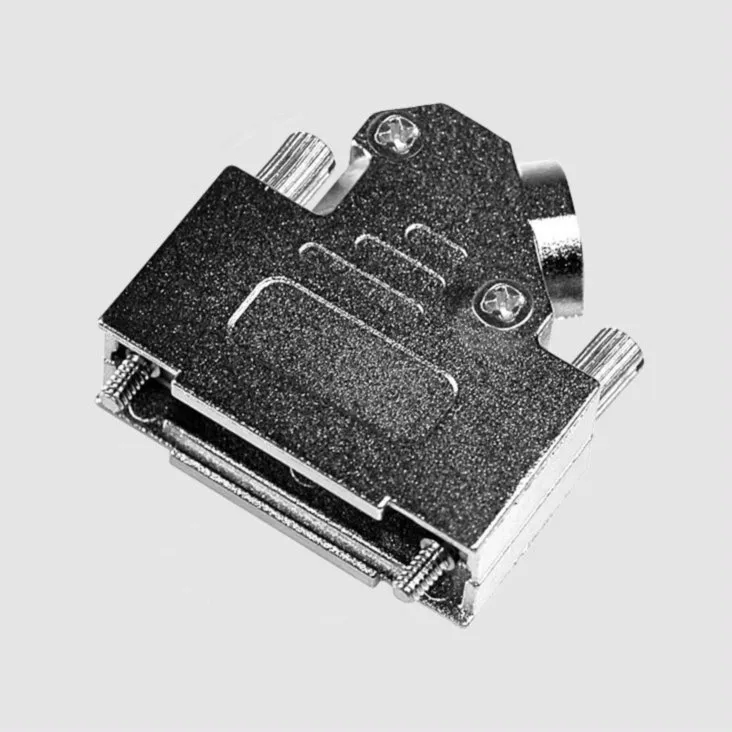

D-sub-hætte 9-pol metalhus m. fingerskruer 45°

Name: D-sub-hætte 9-pol metalhus m. fingerskruer 45°
SKU: 93071
Price: 61.69 DKK
Availability: OutOfStock

Varenummer: 93-071

Varekode: CVM09S45

Vægt: 38 g

0 stk. på lager

Vis lignende produkter i kategorien "9-POLET (og HD15-pol)"

Gruppe:
F4783
D-Sub Metal Backshells
Series: CVM_S45
Side Cable Entry

Features

• EMV complete metal hood for D-Sub backshells
• Two knurled thumb screws UNC4-40
• Attenuation better than 40dB at 30MHz to 1GHz
• Zinc die casting with silver surface
• Cable diameter 4,0...13,0mm
• Temperature range -40...+120°C

Dimensions


Part Nr.	Nr. of Poles	A1	A	B	C	D	E	F
CVM_		[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
09S45	09	12,7	-	31,0	19,3	29,8	31,2	36,2
15S45	15	-	33,3	39,5	20,7	29,8	35,2	42,2
25S45	25	-	47,0	53,2	20,8	29,8	35,2	42,2
37S45	37	-	63,5	69,7	20,8	29,8	35,2	42,2

Norms

In accordance with VDE 0871, FCC 20780 and EU standard 89/336 EEC

Terms of Delivery

Minimum order quantity: 1 PKU = 5 pieces
Delivery contents: supplied with screws

Manufacturer

Various

Inkl. moms

Kr. 61,69

v/10 – Kr. 46,27
v/25 – Kr. 38,55
v/100 – Kr. 30,84
v/1000 – Kr. 23,13
