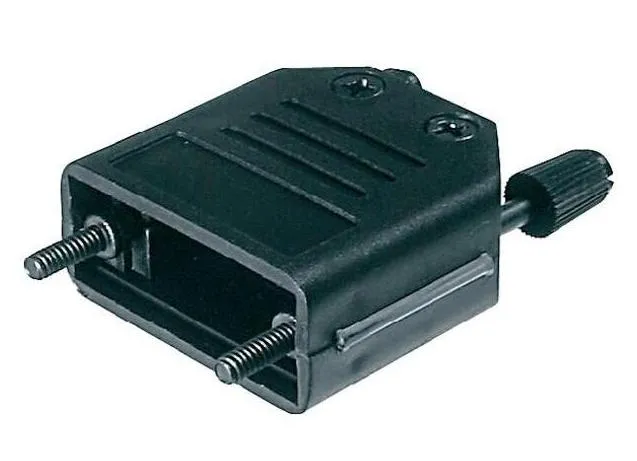

D-sub-hætte 9-pol m. fingerskruer lige
Varenummer:
93-067
Varekode: A-FT09/CGF9S
Vægt: 11 g
114 stk.
på lager
Gruppe:
F4775
D-Sub Plastic Backshells
Series: CGF_S
Flip-Top with UNC4-40 Thread
Features

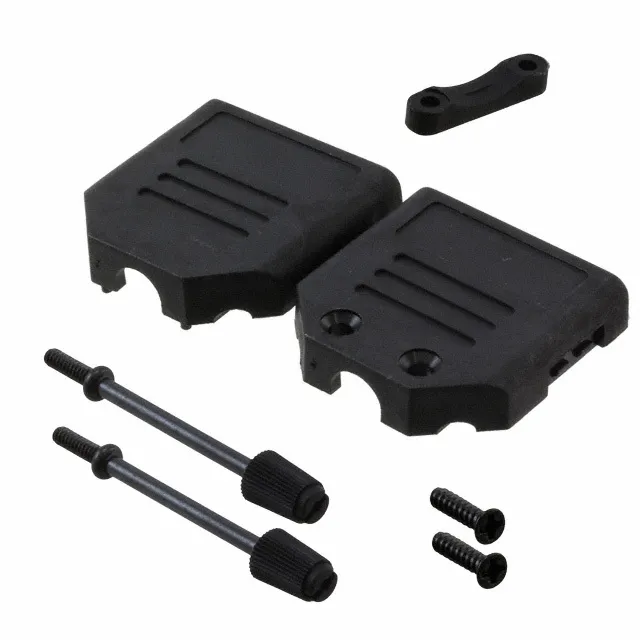

| • Two-piece hood, connected backshell • Fast assembly with snap-in shell halves • Screwable strain relief from the exterior • Two knurled thumb screws UNC4-40 |
 |
| Dimensions |
| Part Nr. | Nr. of Poles | A | B | C | D | E |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| CGF9S | 9 | 34,2 | 25,0 | 8,5 | 14,1 | 50,0 |
| CGF15S | 15 | 41,5 | 33,3 | 11,4 | 17,6 | 48,5 |
| CGF25S | 25 | 55,0 | 47,0 | 11,7 | 16,6 | 48,5 |
|
||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces Delivery contents: supplied with screws |
|
| Manufacturer |
| Assmann WSW |
