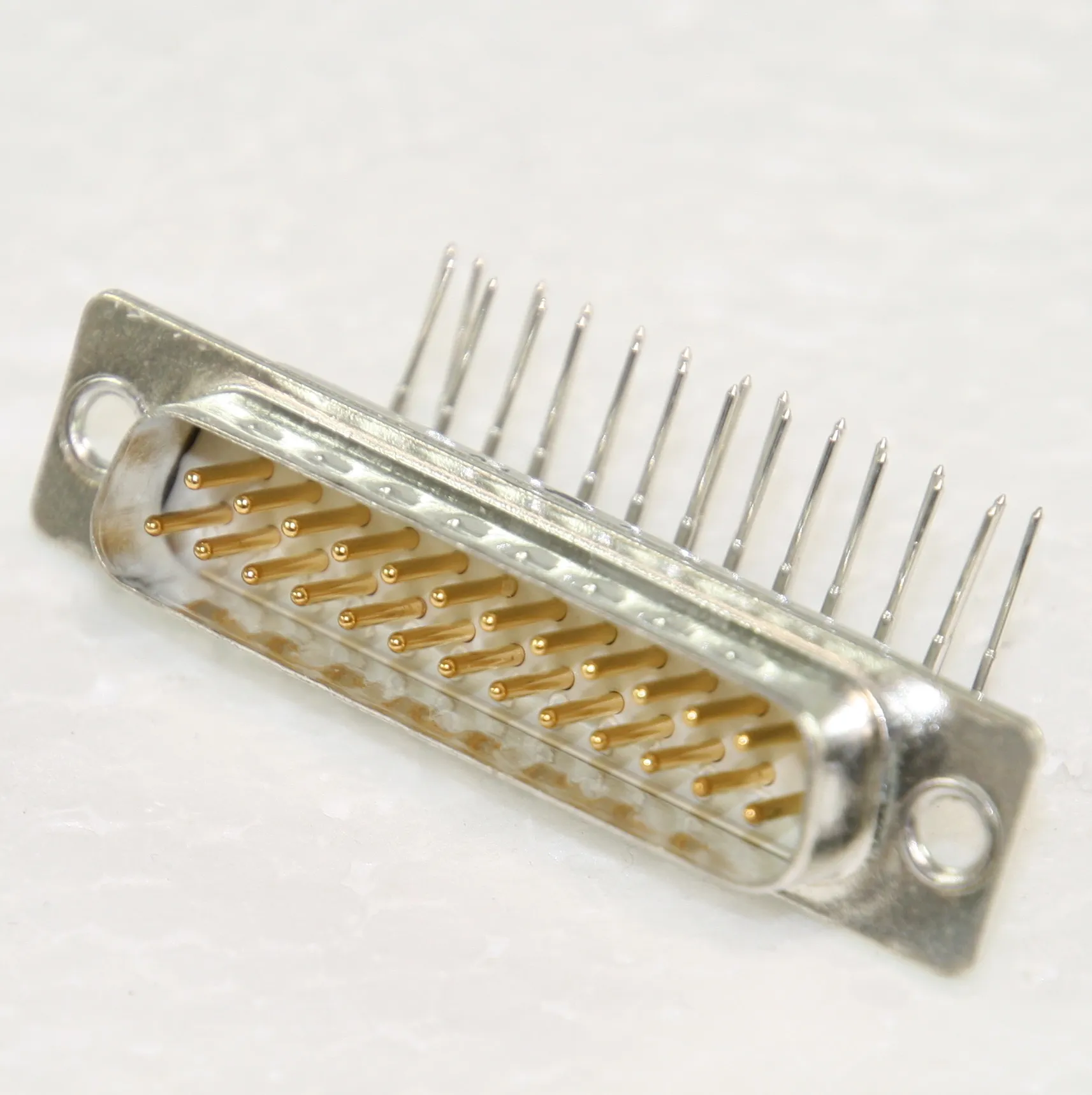

D-Sub-Plug 25-Pole Solder Pin 90°
Varenummer:
93-064
Varekode: SL25LW
Vægt: 14 g
49 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 25 |
Gruppe:
F4666
CONEC D-Sub Plugs
Series: SL_LW
Solder Pin, Angled
Contacts: Machined
CONEC D-Sub Plugs
Series: SL_LW
Solder Pin, Angled
Contacts: Machined
| Dimensions |
| Part Nr. | Poles | A-0,76 | B+0,25 | C | D |
| [mm] | [mm] | [mm] | [mm] | ||
| SL09LW | 9 | 31,19 | 16,79 | 25,00 | 6,12 |
| SL15LW | 15 | 39,52 | 25,12 | 33,30 | 6,12 |
| SL25LW | 25 | 53,42 | 38,84 | 47,04 | 5,99 |
| SL37LW | 37 | 69,70 | 55,30 | 63,50 | 5,99 |
| SL50LW | 50 | 67,31 | 52,68 | 61,10 | 5,99 |
 | |||||
| Note |
| More technical specifications see introduction text "F4661 to F4666" before product group F4661. You will find suitable mounting brackets and assemblies (locking bolts, nut, washer and springwasher) in product group F4793. |
|
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
