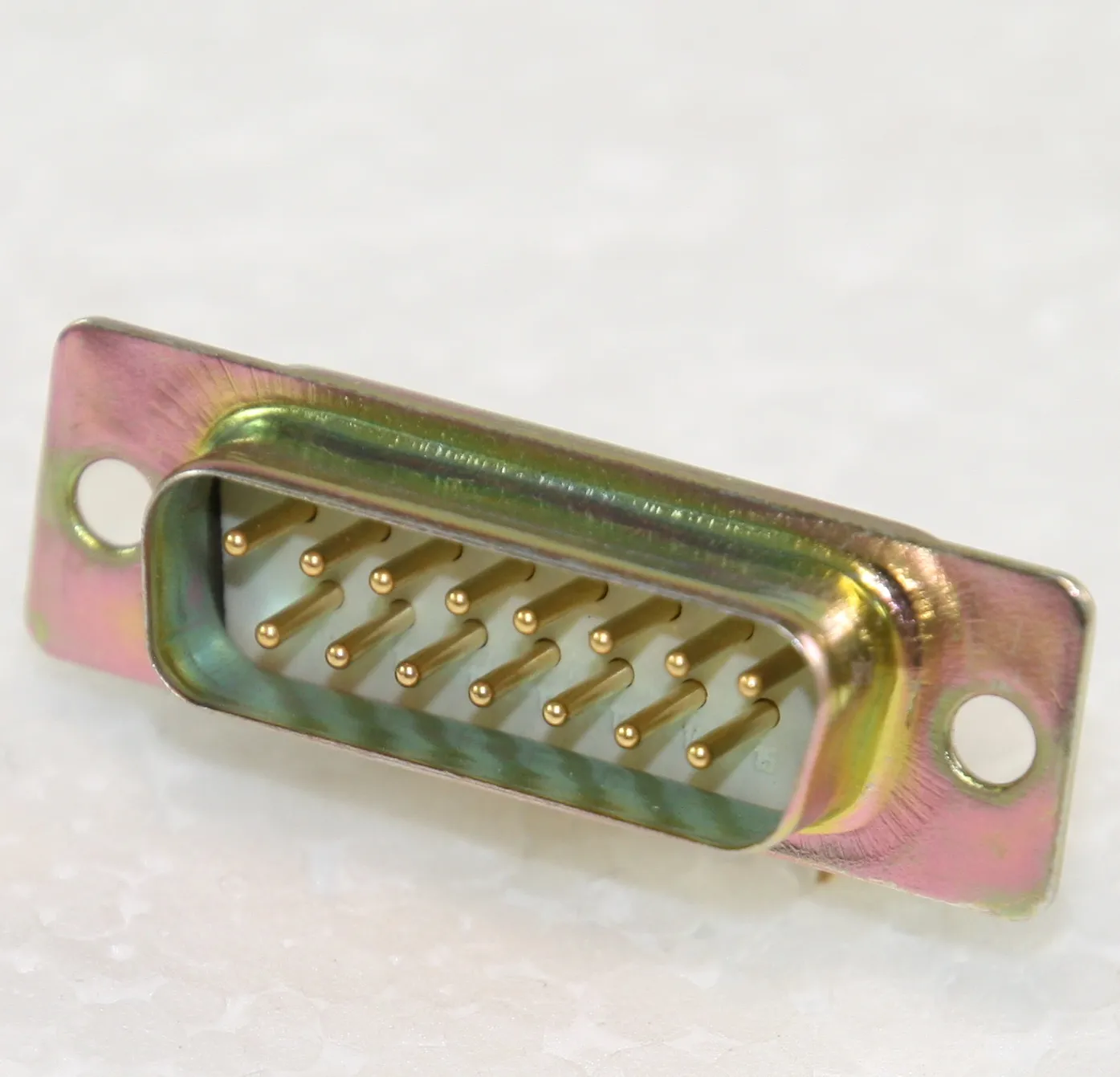

D-Sub-Plug 15-Pole Solder Pin 90°
Varenummer:
93-063
Varekode: SL15LW
Vægt: 10 g
170 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 20 stk. kan skaffes tirsdag d. 10/11
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 15 |
Gruppe: F4666
CONEC D-Sub Plugs
Series: SL_LW
Solder Pin, Angled
Contacts: Machined
| Dimensions |
| Part Nr. | Poles | A-0,76 | B+0,25 | C | D | [mm] | [mm] | [mm] | [mm] | SL09LW | 9 | 31,19 | 16,79 | 25,00 | 6,12 | SL15LW | 15 | 39,52 | 25,12 | 33,30 | 6,12 | SL25LW | 25 | 53,42 | 38,84 | 47,04 | 5,99 | SL37LW | 37 | 69,70 | 55,30 | 63,50 | 5,99 | SL50LW | 50 | 67,31 | 52,68 | 61,10 | 5,99 | ||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • More technical specifications see introduction text "F4661 to F4666" before product group F4661. • You will find suitable mounting brackets and assemblies (locking bolts, nut, washer and springwasher) in product group F4793. |
|
| Labelling |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Inkl. moms
Kr. 24,63
- v/10 – Kr. 19,72
- v/25 – Kr. 15,39
- v/100 – Kr. 13,56
