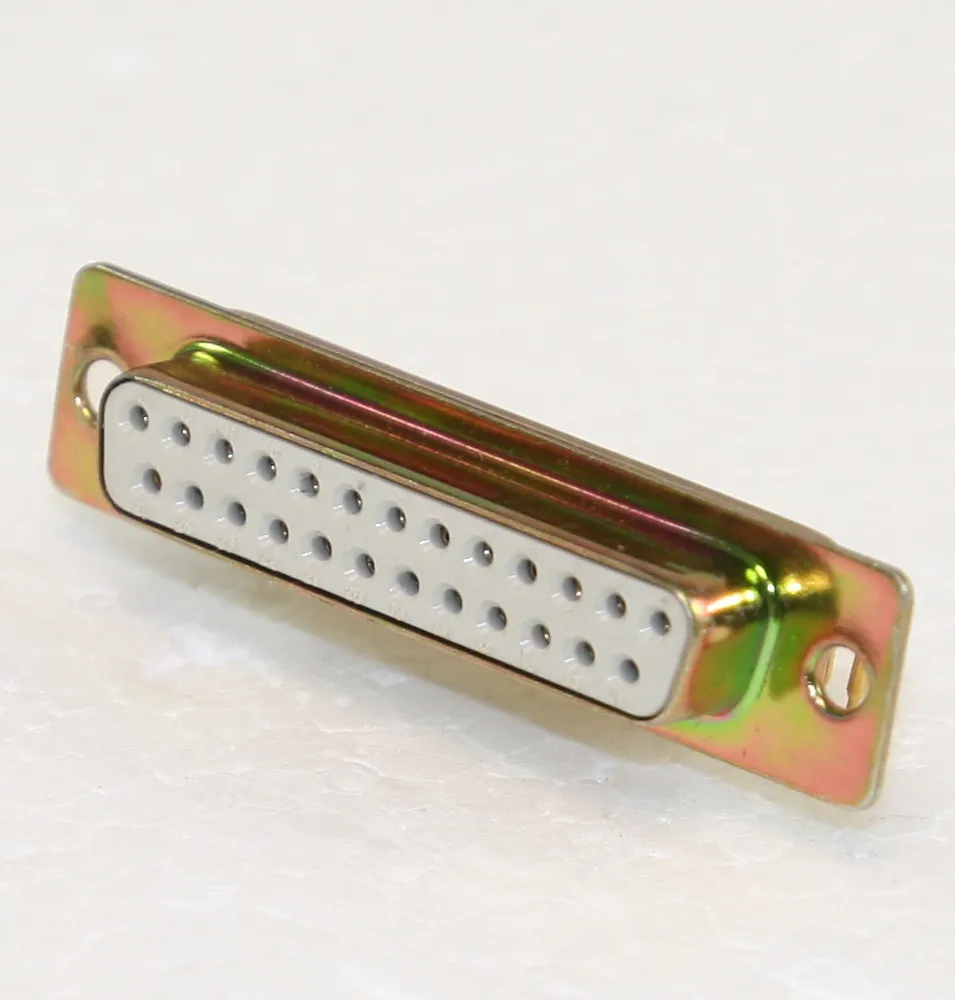

D-Sub-Socket 25-Pole Solder Pin 90°
Varenummer:
93-059
Varekode: BL25LW
Vægt: 16 g
396 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 25 |
Gruppe:
F4665
CONEC D-Sub Sockets
Series: BL_LW
Solder Pin, Angled
Contacts: Machined
CONEC D-Sub Sockets
Series: BL_LW
Solder Pin, Angled
Contacts: Machined
| Dimensions |
| Part Nr. | Poles | A-0,76 | B-0,25 | C |
| [mm] | [mm] | [mm] | ||
| BL09LW | 9 | 31,19 | 16,46 | 25,00 |
| BL15LW | 15 | 39,52 | 24,79 | 33,30 |
| BL25LW | 25 | 53,42 | 38,50 | 47,04 |
| BL37LW | 37 | 69,70 | 54,96 | 63,50 |
| BL50LW | 50 | 67,31 | 52,55 | 61,10 |
 | ||||
| Note |
| More technical specifications see introduction text "F4661 to F4666" before product group F4661. You will find suitable mounting brackets and assemblies (locking bolts, nut, washer and springwasher) in product group F4793. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
Inkl. moms
Kr. 20,00
Kr. 68,50
- v/10 – Kr. 15,00
- v/25 – Kr. 12,50
- v/100 – Kr. 10,00
Produktfiler
D-Sub-Socket 25-Pole Solder Pin 90°
93-059
/ BL25LW
396 stk.
på lager
Specifikationer
- Stik-familie D-Sub
- Antal poler 25
Gruppe:
F4665
CONEC D-Sub Sockets
Series: BL_LW
Solder Pin, Angled
Contacts: Machined
CONEC D-Sub Sockets
Series: BL_LW
Solder Pin, Angled
Contacts: Machined
| Dimensions |
| Part Nr. | Poles | A-0,76 | B-0,25 | C |
| [mm] | [mm] | [mm] | ||
| BL09LW | 9 | 31,19 | 16,46 | 25,00 |
| BL15LW | 15 | 39,52 | 24,79 | 33,30 |
| BL25LW | 25 | 53,42 | 38,50 | 47,04 |
| BL37LW | 37 | 69,70 | 54,96 | 63,50 |
| BL50LW | 50 | 67,31 | 52,55 | 61,10 |
| ||||
| Note |
| More technical specifications see introduction text "F4661 to F4666" before product group F4661. You will find suitable mounting brackets and assemblies (locking bolts, nut, washer and springwasher) in product group F4793. |
|
| Approvals |
| |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| |
| http://www.conec.com |
|
