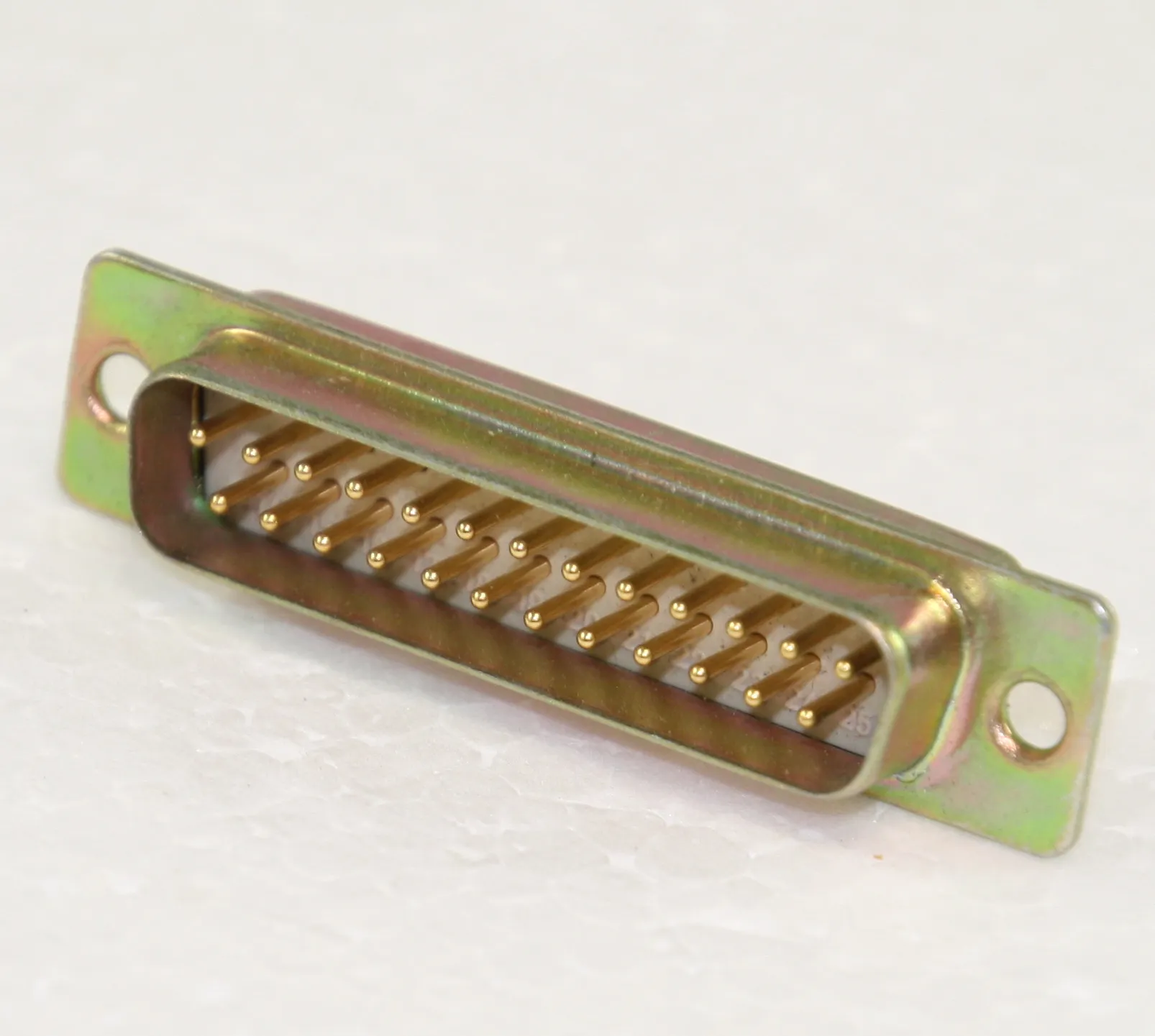

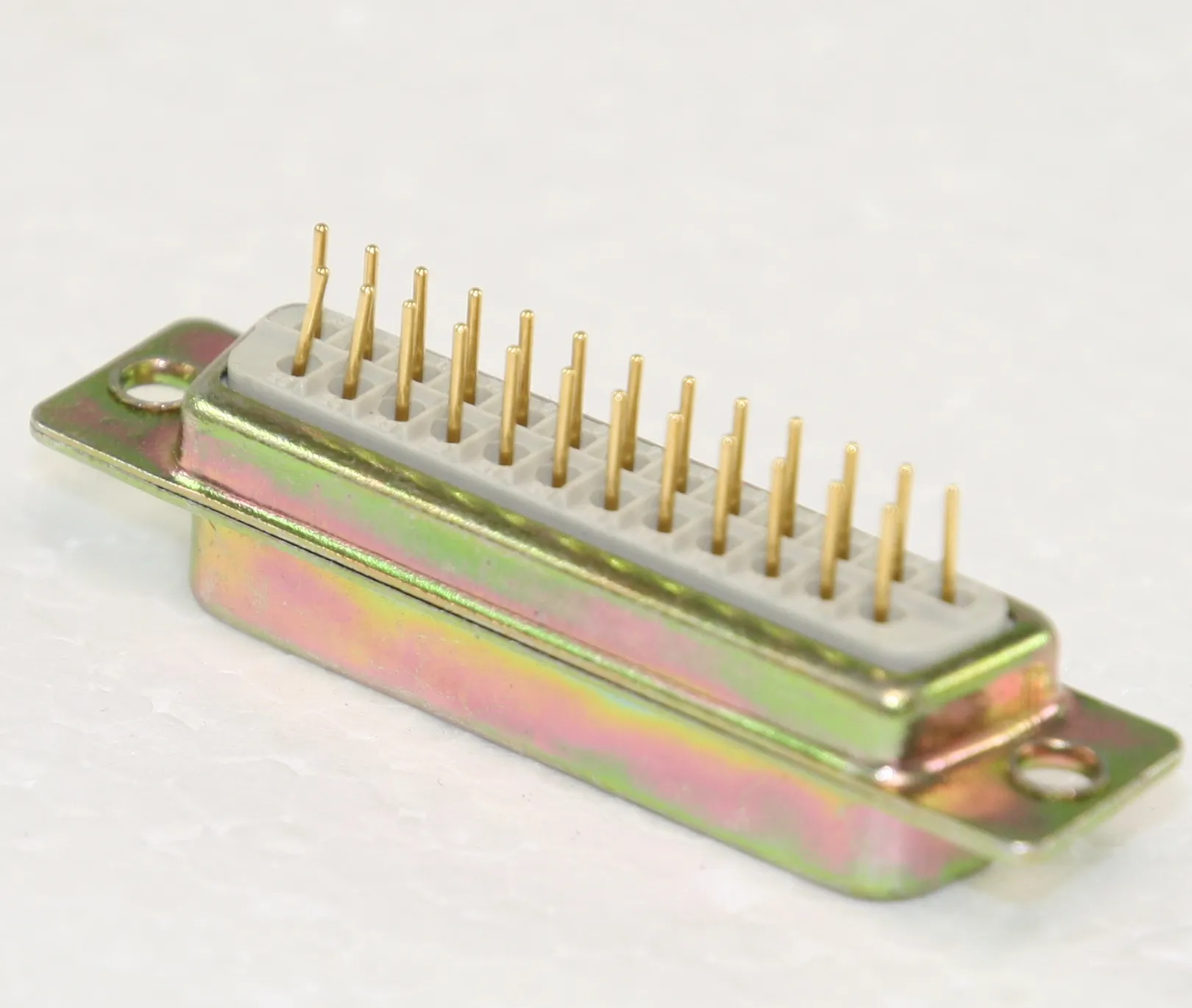

D-Sub-Plug 25-Pole Solder Pin PCB
Varenummer:
93-054
Varekode: SL25LG
Vægt: 12 g
408 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 25 |
Technical Specifications
 |
|
| Insulating Shell: | Polyester, Glass-filled (PA6.6 GF25(UL94V-0)) |
| Contact Material: | Cu-Alloy |
| Housing Frame: | Steel-plate Under Nickel, Tin-plated |
| Test Voltage Ueff: | 1000V |
| Operating Voltage: | 125 V AC |
| Operating Current (20°C), Max.: | 5A |
| Operating Temperature Range: | -55...+125°C |
|
|
| Dimensions |
| Part Nr. | Poles | A-0,76 | B+0,25 | C | D |
| [mm] | [mm] | [mm] | [mm] | ||
| SL09LG | 9 | 31,19 | 16,79 | 25,00 | 6,12 |
| SL15LG | 15 | 39,52 | 25,12 | 33,30 | 6,12 |
| SL25LG | 25 | 53,42 | 38,84 | 47,04 | 5,99 |
| SL37LG | 37 | 69,70 | 55,30 | 63,50 | 5,99 |
| SL50LG | 50 | 67,31 | 52,68 | 61,10 | 5,99 |
|
|||||
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 pieces |
|
| Manufacturer |
 |
