D-Sub-Plug 15-Pole Solder Pin
Varenummer:
93-053
Varekode: SL15LG
Vægt: 0 g
211 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 15 |
Gruppe:
F4664
CONEC D-Sub Plugs
Series: SL_LG
Solder Pin, Straight
Contacts: Machined
CONEC D-Sub Plugs
Series: SL_LG
Solder Pin, Straight
Contacts: Machined

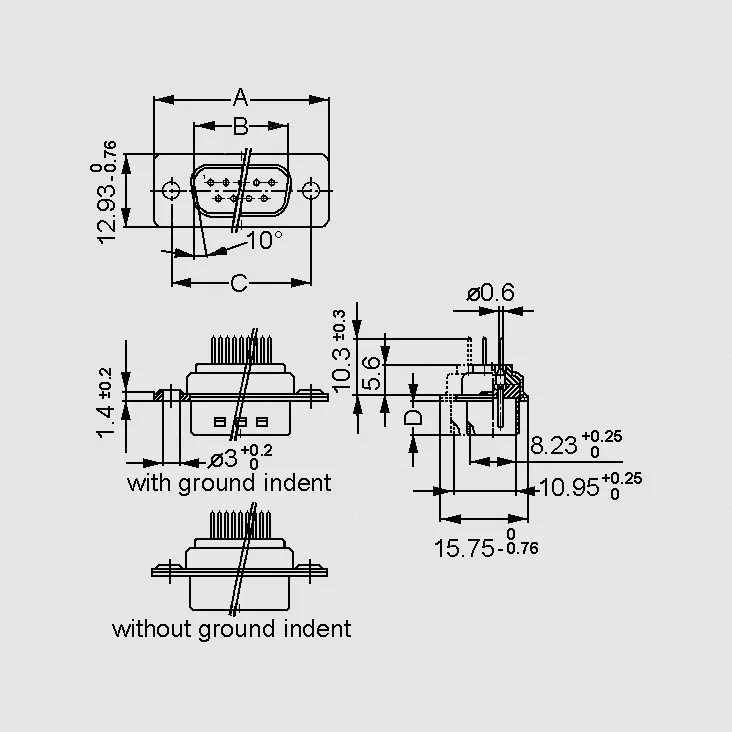

| Dimensions |
| Part Nr. | Poles | A-0,76 | B+0,25 | C | D |
| [mm] | [mm] | [mm] | [mm] | ||
| SL09LG | 9 | 31,19 | 16,79 | 25,00 | 6,12 |
| SL15LG | 15 | 39,52 | 25,12 | 33,30 | 6,12 |
| SL25LG | 25 | 53,42 | 38,84 | 47,04 | 5,99 |
| SL37LG | 37 | 69,70 | 55,30 | 63,50 | 5,99 |
| SL50LG | 50 | 67,31 | 52,68 | 61,10 | 5,99 |
 | |||||
| Note |
| More technical specifications see introduction text "F4661 to F4666" before product group F4661. You will find suitable mounting brackets and assemblies (locking bolts, nut, washer and springwasher) in product group F4793. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
