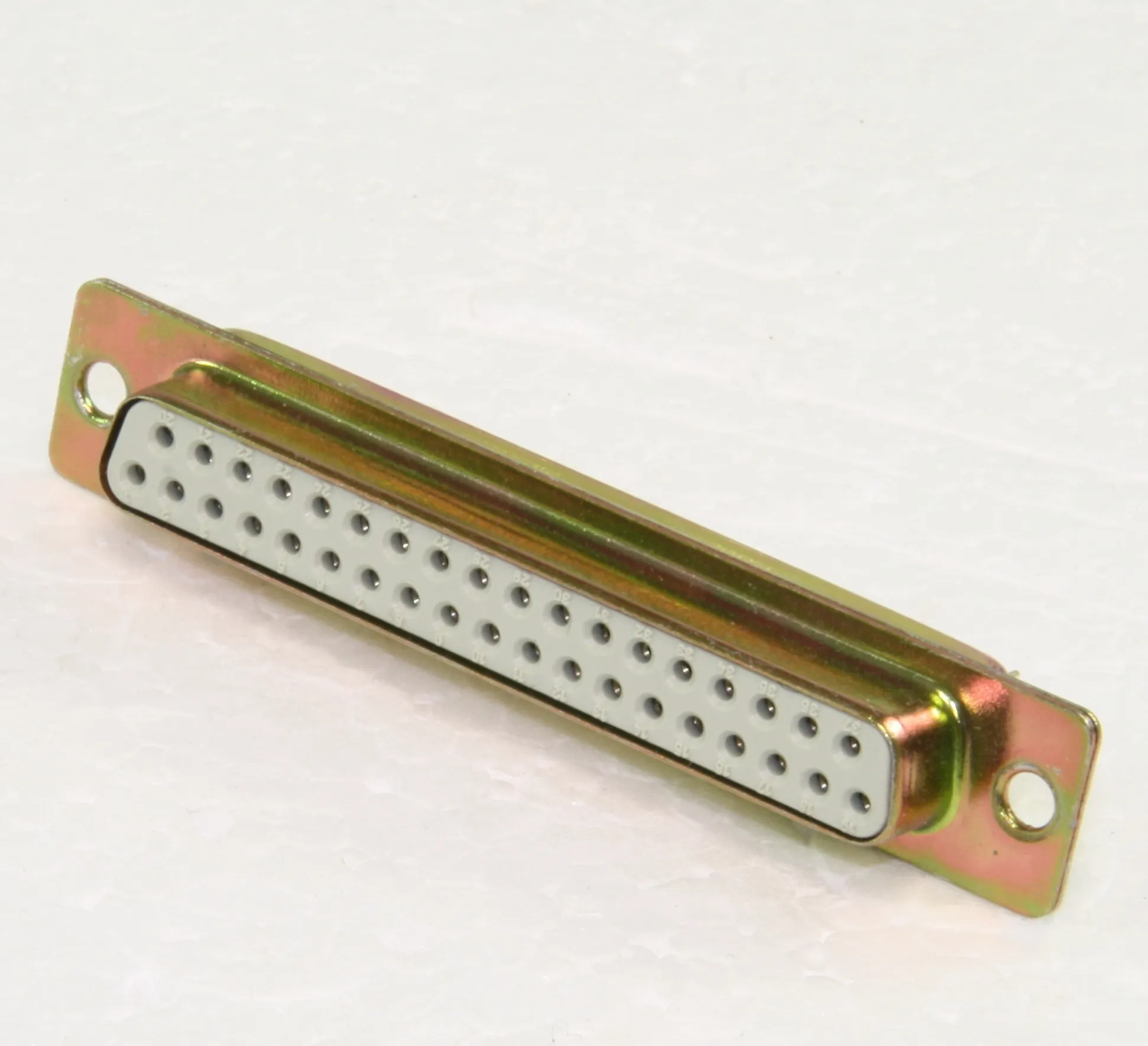

D-Sub-Socket 37-Pole Solder Pin
Varenummer:
93-050
Varekode: BL37LG
Vægt: 19 g
227 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 50 stk. kan skaffes tirsdag d. 10/11
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 37 |
Gruppe:
F4663
CONEC D-Sub Sockets
Series: BL_LG
Solder Pin, Straight
Contacts: Machined
CONEC D-Sub Sockets
Series: BL_LG
Solder Pin, Straight
Contacts: Machined
| Dimensions |
| Part Nr. | Poles | A-0,76 | B-0,25 | C |
| [mm] | [mm] | [mm] | ||
| BL09LG | 9 | 31,19 | 16,46 | 25,00 |
| BL15LG | 15 | 39,52 | 24,79 | 33,30 |
| BL25LG | 25 | 53,42 | 38,50 | 47,04 |
| BL37LG | 37 | 69,70 | 54,96 | 63,50 |
| BL50LG | 50 | 67,31 | 52,55 | 61,10 |
 | ||||
| Note |
| More technical specifications see introduction text "F4661 to F4666" before product group F4661. You will find suitable mounting brackets and assemblies (locking bolts, nut, washer and springwasher) in product group F4793. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
