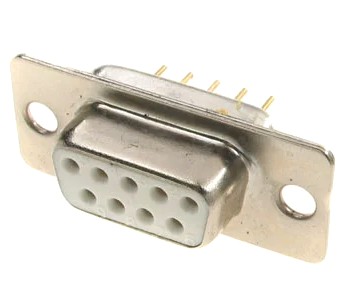

D-Sub Socket 9-Pole Solder Pin Female
Varenummer:
93-047
Varekode: BL09LG
Vægt: 7 g
308 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 9 |
Technical Specifications
 |
|
| Insulating Shell: | Polyester, Glass-filled (PA6.6 GF25(UL94V-0)) |
| Contact Material: | Cu-Alloy |
| Housing Frame: | Steel-plate Under Nickel, Tin-plated |
| Test Voltage Ueff: | 1000V |
| Operating Voltage: | 125 V AC |
| Operating Current (20°C), Max.: | 5A |
| Operating Temperature Range: | -55...+125°C |
|
|
| Dimensions |
| Part Nr. | Poles | A-0,76 | B-0,25 | C |
| [mm] | [mm] | [mm] | ||
| BL09LG | 9 | 31,19 | 16,46 | 25,00 |
| BL15LG | 15 | 39,52 | 24,79 | 33,30 |
| BL25LG | 25 | 53,42 | 38,50 | 47,04 |
| BL37LG | 37 | 69,70 | 54,96 | 63,50 |
|
||||
| Approvals |
   |
|
Produktfiler
