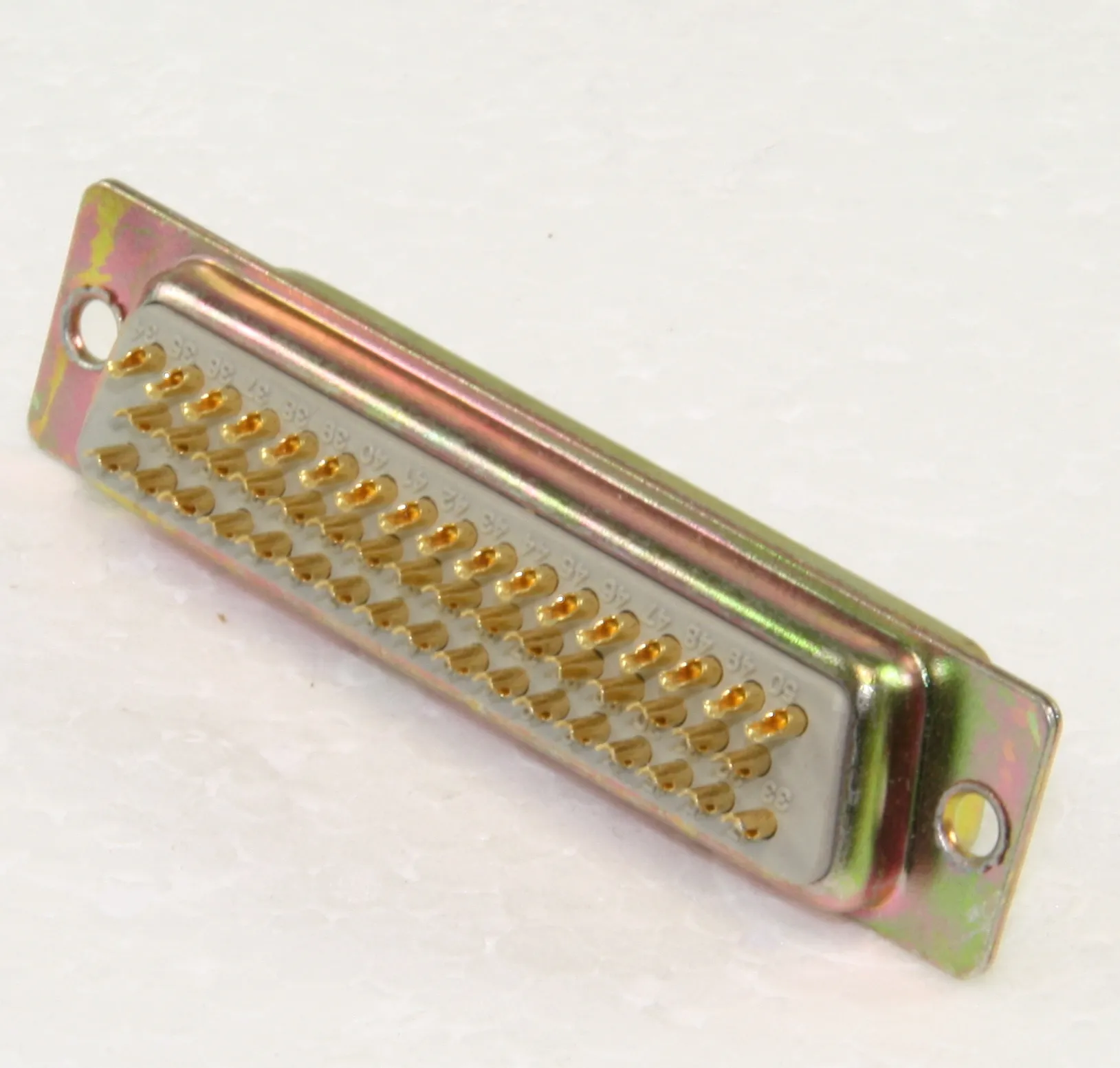

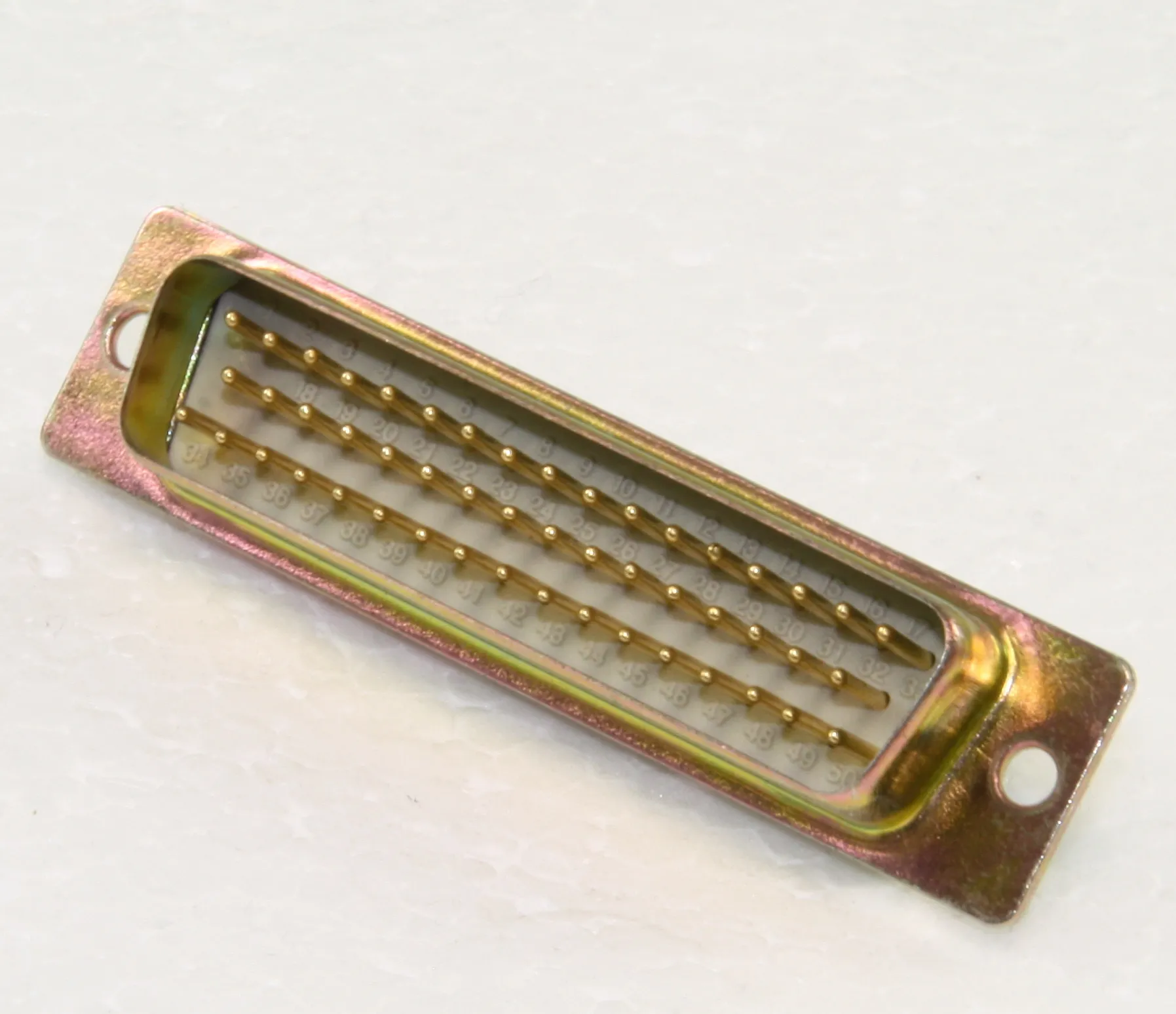

D-Sub-Plug 50-Pole Solder Cup
Varenummer:
93-046
Varekode: SL50LF
Vægt: 20 g
490 stk.
på lager
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 50 |
Gruppe:
F4662
CONEC D-Sub Plugs
Series: SL_LF
Solder Cup
Contacts: Machined
CONEC D-Sub Plugs
Series: SL_LF
Solder Cup
Contacts: Machined
| Dimensions |
| Part Nr. | Poles | A-0,76 | B-0,25 | C | D-0,30 |
| [mm] | [mm] | [mm] | [mm] | ||
| SL09LF | 9 | 31,19 | 16,79 | 25,00 | 6,12 |
| SL15LF | 15 | 39,52 | 25,12 | 33,30 | 6,12 |
| SL25LF | 25 | 53,42 | 38,84 | 47,04 | 5,99 |
| SL37LF | 37 | 69,70 | 55,30 | 63,50 | 5,99 |
| SL50LF | 50 | 67,31 | 52,68 | 61,10 | 5,99 |
 | |||||
| Note |
| More technical specifications see introduction text "F4661 to F4666" before product group F4661. You will find suitable mounting brackets and assemblies (locking bolts, nut, washer and springwasher) in product group F4793. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
