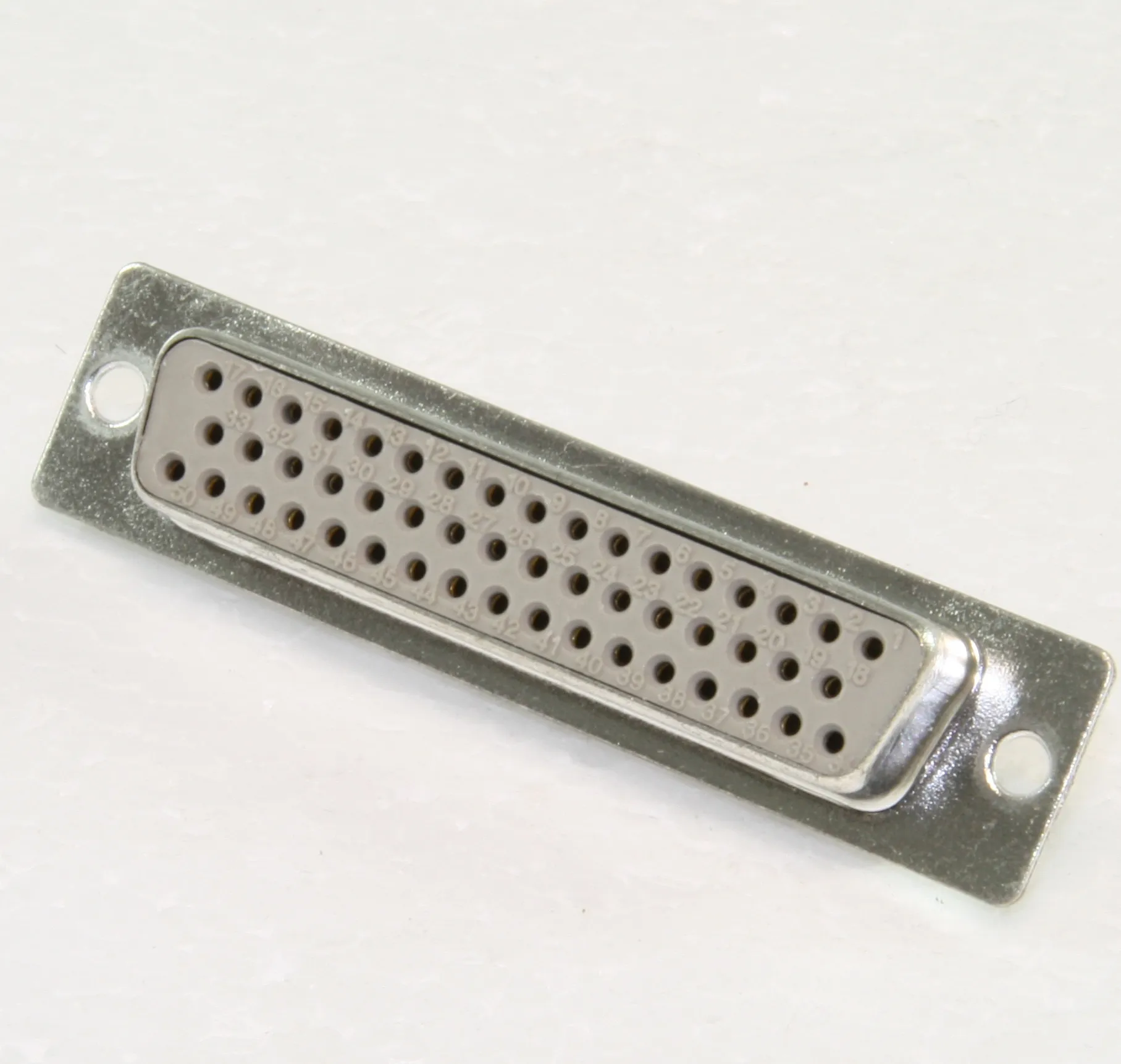

D-Sub-Socket 50-Pole Solder Cup
Varenummer:
93-041
Varekode: BL50LF
Vægt: 24 g
107 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere kan skaffes torsdag d. 5/11
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 50 |
Gruppe:
F4661
CONEC D-Sub Sockets
Series: BL_LF
Solder Cup
Contacts: Machined
CONEC D-Sub Sockets
Series: BL_LF
Solder Cup
Contacts: Machined
| Dimensions |
| Part Nr. | Poles | A-0,76 | B-0,25 | C |
| [mm] | [mm] | [mm] | ||
| BL09LF | 9 | 31,19 | 16,46 | 25,00 |
| BL15LF | 15 | 39,52 | 24,79 | 33,30 |
| BL25LF | 25 | 53,42 | 38,50 | 47,04 |
| BL37LF | 37 | 69,70 | 54,96 | 63,50 |
| BL50LF | 50 | 67,31 | 52,55 | 61,10 |
 | ||||
| Note |
| More technical specifications see introduction text "F4661 to F4666" before this product group. You will find suitable mounting brackets and assemblies (locking bolts, nut, washer and springwasher) in product group F4793. |
|
| Approvals |
   |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.conec.com |
|
