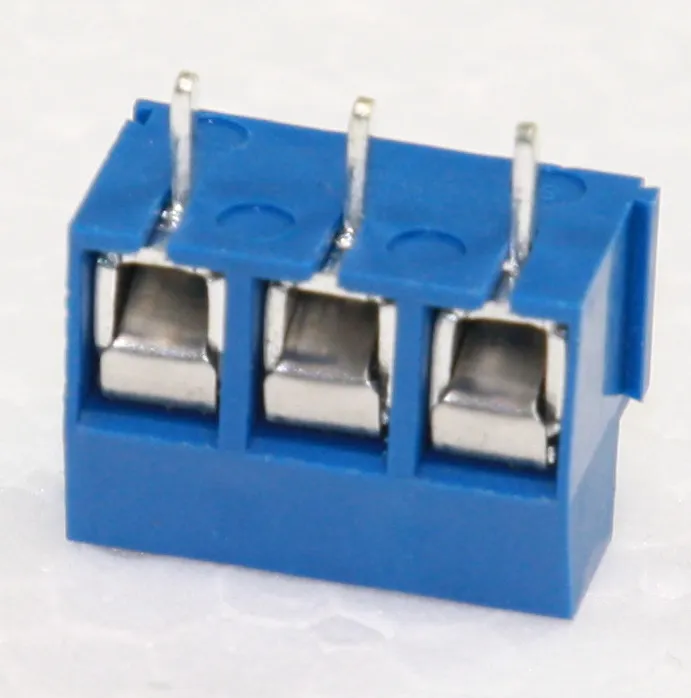

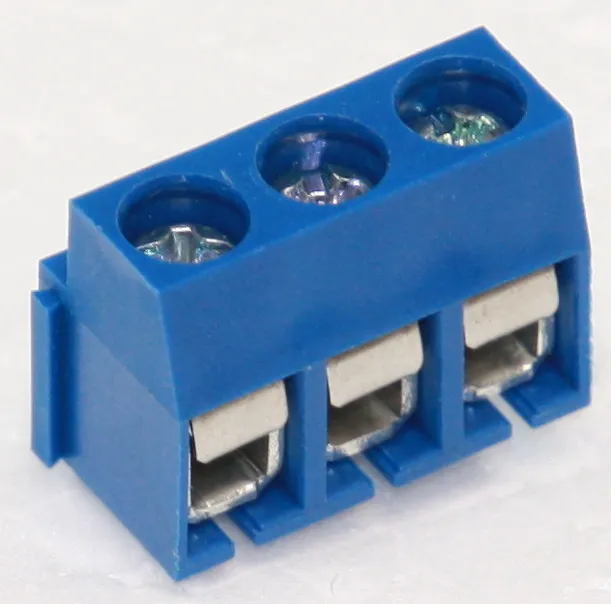

Term.Block 300V 3-Pole Blå
Varenummer:
93-017
Varekode: ARK1103Z
Vægt: 2 g
312 stk.
på lager
Gruppe: F9375
ECE Terminal Blocks
Series: ETB11
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
 |
|||||||||||||||||
| Rated Voltage: | 300V | Rated Current: | 8A | Rated Cross Section: | 0,3...2mm2 | Insulation Resistance: | 500MW/500V DC | Dielectric Strength, Min.: | 2000V AC, 1Min. | Insulating Material: | Polyamide 66 | Temperature Range: | - 55°C...+125°C | Colour: | Blue | ||
|
|||||||||||||||||
| Dimensions |
| Part Nr. | L | H | T | [mm] | ARK1102Z | 10,0 | 11,0 | 8,0 | ARK1103Z | 15,0 | 11,0 | 8,0 | |||||||
|
|||||||||||||||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
Term.Block 300V 3-Pole Blå
93-017
/ ARK1103Z
312 stk.
på lager
Gruppe: F9375
ECE Terminal Blocks
Series: ETB11
Screw Principle with Wire Guard
Conductor: Horizontal
Pitch: 5mm
| Technical Specifications |
|
|||||||||||||||||
| Rated Voltage: | 300V | Rated Current: | 8A | Rated Cross Section: | 0,3...2mm2 | Insulation Resistance: | 500MW/500V DC | Dielectric Strength, Min.: | 2000V AC, 1Min. | Insulating Material: | Polyamide 66 | Temperature Range: | - 55°C...+125°C | Colour: | Blue | ||
|
|||||||||||||||||
| Dimensions |
| Part Nr. | L | H | T | [mm] | ARK1102Z | 10,0 | 11,0 | 8,0 | ARK1103Z | 15,0 | 11,0 | 8,0 | |||||||
|
|||||||||||||||||||
| Approvals |
| |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
