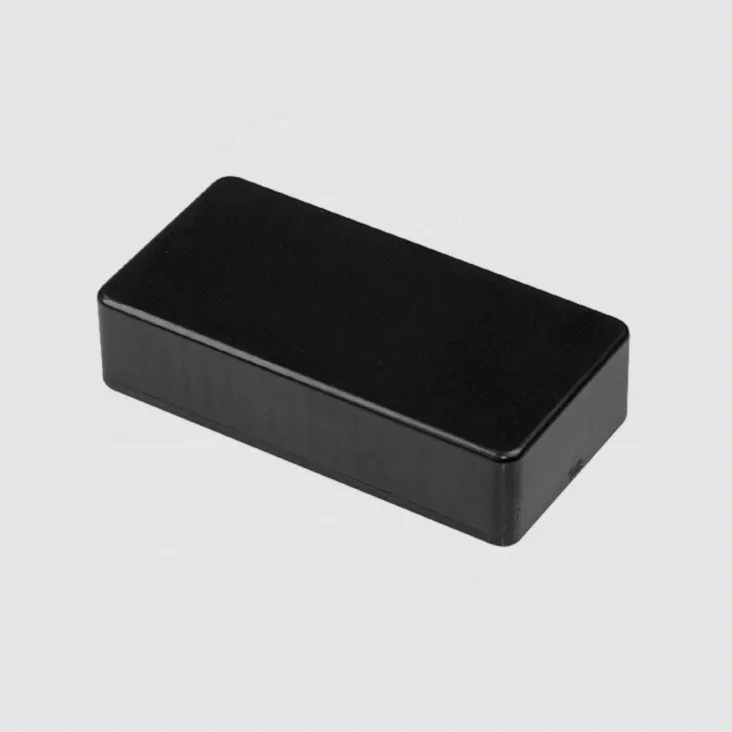

ABS Enclosure 112x62x31 Black
Varenummer:
92-896
Varekode: 1591BBK
Vægt: 73 g
13 stk.
på lager
Specifikationer
| Farve | sort |
|---|---|
| Materiale | plastik |
| Produkt | boks |
| Længde | 11.2 cm |
| Bredde | 6.2 cm |
| Højde | 3.1 cm |
| Features |
| • Black: ABS enclosure, UL94V-0 • Ice Blue: Polycarbonate enclosure, transparent, UL94V-0 • Machined screws in brass bushings at the four enclosure corners to provide a secure "lap-joint" construction of base and lid • Lid is secured to base with M3x10 Phillips screws (included in delivery) • Integral card guides accepts 1,5mm P.C. boards |
 |
| Dimensions |
| Part Nr. | A | B | C | F | G | J | K | � | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | HA1591M_ | 85 | 56 | 21 | 71 | 42 | 34 | 63 | HA1591L_ | 85 | 56 | 35 | 73 | 44 | 35 | 64 | HA1591A_ | 100 | 50 | 21 | 86 | 36 | 29 | 79 | HA1591S_ | 110 | 82 | 40 | 98 | 70 | 61 | 89 | HA1591B_ | 112 | 62 | 27 | 98 | 48 | 41 | 91 | HA1591C_ | 120 | 65 | 36 | 106 | 51 | 44 | 99 | HA1591T_ | 120 | 80 | 55 | 106 | 66 | 59 | 99 | HA1591U_ | 120 | 120 | 55 | 106 | 106 | 99 | 99 | HA1591G_ | 121 | 94 | 30 | 106 | 79 | 73 | 100 | HA1591D_ | 150 | 80 | 46 | 136 | 66 | 59 | 129 | HA1591E_ | 191 | 110 | 57 | 176 | 96 | 89 | 170 | ||||||||
| C = Height Without Lid | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
| Hammond http://www.hammondmfg.com |
|
