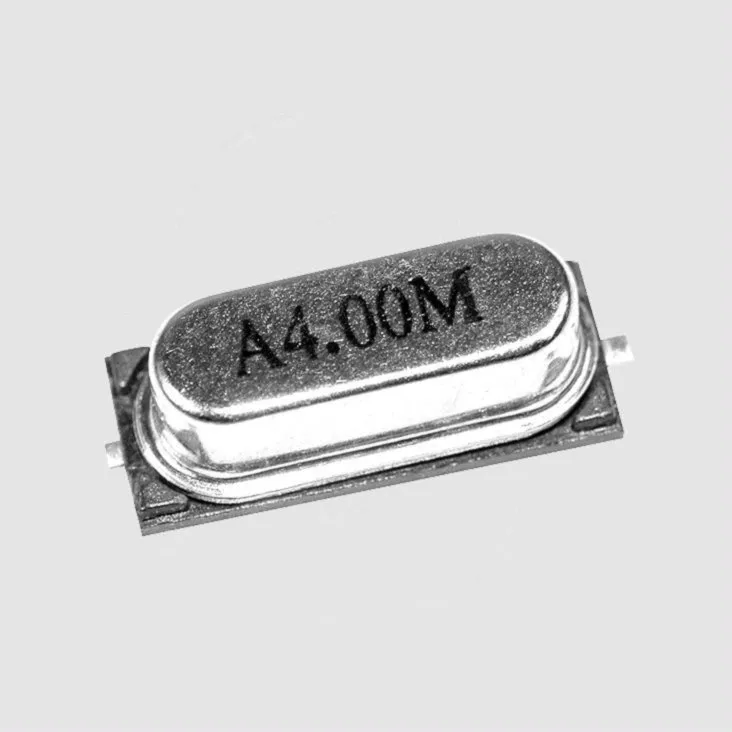

SMD Crystal 4.194.304Hz HC49S4
Varenummer:
92-832
Varekode: QSMD004,194
Vægt: 1 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 31/10
Vis lignende produkter i kategorien "SMD"
 |
|
|
Temperature Range:
|
-10...+60°C
|
Frequency Tolerance (25°C):
|
±30ppm
|
Shunt Capacitance, Max.:
|
7pF
|
Quartz Load:
|
1,0mW
|
Insulation Resistance (100V DC):
|
>500MW
|
Temperature Stability:
|
±50ppm
|
Vibration Mode:
|
Fundamental Wave
|
Aging:
|
±5ppm/Year
|
|
|
|
|
|
|
Part Nr.
|
Frequency
|
C
|
RESR
|
|
| |
[Hz]
|
[pF]
|
[W]
|
|
| QSMD003,579 |
3.579.545
|
16
|
150
|
|
| QSMD003,686 |
3.686.000
|
32
|
150
|
|
| QSMD004 |
4.000.000
|
30
|
150
|
|
| QSMD004,096 |
4.096.000
|
30
|
150
|
|
| QSMD004,194 |
4.194.304
|
32
|
150
|
|
| QSMD004,915 |
4.915.200
|
16
|
120
|
|
| QSMD005 |
5.000.000
|
30
|
120
|
|
| QSMD006 |
6.000.000
|
30
|
100
|
|
| QSMD006,144 |
6.144.000
|
16
|
100
|
|
| QSMD007,372 |
7.372.800
|
32
|
100
|
|
| QSMD008 |
8.000.000
|
30
|
80
|
|
| QSMD009,830 |
9.830.400
|
30
|
80
|
|
| QSMD010 |
10.000.000
|
30
|
70
|
|
| QSMD011,059 |
11.059.200
|
30
|
70
|
|
| QSMD012 |
12.000.000
|
30
|
60
|
|
| QSMD012,288 |
12.228.000
|
30
|
60
|
|
| QSMD015 |
15.000.000
|
30
|
60
|
|
| QSMD016 |
16.000.000
|
30
|
50
|
|
| QSMD020 |
20.000.000
|
30
|
40
|
|
C = Load Capacitance, RESR = Resistance of Series Resonance, Max.
|
|
|
