MKT Capacitor Y2 100nF 300V P22,5

Varenummer: 92-824
Varekode: CFY100NF41
Vægt: 6 g
9 stk. på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 506 stk. kan skaffes tirsdag d. 10/11
Vis lignende produkter i kategorien "Y2"
Gruppe:
C5831

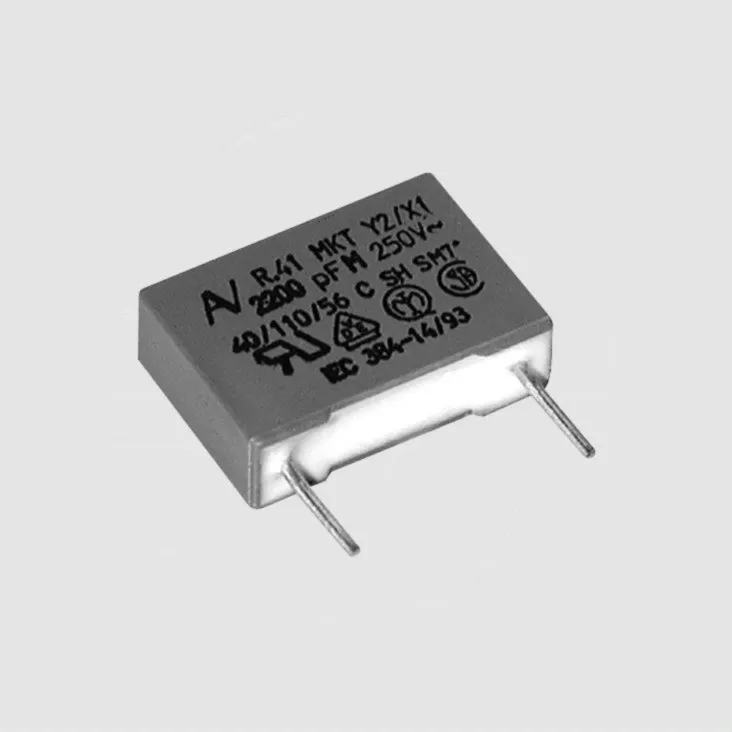

KEMET/ARCOTRONICS MKP Metallized Film Capacitor
Series: R.41
Class Y2
Style: Bulk
Rated Voltage: 300V AC
Tolerance: 20%
Pitch: 10...22,5mm
Features
Dielectric polypropylene film. Aluminium layer plates deposited by evaporation under vacuum
Tinned wire leads
Box material is solvent resistant and flame retardant (UL94V-0)
Low attenuation
Non inductive
Application
Interference suppression and "across-the-line" and "line-to-ground" applications.
Technical Specifications
Rated Voltage (50/60Hz):
300V AC
Rated Capacitance:
See Table
Capacitance Tolerance:
±20%
Temperature Range:
-40...+110C
Climatic Category (IEC60068-1):
40/110/56
Insulation Resistance (25±5C; 100V, 1Min.):
1x105MW
Dissipation Factor Tan d (25 ±5C; 1kHz):
20x10-4
Pulse Strength (420V DC):
P = 10mm:
800V/µs
P = 15mm:
600V/µs
P = 22,5mm:
500V/µs
Test Voltage (25 ±5C)¹):
2500V AC/1s
5000V DC/1s
1) Test Voltage between Terminations

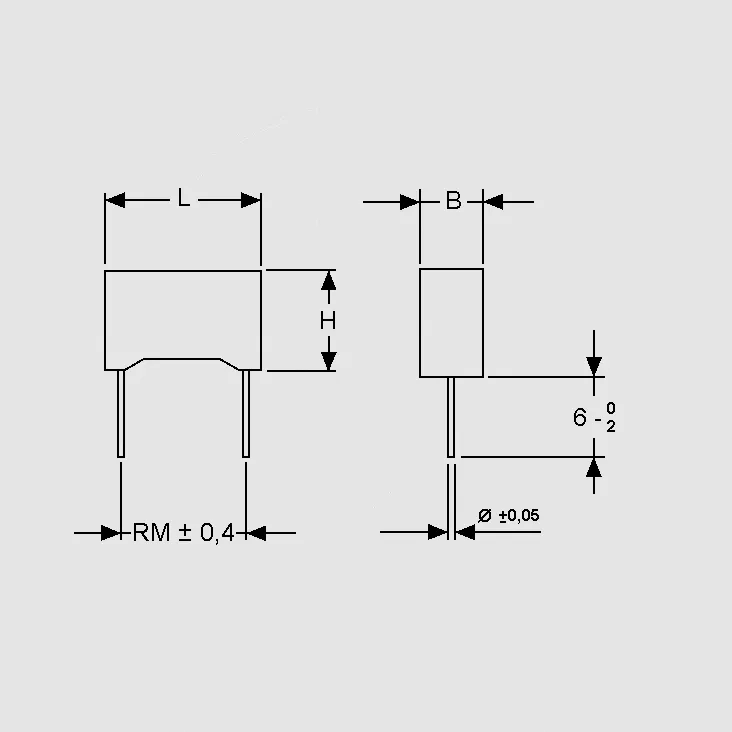

Part Nr.
CN
B
H
L
P

[nF]
[mm]
[mm]
[mm]
[mm]
[mm]
CFY1.0NF411,0
4,0
9,0
13,0
10,0
0,6
CFY2.2NF412,2
4,0
9,0
13,0
10,0
0,6
CFY3.3NF413,3
5,0
11,0
13,0
10,0
0,6
CFY4.7NF414,7
5,0
11,0
13,0
10,0
0,6
CFY10NF4110
5,0
11,0
18,0
15,0
0,8
CFY100NF41100
10,0
18,5
26,5
22,5
0,8
CN = Rated Capacity
Norms
EN132 400
Labelling
Manufacturers logo, series, capacitance, capacitance tolerance, rated voltage, class, dielectric (coded), climatic category, manufacturing date (coded), approvals
Approvals
EN 132 400, IQM
C22.2 N1 (Across-the-line or line-to-ground)
UL1414 (Across-the-line or line-to-ground)
CQC GB IT 14472-1998
Terms of Delivery
Minimum order quantity: 1 PKU = 50 pieces
100nF: 1 PKU = 25 pieces
Form of delivery: bulk
Manufacturer

http://www.kemet.com
Inkl. moms
Kr. 18,05
  • v/10 – Kr. 12,63
  • v/25 – Kr. 9,02
  • v/100 – Kr. 5,41
  • v/1000 – Kr. 3,61
