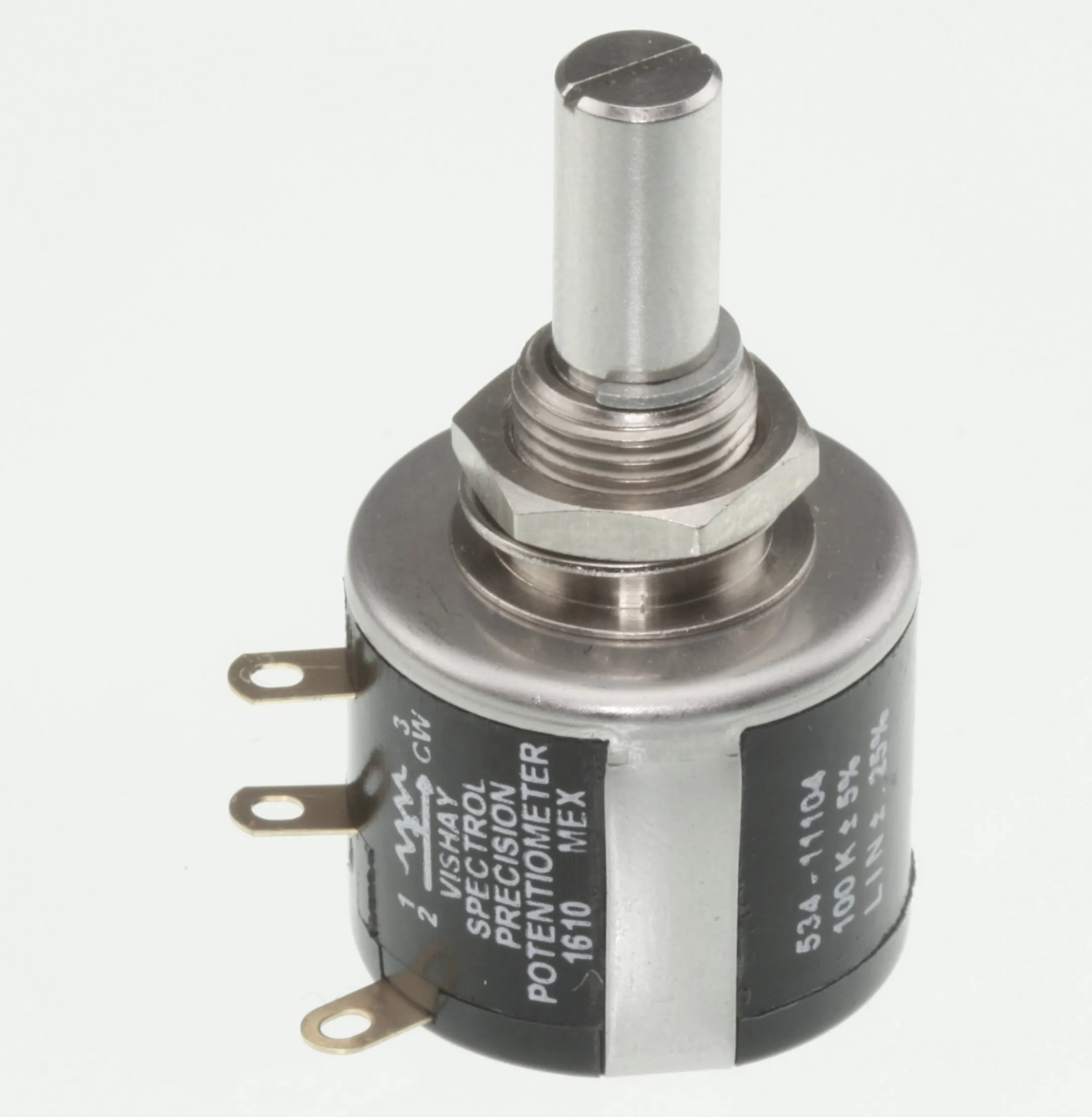

Wirewound Potentiometer 2W 10K -10 Turn
Varenummer:
92-781
Varekode: P534K010
Vægt: 24 g
6 stk.
på lager
Gruppe: C3514
VISHAY Multi-Turn Potentiometers
Series: 534
Linear
Power: 2W

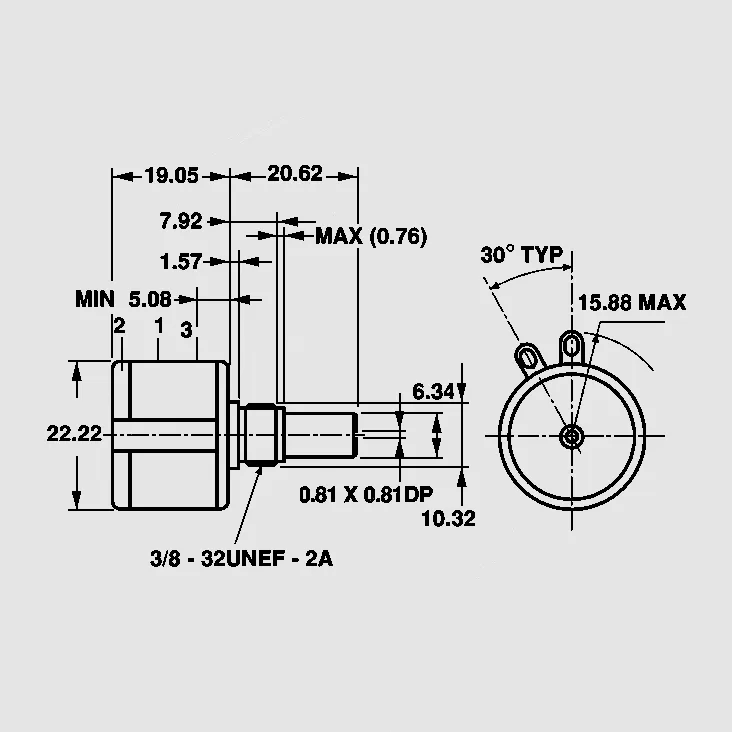

Shaft: Metal, Ø6,35mm
Housing: Ø22,22mm
| Features |
| • 6,35mm metal spindle, thread 3/8-32UNEF-2A • High mechanical strength |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||
| Rated Dissipation (70°C): | 2W | Hold-off Voltage: | 500V | Dielectric Strength (RMS): | 1000V | Insulation Resistance: | 103MW | Standard Tolerance: | ±5% | Independent Linearity: | ±0,25% | Rotation Angle | Mechanical: | 3600° ±10° | Electrical: | 3600° ±10° | Operating Torque: | 0,28...0,35Ncm | End Stop Torque: | 53Ncm | Temperature Range: | -55...+125°C | Temperature Coefficient (Typ.): | 20ppm/°C | |||
|
|||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
Vishay/Spectrol |
| http://www.vishay.com |
|
