• High performance
• Extended temperature range
• For professional applications
• Compact form
• Excellent stability
• Completely sealed
• High mechanical strength
|
 |
|
|
|
Standard Tolerance:
|
±20%
|
Resistive Element:
|
Cermet
|
Sealing:
|
IP67
|
|
Electrical Specifications
|
|
|
|
Resistance Law:
|
Linear
|
Power Rating (TU = 40°C):
|
1W
|
Hold-off Voltage:
|
350V
|
Dielectric Strength (RMS):
|
2500V
|
Insulation:
|
>10 4MW
|
End Resistance (Typ.):
|
1W
|
Temperature Range:
|
-55...+125°C
|
Climatic Category:
|
55/100/56
|
|

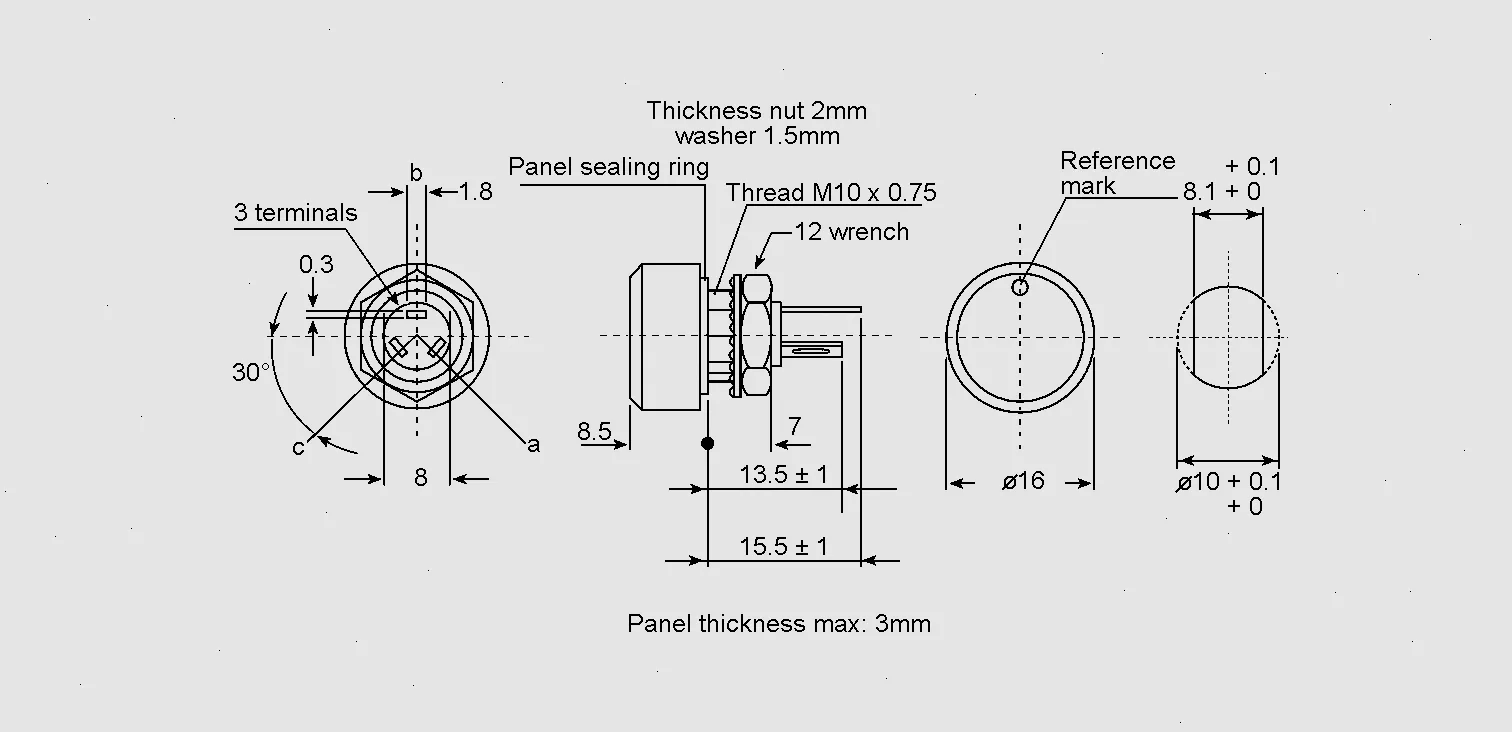

Mechanical Specifications
|
|
|
|
Rotation Angle
|
Mechanical:
|
300° ±5°
|
Electrical:
|
270° ±10°
|
Operating Torque, Typ.:
|
2Ncm
|
End Stop Torque:, Max.:
|
25Ncm
|
|
|
|
|
|
|
|
Part Nr.
|
R
|
PMax.
|
UMax.
|
IMax.
|
TC
|
| |
[W]
|
[W]
|
[V]
|
[mA]
|
[ppm/°C]
|
| P16NPK001 |
1k
|
1
|
31,62
|
31,6
|
±100
|
| P16NPK004,7 |
4,7k
|
1
|
68,55
|
14,58
|
±100
|
| P16NPK010 |
10k
|
1
|
100
|
10
|
±100
|
| P16NPK047 |
47k
|
1
|
216,7
|
4,61
|
±100
|
| P16NPK100 |
100k
|
1
|
316,23
|
3,16
|
±100
|
R = Resistance, PMax. = Power, Max. (+70°C), UMax. = Operating Voltage, Max., IMax. = Transmission Current, Max., TC = Standard Temperature Coefficient (-40...+85°C)
|
|
|
