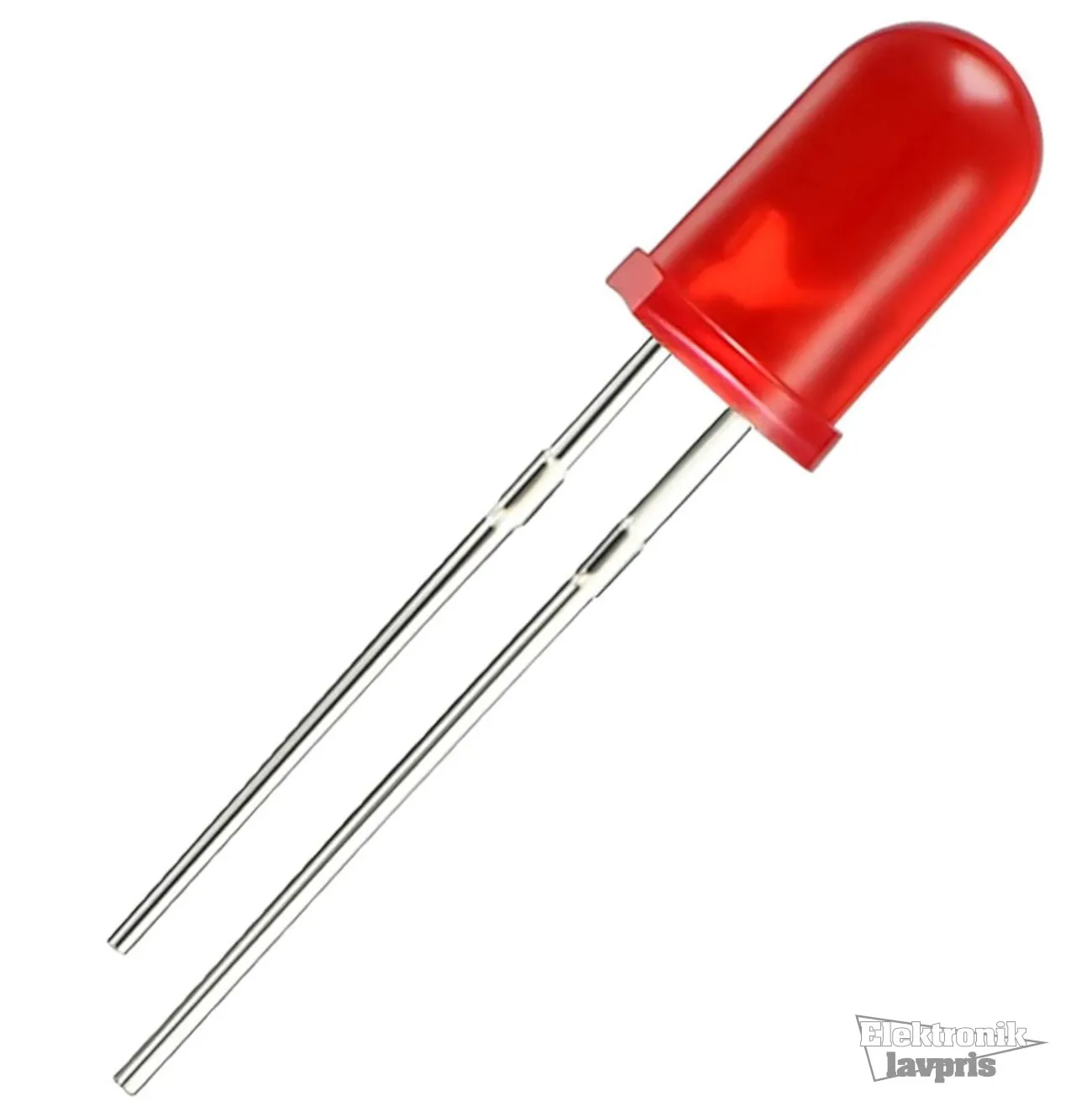

LED Water-clear Red 10000mcd 6° 5mm
Varenummer:
92-265
Varekode: EL383-2SURC/S40
Vægt: 0 g
95 stk.
på lager
Technical Specifications
 |
||||||
| Part Nr. | Colour | WL | VA | LI | @IF | UF |
| [nm] | [°] | [mcd] | [mA] | [V] | ||
| EL383-2SURC/S53 | Red | 632 | 6 | 2305 | 20 | 2,0 |
| EL383-2SURC/S40 | Red | 632 | 6 | 10000 | 20 | 2,0 |
| EL7343-2SURC/H2 | Red | 632 | 30 | 2500 | 20 | 2,0 |
| EL383-2UYC/S53 | Yellow | 591 | 6 | 3100 | 20 | 2,0 |
| EL383-2UYC/S40 | Yellow | 591 | 6 | 20000 | 20 | 2,0 |
| EL383-2SYGC/S53 | Green | 575 | 6 | 810 | 20 | 2,0 |
| 333-2SUGC/S400-A5 | Green | 525 | 10 | 8000 | 30 | 3,4 |
| EL333-2SUGC/H3/S | Green | 518 | 15 | 6300 | 20 | 3,5 |
| EL7344-15SUGC/S | Green | 518 | 30 | 3200 | 20 | 3,5 |
| EL383-2UBGC/S40 | Green | 502 | 6 | 8000 | 20 | 3,5 |
| EL7383/V7C3-ARTA | Green | 502 | 30 | 4500...9000 | 20 | 2,8...3,6 |
| EL383-2SUBC/C47 | Blue | 468 | 6 | 3200 | 20 | 3,5 |
| EL333-2SUBC/H3/C | Blue | 468 | 15 | 2000 | 20 | 3,5 |
| EL7344-15SUBC/C | Blue | 468 | 30 | 1250 | 20 | 3,5 |
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||
Inkl. moms
Kr. 3,85
- v/10 – Kr. 3,21
- v/25 – Kr. 2,57
- v/100 – Kr. 1,93
- v/1000 – Kr. 1,28
