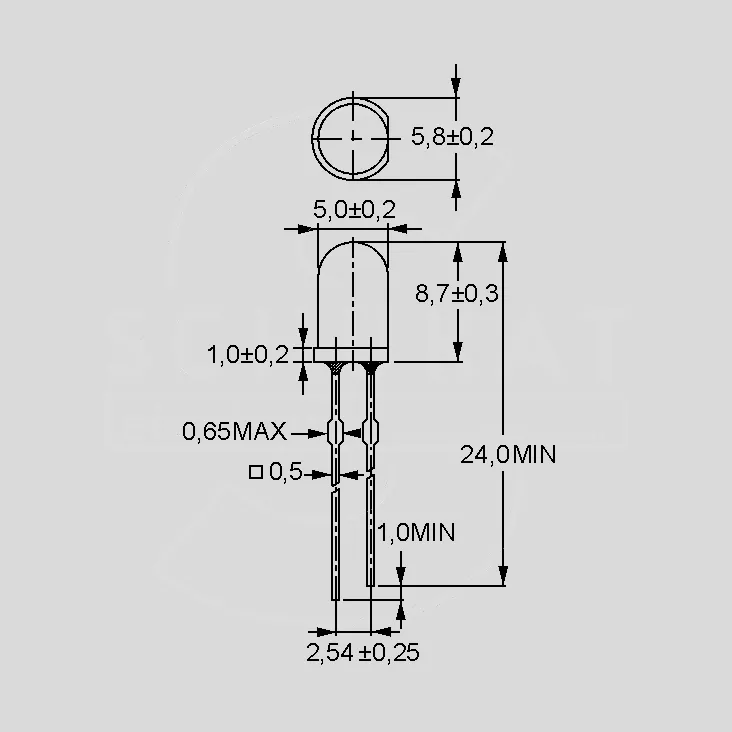

LED Water-clear Red 3500mcd 30° 5mm
Varenummer:
92-264
Varekode: EL7343-2USRC/S10
Vægt: 0 g
47 stk.
på lager
Gruppe: W1352
EVERLIGHT Light Emitting Diodes
Water-clear
Ultrabright
Series: EL333_, EL383-2_, EL7343_, EL7344_, EL7383_
Case: 5mm
| Technical Specifications |
| Part Nr. | Colour | WL | VA | LI | @IF | UF | [nm] | [°] | [mcd] | [mA] | [V] | EL7343-2USRC/S10 | Red | 639 | 30 | 3500 | 20 | 2,3 | EL383-2SURC/S53 | Red | 632 | 6 | 2460 | 20 | 2,0 | EL383-2SURC/S40 | Red | 632 | 6 | 10000 | 20 | 2,0 | EL7343-2SURC/H2 | Red | 632 | 30 | 2500 | 20 | 2,0 | EL383-2UYC/S53 | Yellow | 591 | 6 | 3100 | 20 | 2,0 | EL383-2UYC/S40 | Yellow | 591 | 6 | 20000 | 20 | 2,0 | EL7343-2UYC/S10 | Yellow | 591 | 30 | 2500 | 20 | 2,3 | EL383-2SYGC/S53 | Green | 575 | 6 | 810 | 20 | 2,0 | EL383-2SUGC/S40 | Green | 518 | 6 | 5000 | 20 | 3,5 | EL333-2SUGC/H3/S | Green | 518 | 15 | 6300 | 20 | 3,5 | EL7344-15SUGC/S | Green | 518 | 30 | 3200 | 20 | 3,5 | EL383-2UBGC/S40 | Green | 502 | 6 | 8000 | 20 | 3,5 | EL7383/V7C3-ARTA | Green | 502 | 30 | 4500...9000 | 20 | 2,8...3,6 | EL383-2SUBC/C47 | Blue | 468 | 6 | 3200 | 20 | 3,5 | EL333-2SUBC/H3/C | Blue | 468 | 15 | 2000 | 20 | 3,5 | EL7344-15SUBC/C | Blue | 468 | 30 | 1250 | 20 | 3,5 | |||||||||
| WL = Peak Emission Wavelength, VA = Viewing Angle, LI = Typ. Luminous Intensity, IF = Forward Current, UF = Forward Voltage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| You will find suitable LED holders and spacing pieces in the blue "Passive and Electromechanical Components" catalogue starting at product group H3731 resp. G8293. |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.everlight.com |
|
Inkl. moms
Kr. 9,61
- v/10 – Kr. 8,01
- v/25 – Kr. 6,41
- v/100 – Kr. 4,80
- v/1000 – Kr. 3,20
