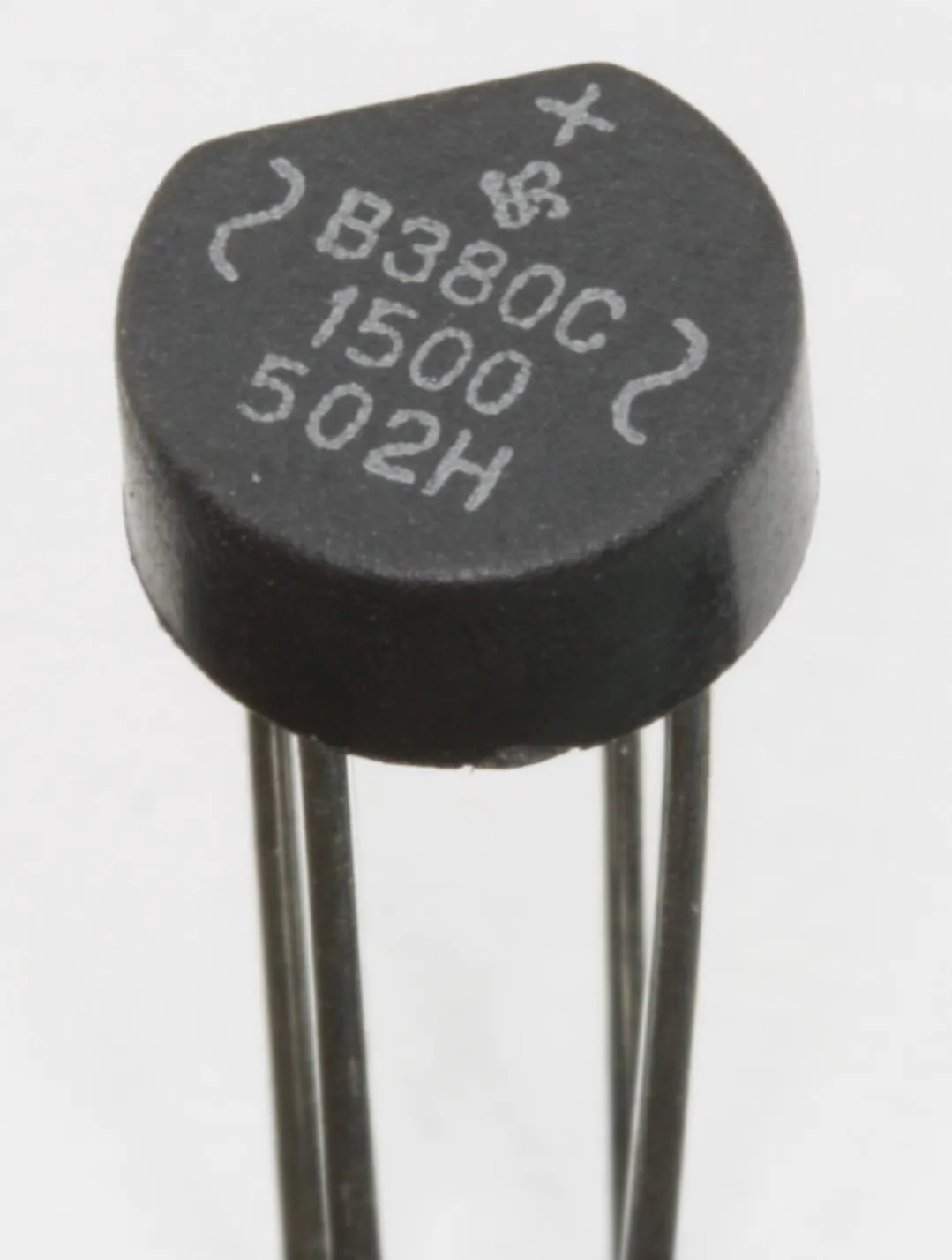

brokoblinge Rund 1,6A 600V(RMS)
Varenummer:
92-187
Varekode: B380C1500G
Vægt: 1 g
172 stk.
på lager
Gruppe: V7334
FAGOR ELECTRONICA (FAG) Bridge Rectifiers 1,5A
Glass Passivated
Series: B_C1500R
Case: Circular
| Technical Specifications |
| • Operating temperature range -40...+150°C |
 |
| Part Nr. | URRM | URMS | UF | IF(AV) | IR | [V] | [V] | [V] | [A] | [µA] | B40C1500R | 100 | 70 | 1,1 | 1,5 | 10 | B80C1500R | 200 | 140 | 1,1 | 1,5 | 10 | B250C1500R | 600 | 420 | 1,1 | 1,5 | 10 | B380C1500R | 900 | 630 | 1,1 | 1,5 | 10 | |||||||
| URRM = Max. Peak Recurrent Reverse Voltage, URMS = Max. RMS Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Rectified Current, IR = Max. Reverse Current | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.fagorelectronica.com |
|
