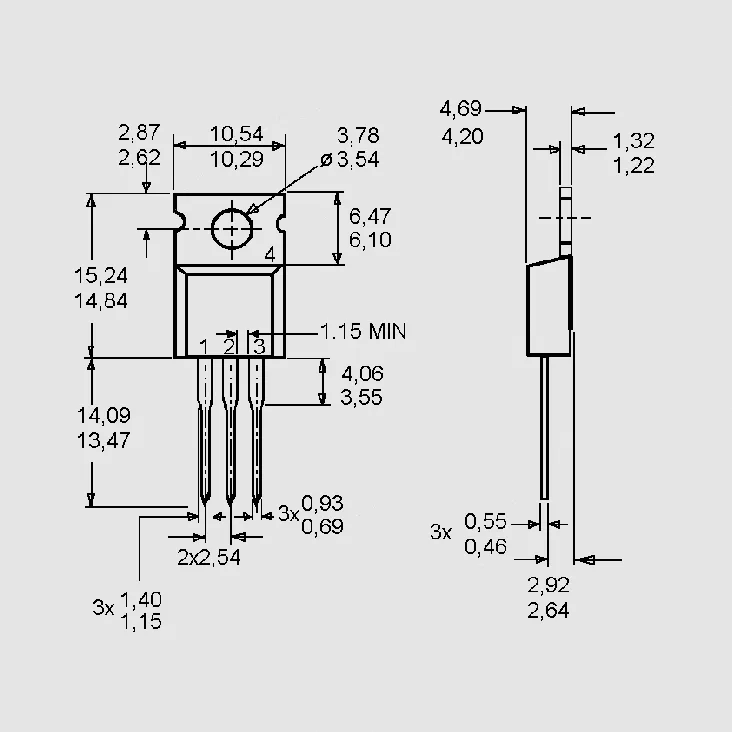

Schottky 100V 16A(2x8) TO220AB
Varenummer:
92-162
Varekode: 16CTQ100PBF
Vægt: 2 g
7 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere 3480 stk. kan skaffes lørdag d. 17/10
Gruppe:
V3538
VISHAY (VIS) Schottky Diodes 8A to 40A
Series: _CPQ_, _CTQ_, _SQ_

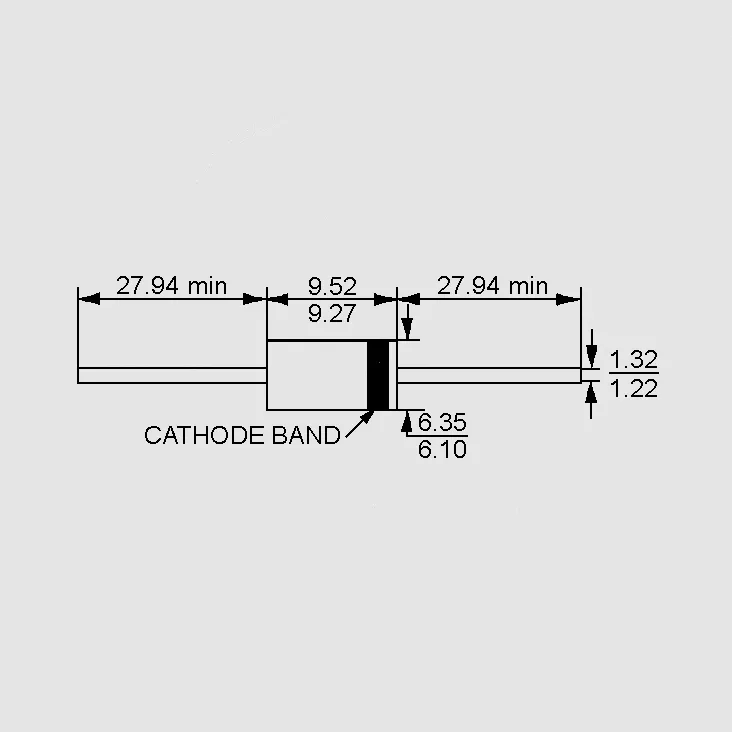

Case: DO204AR, TO220AB, TO247AC
VISHAY (VIS) Schottky Diodes 8A to 40A
Series: _CPQ_, _CTQ_, _SQ_
Case: DO204AR, TO220AB, TO247AC
| Technical Specifications |
| Part Nr. | URRM | UF | IF(AV) | IR | TJ |
| [V] | [V] | [A] | [mA] | [C] | |
| 80SQ045PBF | 45 | 0,53 | 8 | 2,0 | -55...+175 |
| 10CTQ150PBF | 150 | 0,93 | 2x5 | 0,05 | -55...+175 |
| 16CTQ100PBF | 100 | 0,72 | 2x8 | 0,55 | -55...+175 |
| 30CPQ100PBF | 100 | 0,86 | 2x15 | 0,55 | -55...+175 |
| 30CPQ150PBF | 150 | 1,00 | 2x15 | 0,1 | -55...+175 |
| 40CPQ100PBF | 100 | 0,77 | 2x20 | 1,25 | -55...+175 |
| URRM = Max. Peak Recurrent Reverse Voltage, UF = Max. Forward Voltage, IF(AV) = Max. Average Forward Current, IR = Max. Reverse Current, TJ = Operating Temperature Range | |||||
 | |||||
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
| Manufacturer |
| Vishay http://www.vishay.com |
|
