N-Ch 55V 14A 29W 0,07R TO220-Fullpak
Varenummer:
92-090
Varekode: IRFIZ24NPBF
Vægt: 2 g
0 stk.
på lager
Kontakt os for at få oplyst leveringstid
Gruppe:
U8325
INTERNATIONAL RECTIFIER (IR) Power MOSFETs
Series: IRFI_, IRLI_

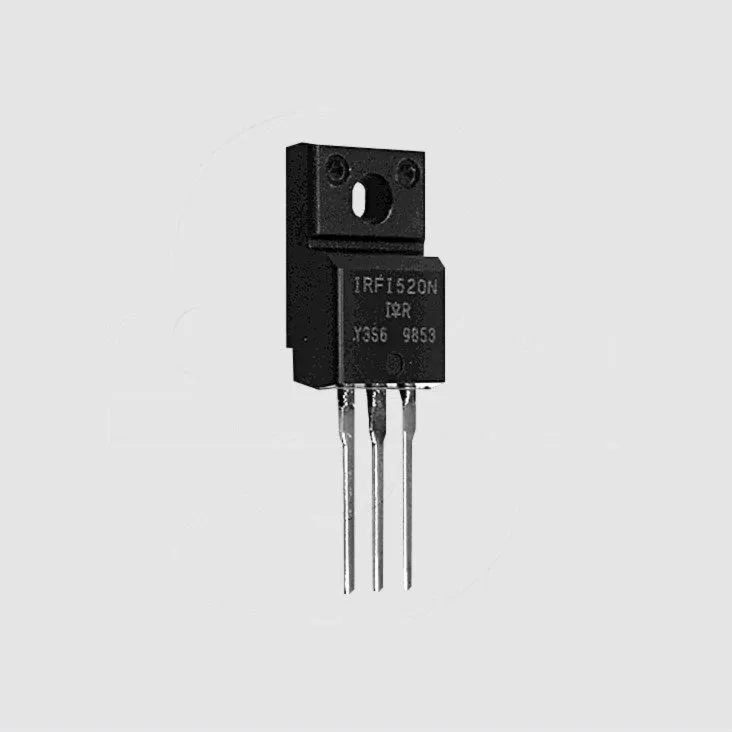

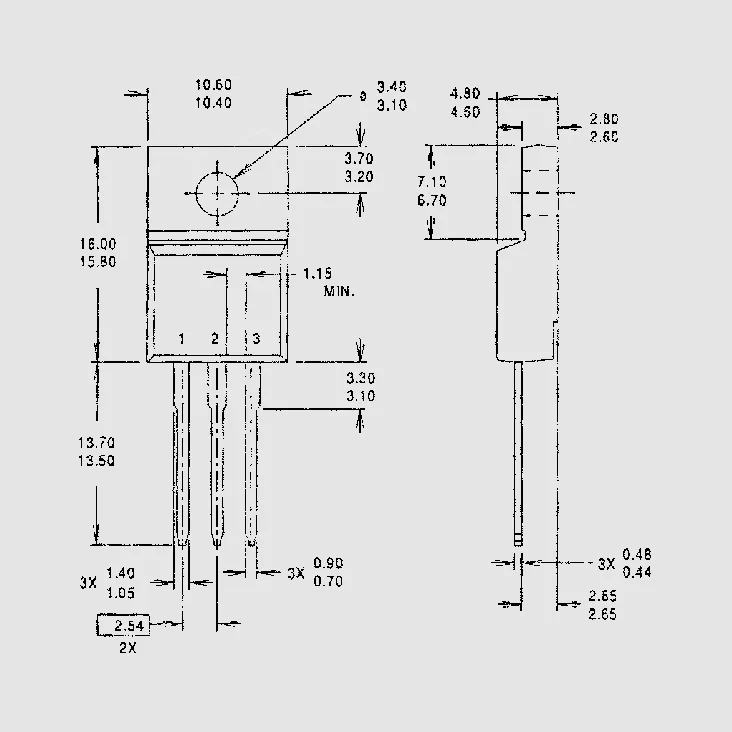

Case: TO220-Fullpak
INTERNATIONAL RECTIFIER (IR) Power MOSFETs
Series: IRFI_, IRLI_
Case: TO220-Fullpak
| Technical Specifications |
| Part Nr. | UDS | ID25 | RDS(on) | UGS(th) | td(on) | td(off) |
| [V] | [A] | W | [V] | [ns] | [ns] | |
| IRFI520NPBF | 100 | 7,6 | 0,200 | 2,0 | 4,5 | 32 |
| IRFI530NPBF | 100 | 12 | 0,110 | 2,0 | 6,4 | 37 |
| IRFI540NPBF | 100 | 20 | 0,052 | 2,0 | 8,2 | 44 |
| IRFI1010NPBF | 55 | 49 | 0,012 | 2,0 | 11 | 40 |
| IRFI1310NPBF | 100 | 24 | 0,036 | 2,0 | 11 | 45 |
| IRFI3205PBF | 55 | 64 | 0,008 | 2,0 | 14 | 43 |
| IRFIZ24NPBF | 55 | 14 | 0,070 | 2,0 | 4,9 | 19 |
| IRFIZ44NPBF | 55 | 31 | 0,024 | 2,0 | 7,3 | 47 |
| IRLI540NPBF | 100 | 23 | 0,044 | 1,0 | 11 | 39 |
| IRLIZ34NPBF | 55 | 22 | 0,035 | 1,0 | 8,9 | 29 |
| IRLIZ44NPBF | 55 | 30 | 0,022 | 1,0 | 11 | 26 |
| UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature | ||||||
 | ||||||
| Note |
| You will find suitable MOSFET Driver ICs in this catalogue starting at product group B1633. Suitable isolation assemblies and heatsinks can be found in our blue "Passive and Electromechanical Components" catalogue starting at product group G9111. Thermolubricants are available in the red "Components and Devices" catalogue from product group R3211 |
|
| Terms of Delivery |
| Minimum order quantity: Please see price list column "MOQ". |
|
| Manufacturer |
 |
| http://www.irf.com |
|
