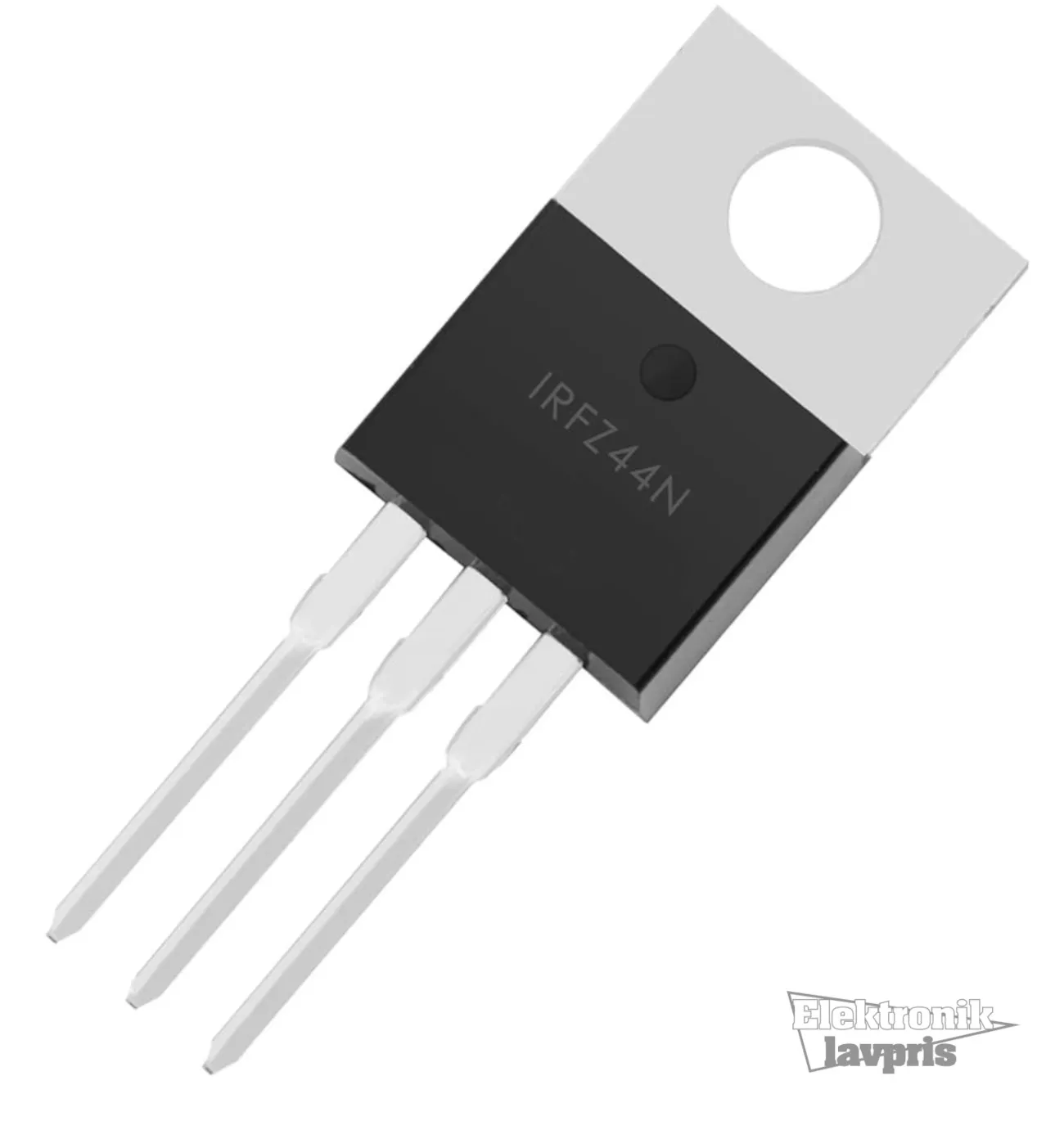

Transistor MOSFET, N-Ch, 55V, 49A ,94W, 0,0175R, TO220AB
Varenummer:
92-076
Varekode: IRFZ44NPBF
Vægt: 2 g
9 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 9010 stk. kan skaffes søndag d. 1/11
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Transistor polaritet | N-Ch |
| Produkt | MOSFET |
| Effekt, max. | 94 W |
| Drain-Source spænding, max | 55 V |
| Continuous drain current, max | 49 A |
| Drain-Source On-modstand, Rds(on) | 0.0175 Ω |
IRFZ44N Transistor Mosfet N-CH 55V 49A 3pin, TO-220AB
- MOSFET, N, 55V, 41A, TO-220
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 41A
- Drain Source Voltage Vds: 55V
- On Resistance Rds(on): 24mohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 4V
- Power Dissipation Pd: 83W
- Transistor Case Style: TO-220AB
- No. of Pins: 3
- SVHC: No SVHC (18-Jun-2012)
- Current Id Max: 49A
- Current Temperature: 25°C
- Device Marking: IRFZ44NPBF
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 1.8°C/W
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- Package / Case: TO-220AB
- Pin Format: 1 g
- 2 d/tab
- 3 s
- Power Dissipation Pd: 83W
- Power Dissipation Pd: 83W
- Pulse Current Idm: 160A
- Termination Type: Through Hole
- Voltage Vds Typ: 55V
- Voltage Vgs Max: 2.1V
- Voltage Vgs Rds on Measurement: 10V
Inkl. moms
Kr. 17,09
- v/10 – Kr. 12,64
- v/25 – Kr. 10,42
- v/100 – Kr. 8,05
- v/1000 – Kr. 5,69
Produktfiler
Transistor MOSFET, N-Ch, 55V, 49A ,94W, 0,0175R, TO220AB
92-076
/ IRFZ44NPBF
9 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem søndag d. 1/11
Specifikationer
- Komponenthus TO220
- Transistor polaritet N-Ch
- Produkt MOSFET
- Effekt, max. 94 W
- Drain-Source spænding, max 55 V
- Continuous drain current, max 49 A
- Drain-Source On-modstand, Rds(on) 0.0175 Ω
IRFZ44N Transistor Mosfet N-CH 55V 49A 3pin, TO-220AB
- MOSFET, N, 55V, 41A, TO-220
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 41A
- Drain Source Voltage Vds: 55V
- On Resistance Rds(on): 24mohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 4V
- Power Dissipation Pd: 83W
- Transistor Case Style: TO-220AB
- No. of Pins: 3
- SVHC: No SVHC (18-Jun-2012)
- Current Id Max: 49A
- Current Temperature: 25°C
- Device Marking: IRFZ44NPBF
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 1.8°C/W
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- Package / Case: TO-220AB
- Pin Format: 1 g
- 2 d/tab
- 3 s
- Power Dissipation Pd: 83W
- Power Dissipation Pd: 83W
- Pulse Current Idm: 160A
- Termination Type: Through Hole
- Voltage Vds Typ: 55V
- Voltage Vgs Max: 2.1V
- Voltage Vgs Rds on Measurement: 10V
