N-Ch 600V 9,2A 170W 0,75R TO220AB

Varenummer: 92-060
Varekode: IRFB9N60APBF
Vægt: 7 g
4 stk. på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 716 stk. kan skaffes tirsdag d. 27/10
Vis lignende produkter i kategorien "MOSFET"
Specifikationer

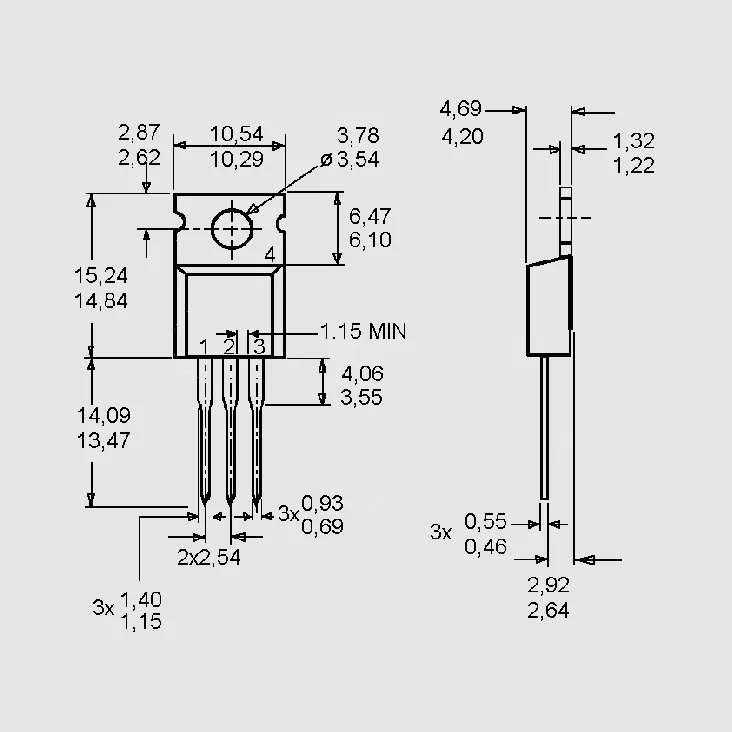

Komponenthus TO220
Transistor polaritet N-Ch
Produkt MOSFET
Continuous drain current, max 9.2  A
Drain-Source spænding, max 600  V
Effekt, max. 170  W
Drain-Source On-modstand, Rds(on) 0.75  Ω
Technical Specifications
Part Nr.
 UDS
 ID25
 RDS(on)
 UGS(th)
 td(on)
 td(off)
  [V]
 [A]
 W
 [V]
 [ns]
 [ns]
IRF510PBF 100
 5,6
 0,540
 2,0
 6,9
 15
IRF520PBF 100
 9,2
 0,270
 2,0
 8,8
 19
IRF530PBF 100
 14
 0,160
 2,0
 10
 23
IRF540PBF 100
 28
 0,077
 2,0
 11
 53
IRF610PBF 200
 3,3
 1,500
 2,0
 8,2
 14
IRF620PBF 200
 5,2
 0,800
 2,0
 7,2
 19
IRF630PBF 200
 9,0
 0,400
 2,0
 9,4
 39
IRF634PBF 250
 8,1
 0,450
 2,0
 9,6
 42
IRF640PBF 200
 18
 0,180
 2,0
 14
 45
IRF644PBF 250
 14
 0,280
 2,0
 11
 53
IRF710PBF 400
 2,0
 3,600
 2,0
 8
 21
IRF720PBF 400
 3,3
 1,800
 2,0
 10
 30
IRF730PBF 400
 5,5
 1,000
 2,0
 10
 38
IRF740PBF 400
 10
 0,550
 2,0
 14
 50
IRF820PBF 500
 2,5
 3,000
 2,0
 8
 33
IRF830PBF 500
 4,5
 1,500
 2,0
 8,2
 42
IRF830APBF 500
 5,0
 1,400
 2,0
 10
 21
IRF840PBF 500
 8,0
 0,850
 2,0
 14
 49
IRF840APBF 500
 8,0
 0,850
 2,0
 11
 26
IRF9510PBF 100
 4,0
 1,200
 2,0
 10
 15
IRF9520PBF 100
 6,8
 0,600
 2,0
 9,6
 21
IRF9530PBF 100
 12
 0,300
 2,0
 12
 31
IRF9540PBF 100
 19
 0,200
 2,0
 16
 34
IRF9610PBF 200
 1,8
 3,000
 2,0
 8
 10
IRF9620PBF 200
 3,5
 1,500
 2,0
 15
 20
IRF9630PBF 200
 6,5
 0,800
 2,0
 12
 28
IRF9640PBF 200
 11
 0,500
 2,0
 14
 39
IRFB9N60APBF 600
 9,2
 0,750
 2,0
 13
 30
IRFB9N65APBF 650
 8,5
 0,930
 2,0
 14
 34
IRFB11N50APBF 500
 11
 0,520
 2,0
 14
 32
IRFB17N50LPBF 500
 16
 0,320
 3,0
 21
 50
IRFBC30PBF 600
 3,6
 2,200
 2,0
 11
 35
IRFBC40PBF 600
 6,2
 1,200
 2,0
 13
 55
IRFBE20PBF 800
 1,8
 6,500
 2,0
 8,2
 58
IRFBE30PBF 800
 4,1
 3,000
 2,0
 12
 82
IRFBF30PBF 900
 3,6
 3,700
 2,0
 14
 90
IRFBG20PBF 1000
 1,4
 11,000
 2,0
 9,4
 58
IRFBG30PBF 1000
 3,1
 5,000
 2,0
 12
 89
IRL640PBF 200
 17
 0,180
 1,0
 8
 44
IRLZ14PBF 60
 10
 0,200
 1,0
 9,3
 17
UDS = Max. Drain-Source Voltage, ID25 = Max. Continuous Drain Current At TC = 25°C, RDS(on) = Max. Drain-Source On-Resistance, UGS(th) = Min. Gate Threshold Voltage, td(on) = Turn-On Delay Time, td(off) = Turn-Off Delay Time, TC = Case Temperature
Manufacturer
Vishay
http://www.vishay.com
Inkl. moms
Kr. 40,00
  • v/10 – Kr. 26,87
  • v/25 – Kr. 26,14
  • v/100 – Kr. 17,92
