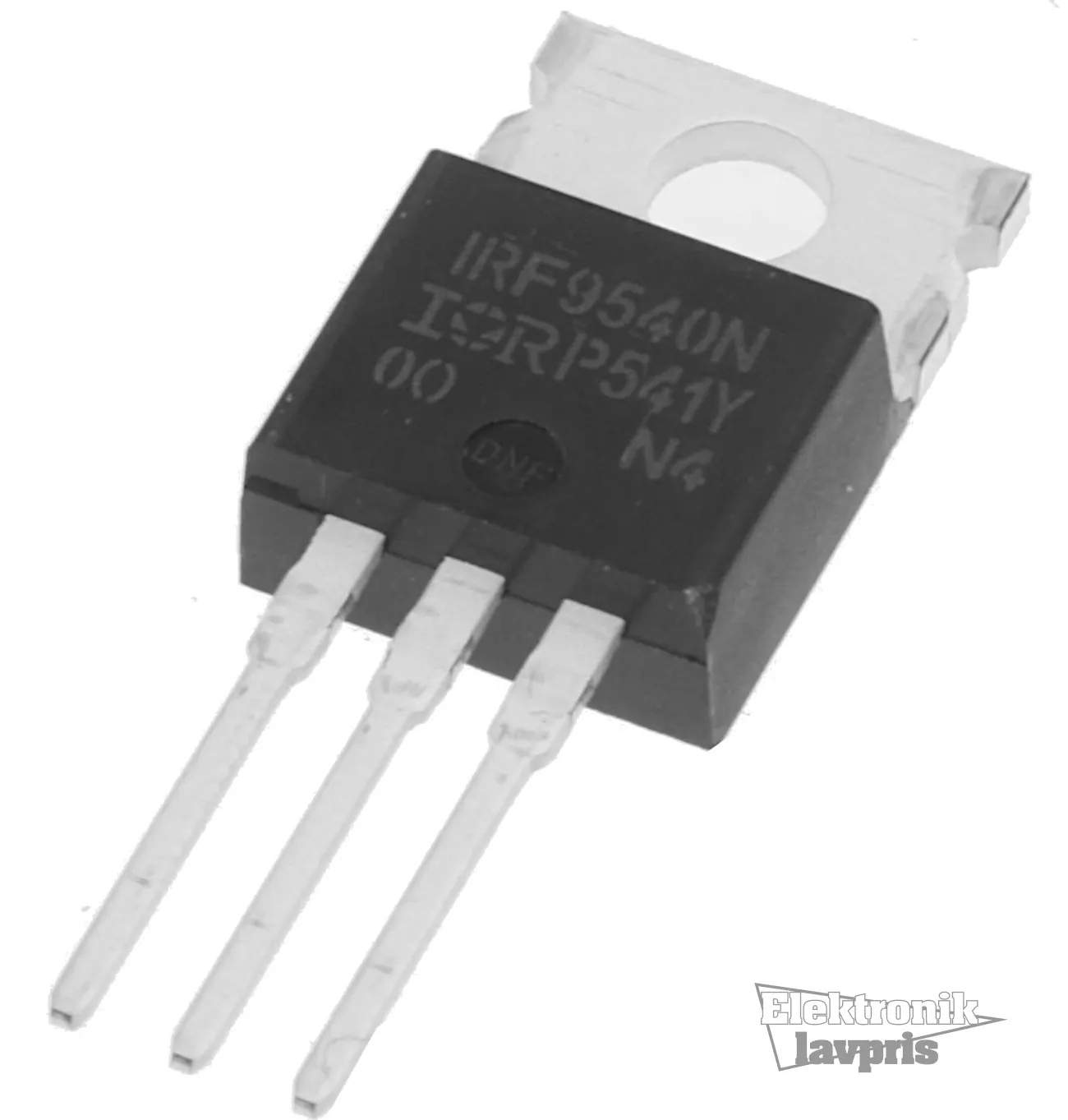

Transistor MOSFET, P-Ch, 100V, 23A, 140W, 0,117R, TO220AB
Varenummer:
92-057
Varekode: IRF9540NPBF
Vægt: 2 g
20 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 3825 stk. kan skaffes søndag d. 1/11
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Transistor polaritet | P-Ch |
| Produkt | MOSFET |
| Continuous drain current, max | 23 A |
| Effekt, max. | 140 W |
| Drain-Source spænding, max | 100 V |
| Drain-Source On-modstand, Rds(on) | 0.117 Ω |
- MOSFET, P, -100V, -23A, TO-220
- Transistor Polarity: P Channel
- Continuous Drain Current Id: 19A
- Drain Source Voltage Vds: 100V
- On Resistance Rds(on): 117mohm
- Rds(on) Test Voltage Vgs: -10V
- Threshold Voltage Vgs Typ: -4V
- Power Dissipation Pd: 94W
- Transistor Case Style: TO-220AB
- No. of Pins: 3
- SVHC: No SVHC (19-Dec-2011)
- Current Id Max: -23A
- Current Temperature: 25°C
- Device Marking: IRF9540N
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 1.1°C/W
- Lead Spacing: 2.54mm
- No. of Transistors: 1
- On State Resistance Max: 117mohm
- Package / Case: TO-220AB
- Pin Configuration: a
- Pin Format: 1 g
- 2 d/tab
- 3 s
- Power Dissipation Pd: 94W
- Power Dissipation Pd: 94W
- Pulse Current Idm: 76A
- Termination Type: Through Hole
- Voltage Vds: 100V
- Voltage Vds Typ: -100V
- Voltage Vgs Max: -4V
- Voltage Vgs Rds on Measurement: -10V
- Voltage Vgs th Max: -4V
Inkl. moms
Kr. 19,38
- v/10 – Kr. 15,00
- v/25 – Kr. 14,69
- v/100 – Kr. 10,78
- v/1000 – Kr. 8,12
