N-Ch 500V 8A 125W 0,85R TO220AB
Varenummer:
92-043
Varekode: IRF840APBF
Vægt: 2 g
8 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 200 stk. kan skaffes søndag d. 1/11
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Transistor polaritet | N-Ch |
| Produkt | MOSFET |
| Continuous drain current, max | 8 A |
| Drain-Source spænding, max | 500 V |
| Effekt, max. | 125 W |
| Drain-Source On-modstand, Rds(on) | 0.85 Ω |
- MOSFET, N, 500V, 8A, TO-220
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 8A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 850mohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 4V
- Power Dissipation Pd: 125W

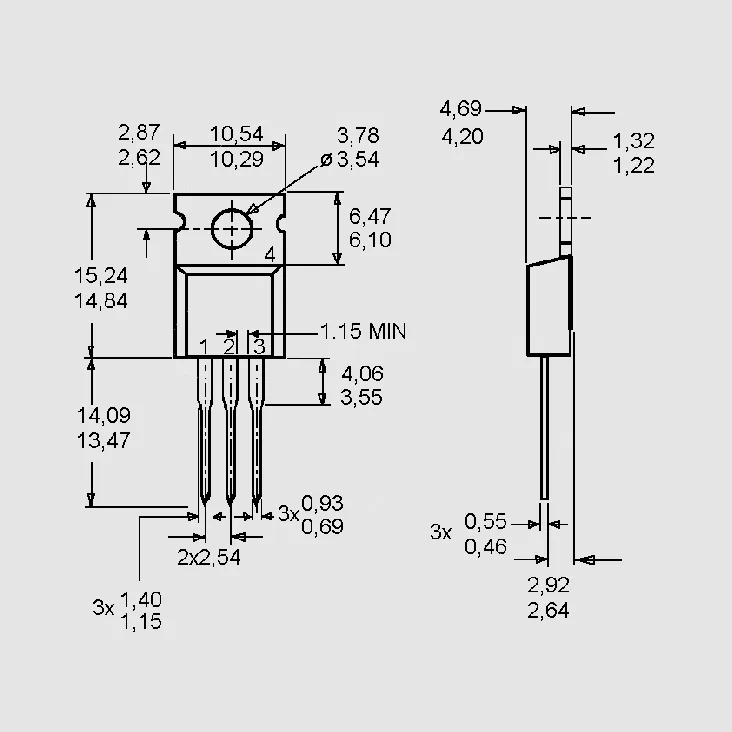

- Transistor Case Style: TO-220AB
- No. of Pins: 3
- SVHC: No SVHC (19-Dec-2011)
- Current Id Max: 8A
- Current Temperature: 25°C
- Full Power Rating Temperature: 25°C
- Junction to Case Thermal Resistance A: 1°C/W
- No. of Transistors: 1
- Package / Case: TO-220AB
- Power Dissipation Pd: 125W
- Power Dissipation Pd: 125W
- Pulse Current Idm: 32A
- Termination Type: Through Hole
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 4V
