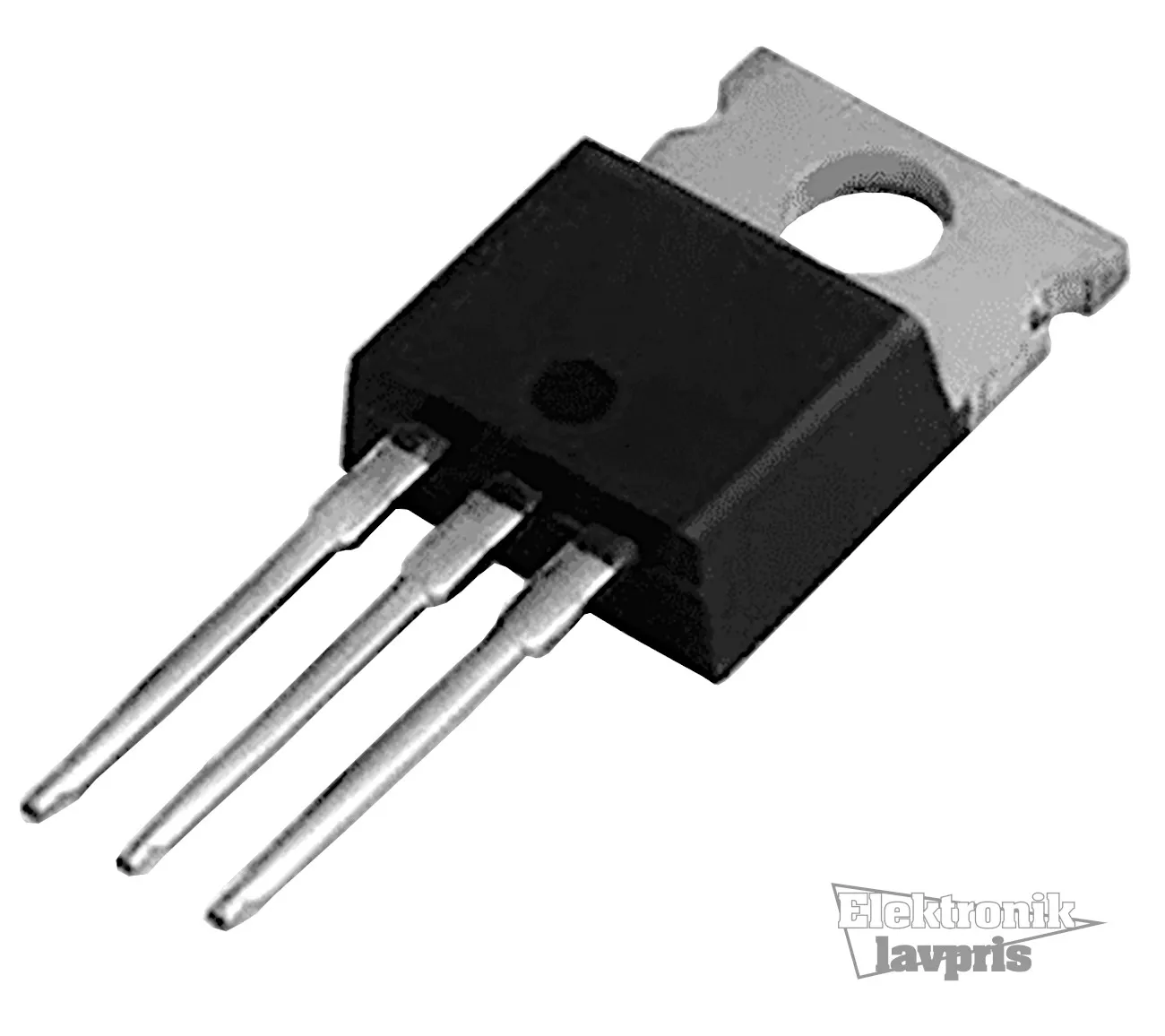

Transistor MOSFET, N-Ch, 500V, 8A, 125W, 0,85R, TO220AB
Varenummer:
92-042
Varekode: IRF840PBF
Vægt: 2 g
342 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 2250 stk. kan skaffes søndag d. 1/11
Specifikationer
| Komponenthus | TO220 |
|---|---|
| Transistor polaritet | N-Ch |
| Produkt | MOSFET |
| Continuous drain current, max | 8 A |
| Drain-Source spænding, max | 500 V |
| Effekt, max. | 125 W |
| Drain-Source On-modstand, Rds(on) | 0.85 Ω |
IRF840 MOSFET Transisitor, N, 500V, 8A, TO-220
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 8A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 850mohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 4V
- Power Dissipation Pd: 125W
- Transistor Case Style: TO-220AB
- No. of Pins: 3
- SVHC: No SVHC (19-Dec-2011)
- Current Id Max: 8A
- Junction to Case Thermal Resistance A: 1°C/W
- Package / Case: TO-220AB
- Power Dissipation Pd: 125W
- Power Dissipation Pd: 125W
- Pulse Current Idm: 32A
- Termination Type: Through Hole
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
Inkl. moms
Kr. 15,11
- v/10 – Kr. 13,80
- v/25 – Kr. 11,09
- v/100 – Kr. 7,12
- v/250 – Kr. 6,25
Produktfiler
Transistor MOSFET, N-Ch, 500V, 8A, 125W, 0,85R, TO220AB
92-042
/ IRF840PBF
342 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem søndag d. 1/11
Specifikationer
- Komponenthus TO220
- Transistor polaritet N-Ch
- Produkt MOSFET
- Continuous drain current, max 8 A
- Drain-Source spænding, max 500 V
- Effekt, max. 125 W
- Drain-Source On-modstand, Rds(on) 0.85 Ω
IRF840 MOSFET Transisitor, N, 500V, 8A, TO-220
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 8A
- Drain Source Voltage Vds: 500V
- On Resistance Rds(on): 850mohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 4V
- Power Dissipation Pd: 125W
- Transistor Case Style: TO-220AB
- No. of Pins: 3
- SVHC: No SVHC (19-Dec-2011)
- Current Id Max: 8A
- Junction to Case Thermal Resistance A: 1°C/W
- Package / Case: TO-220AB
- Power Dissipation Pd: 125W
- Power Dissipation Pd: 125W
- Pulse Current Idm: 32A
- Termination Type: Through Hole
- Voltage Vds Typ: 500V
- Voltage Vgs Max: 20V
- Voltage Vgs Rds on Measurement: 10V
