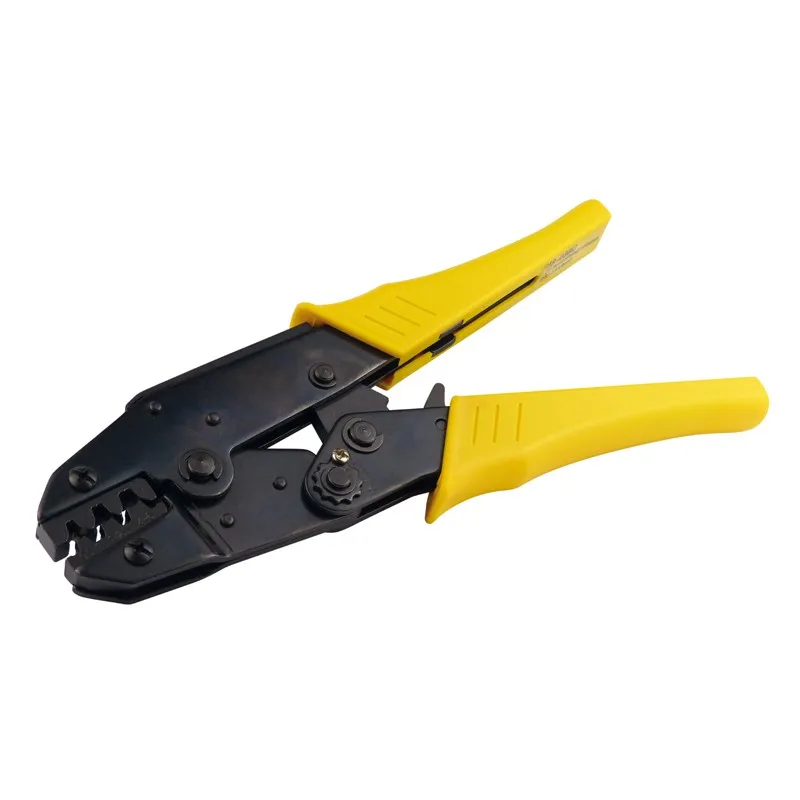

Crimp Pliers f. Noninsulated Receptacles HT-236C
Varenummer:
91-115
Varekode: EWZ230C
Vægt: 530 g
19 stk.
på lager
Gruppe:
T4611
Crimping Pliers
For End Sleeves, Receptacles and Crimping Contacts
Series: EWZ
T4611
Crimping Pliers
For End Sleeves, Receptacles and Crimping Contacts
Series: EWZ
| Features |
| • Crimping pliers made of special steel, black burnished surface • All parts except EWZ230C feature: high transmission of force due to lever action, precision dies and integral lock • Easy to handle due to well formed PVC insulated grips • Length: 220mm |
 |
| Application |
| Part Nr. | Application |
| EWZ301E | For End Sleeves (Insulated and Non-Insulated |
| Crimping Sleeves) | |
| EWZ301S | For End Sleeves (Insulated and Non-Insulated |
| Crimping Sleeves) | |
| EWZ301 | For Insulated Connectors and Receptacles |
| EWZ230C | For Non-Insulated Connectors and Receptacles |
| EWZ301U | For Non-Insulated Connectors and Receptacles |
| EWZ225D | For Non-Insulated Connectors and Receptacles |
| As Well as Crimping Contacts NSK_ (See Note) | |
| EWZ202B | For IC-Pins, Soldering-in Pins and Receptacles and |
| Non-Insulated Connectors | |
| |
| Part Nr. | AWG | DIN |
| [mm2] | ||
| EWZ301E | 22; 20; 18; 16; 14; 12 | 0,5; 0,75; 1,0; 1,5; 2,5; 4 |
| EWZ301S | 10; 8; 6 | 6; 10; 16 |
| EWZ301 | 22-19; 16-14; 12-10 | 0,5-1,0; 1,5-2,5; 4-6 |
| EWZ230C | 20-18; 16-14; 12-10 | 0,75-1,0; 1,5-2,5; 4-6 |
| EWZ301U | 22-14 | 2,5-0,5 |
| EWZ225D | 22-18 | 0,5-1,0 |
| EWZ202B | - | - |
| ||
| Note |
| You will find crimping contacts NSK_ in our blue "Passive and Electromechanical Components" catalogue at product groups F1431 and F1445. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Form of delivery: blister packed with SB flap |
|
| Manufacturer |
| Various |
|
Inkl. moms
Kr. 249,00
- v/10 – Kr. 199,00
