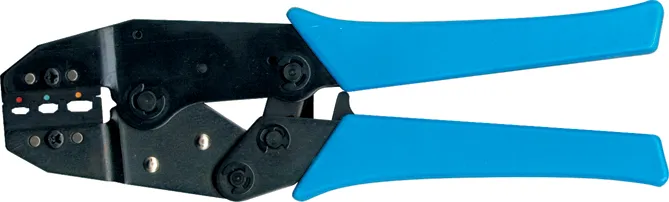

Crimptang for isolerede kabelsko HT-301
Varenummer:
91-114
Varekode: EWZ301
Vægt: 533 g
6 stk.
på lager
Gruppe:
T4611
Crimping Pliers
For End Sleeves, Receptacles and Crimping Contacts
Series: EWZ
| Features |
| • Crimping pliers made of special steel, black burnished surface • All parts except EWZ230C feature: high transmission of force due to lever action, precision dies and integral lock • Easy to handle due to well formed PVC insulated grips • Length: 220mm |
 |
| Application |
| Part Nr. | Application | EWZ301E | For End Sleeves (Insulated and Non-Insulated | Crimping Sleeves) | EWZ301S | For End Sleeves (Insulated and Non-Insulated | Crimping Sleeves) | EWZ301 | For Insulated Connectors and Receptacles | EWZ230C | For Non-Insulated Connectors and Receptacles | EWZ301U | For Non-Insulated Connectors and Receptacles | EWZ225D | For Non-Insulated Connectors and Receptacles | As Well as Crimping Contacts NSK_ (See Note) | EWZ202B | For IC-Pins, Soldering-in Pins and Receptacles and | Non-Insulated Connectors | ||||||
|
|||||||||||||||||||||||||
| Part Nr. | AWG | DIN | [mm2] | EWZ301E | 22; 20; 18; 16; 14; 12 | 0,5; 0,75; 1,0; 1,5; 2,5; 4 | EWZ301S | 10; 8; 6 | 6; 10; 16 | EWZ301 | 22-19; 16-14; 12-10 | 0,5-1,0; 1,5-2,5; 4-6 | EWZ230C | 20-18; 16-14; 12-10 | 0,75-1,0; 1,5-2,5; 4-6 | EWZ301U | 22-14 | 2,5-0,5 | EWZ225D | 22-18 | 0,5-1,0 | EWZ202B | - | - | |||||
|
|||||||||||||||||||||||||||||
| Note |
| You will find crimping contacts NSK_ in our blue "Passive and Electromechanical Components" catalogue at product groups F1431 and F1445. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Form of delivery: blister packed with SB flap |
|
| Manufacturer |
| Various |
| Pressetang |
