Fluxing and Drying Tank
Varenummer:
91-059
Varekode: FT142301
Vægt: 10472 g
0 stk.
på lager
Gruppe:
T3611

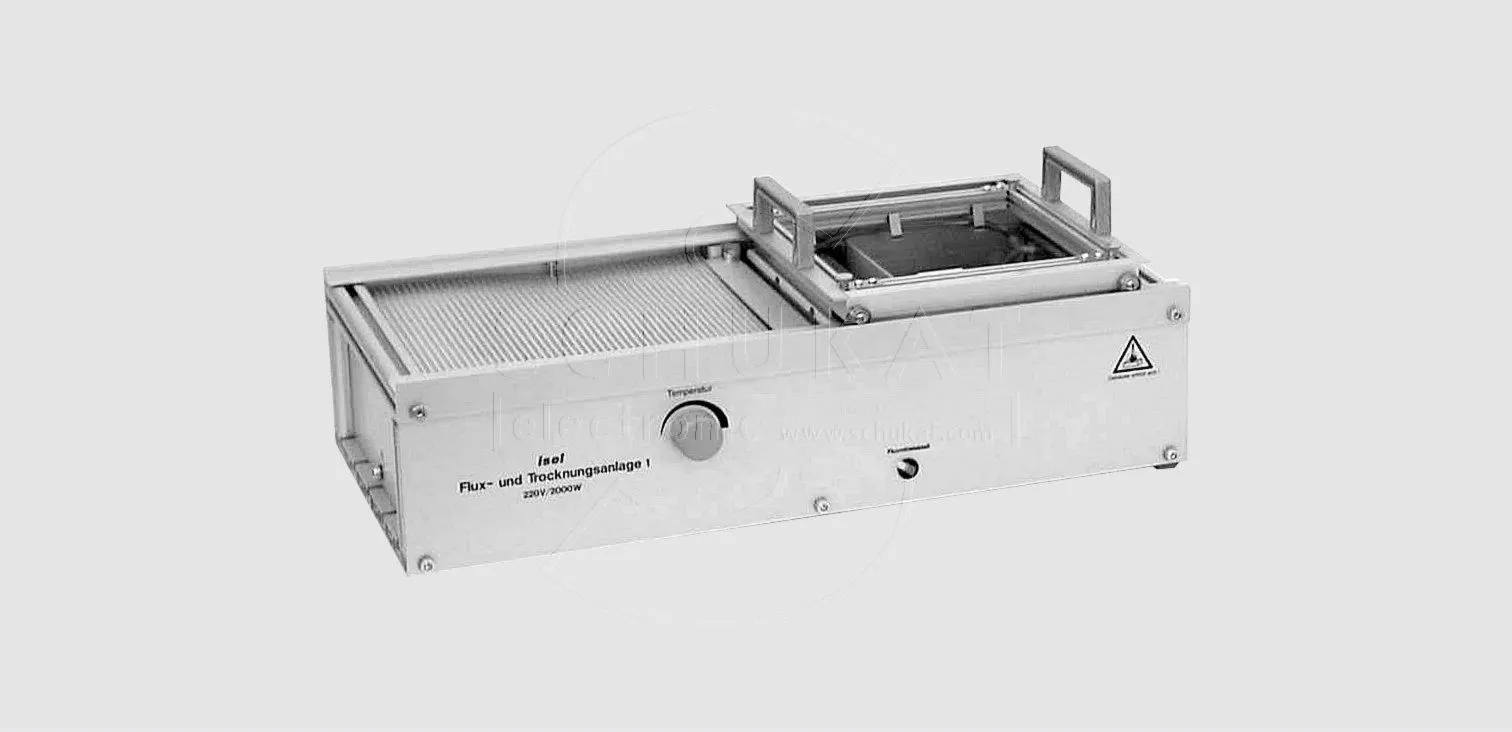

GIE-TEC Fluxing and Drying Tank
Series: FT
GIE-TEC Fluxing and Drying Tank
Series: FT
| Application |
| For preparing populated boards for dip soldering or unpopulated boards for roller-tinning. The height and width of fluxing and drying tank 1 conform to tinning and soldering tank 1. |
 |
| Features |
| • Anodized aluminium housing (LxWxH): 550x260x140mm (length: 820mm with guidance for soldering bogie) • Foam fluxer can be switched off, capacity 400m3 • Flux container with integral air supply, efficient flux pump capacity 250l/h. Flux can be drained • Fine, precise control plastic tube foam head • Capable of utilising low-solid content flux • Heating plate for pre-heating and drying • Power consumption 230V/2000W • Flux bogie FT149221, used as tinned and soldering bogie for boards up to 180x180mm |
|
| Note |
| You will find low-solid content foam fluxes FL154085 and flux thinner (which adjusts to the thickness amount of the fluxer) FT155086 in product group R3511. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.gie-tec.de |
|
