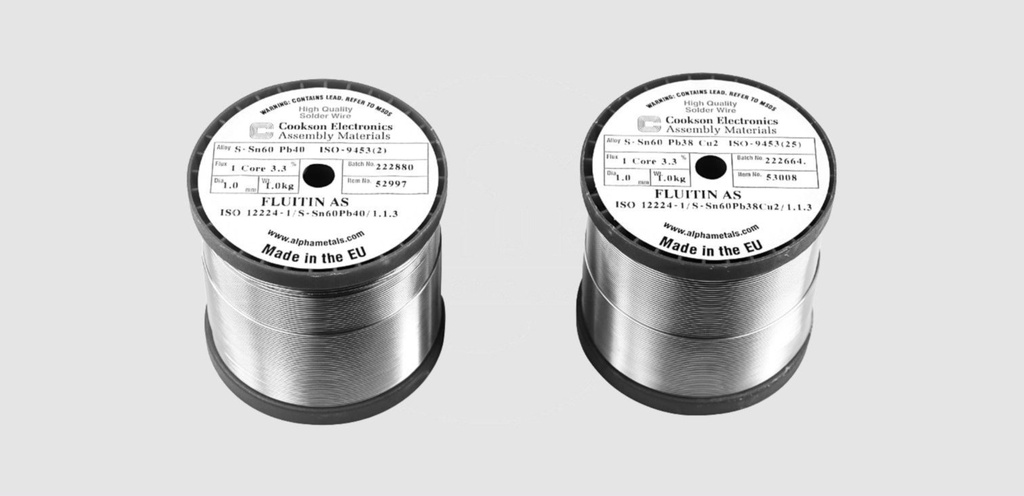

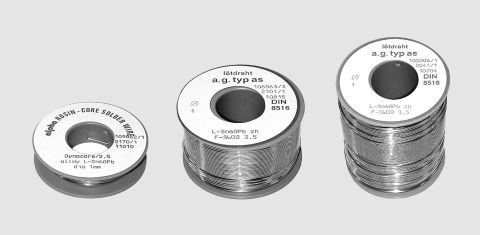

Tin 60% -AS- 1000g/Cu 1,0mm
Varenummer:
90-840
Varekode: LZ32-1000CU-PB
Vægt: 1056 g
0 stk.
på lager
Specifikationer
| Tin, Sn | 60 % |
|---|---|
| Bly, Pb | 39 % |
| Flusmiddel | 3.3 % |
| Vægt | 1 kg |
| Kobber, Cu | 1 % |
| Diameter | 1 mm |
Gruppe:
R5173
ALPHA-COOKSON Leaded Soldering Wires
Halide-free Flux 3,3%
Diameter: 1,0mm
Series: Fluitin AS
ALPHA-COOKSON Leaded Soldering Wires
Halide-free Flux 3,3%
Diameter: 1,0mm
Series: Fluitin AS
| Features |
| For soldering PCBs and high performance electronic products Halide-free flux Non-corrosive, clear and safe residues No clean application Soldering with and without copper addition |
 |
| Technical Specifications |
| |
| Alloy (DIN ISO 9453) | |
| LZ32_CU: | S-Sn60Pb39Cu1 |
| LZ32_DT: | S-Sn60Pb40 |
| Melting Point: | +183...+190C |
| Flux (F-SW32) | |
| EN26454-1: | 1.1.3 |
| J-STD004: | ROL0 |
| Content: | 3,3±0,5 Weight -% |
| Spread (DIN 8511): | 140mm2 |
| |
| Note |
| You will find soldering stations and irons starting at product group T1121. The products with suffix -PB in this product group do not meet the requirements of the EU directive concerning the use of hazardous substances in electrical and electronic devices (RoHS). The use of these products may contradict hazardous-substance legislation in your country. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.alpha.cooksonelectronics.com |
|
