Sn95Ag4Cu1 TSC 1,5% 1,0mm 500g
Varenummer:
90-831
Varekode: LZ10BF-500
Vægt: 539 g
0 stk.
på lager
Specifikationer
| Produkt | loddetin |
|---|---|
| Flusmiddel | 1.5 % |
| Vægt | 500 g |
| Diameter | 1 mm |
Gruppe: R5112

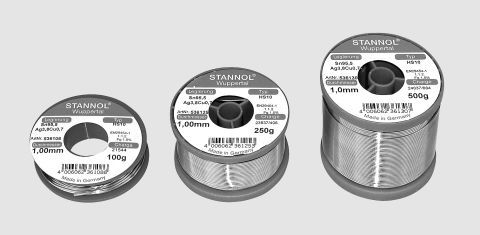

STANNOL Lead-free Soldering Wires Ecoloy
Halide-activated Flux 1,5%
Diameter: 1,0mm
Series: HS10 TSC
| Features |
| • Halide-activated natural resin fluxes • High activity, good spread and high residue reliability • Flux residues - can be left on the PCB • High spread speed • For soldering copper, brass, silver, as well as nickel, silver and tin surfaces • Hand and robot soldering • Flux content 1,5% |
 |
| Technical Specifications |
|
|||||||||||||
| Melting Point: | 217°C | Flux Type (IEC 61190-1-3 ROM1): | 1.1.2.B | Flux Content: | 1,5% | Corrosive Effects (DIN 8516): | None | Alloy (ISO 9453:2006): | Sn95Ag4Cu1/713 | Flux Core: | 1 Core | ||
|
|||||||||||||
| Note |
| • You will find soldering stations and irons starting at product group T1121. • Soldering temperature and soldering time must accordingly be adjusted for lead-free solders. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.stannol.de |
|
Produktfiler
