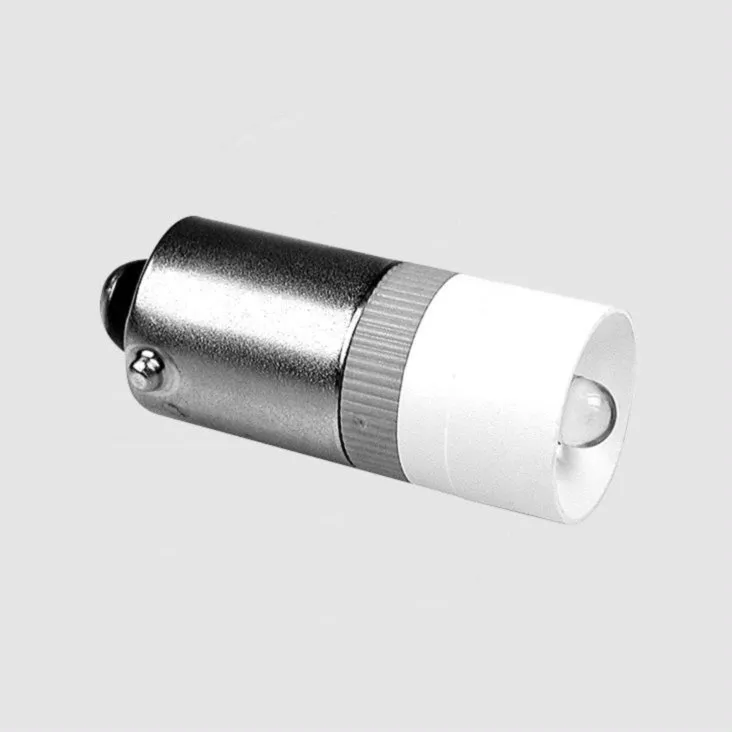

Reflector LED BA9s 24V White
Varenummer:
90-527
Varekode: MEDB2564WS
Vægt: 2 g
10 stk.
på lager
Specifikationer
| Spænding, max. | 24 V |
|---|---|
| Effekt, max. | 0.4 W |
| Strøm, max. | 0.01667 A |
Gruppe:
H3843
SIGNAL CONSTRUCT LED Reflector Lamps
Series: MEDB
On BA9s Lamp Socket
Rated Voltage: 24V
SIGNAL CONSTRUCT LED Reflector Lamps
Series: MEDB
On BA9s Lamp Socket
Rated Voltage: 24V
| Features |
| 3mm LED produces high intensity brightness BA9s lamp socket Highly reflective plastic body Integrated resistor and protective diode |
 |
| Technical Specifications |
| |
| Rated Voltage: | 24V DC |
| Rated Voltage Range: | 20...28V DC |
| Power, Typ.: | 0,4W |
| |
| Part Nr. | Colour | WL | VA | LI |
| [nm] | [] | [mcd] | ||
| MEDB2504 | Red | 640 | 50 | 1300 |
| MEDB2564 | White | - | 50 | 2000 |
| MEDB2574 | Ultra Green | 525 | 50 | 5000 |
| WL = Dominate Wavelenght, VA = View Angle, LI = Luminous Intensity (@20mA) | ||||
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.signal-construct.de |
|
Inkl. moms
Kr. 30,00
Kr. 67,50
- v/10 – Kr. 25,00
- v/50 – Kr. 20,00
Produktfiler
Reflector LED BA9s 24V White
90-527
/ MEDB2564WS
10 stk.
på lager
Specifikationer
- Spænding, max. 24 V
- Effekt, max. 0.4 W
- Strøm, max. 0.01667 A
Gruppe:
H3843
SIGNAL CONSTRUCT LED Reflector Lamps
Series: MEDB
On BA9s Lamp Socket
Rated Voltage: 24V
SIGNAL CONSTRUCT LED Reflector Lamps
Series: MEDB
On BA9s Lamp Socket
Rated Voltage: 24V
| Features |
| 3mm LED produces high intensity brightness BA9s lamp socket Highly reflective plastic body Integrated resistor and protective diode |
|
| Technical Specifications |
| |
| Rated Voltage: | 24V DC |
| Rated Voltage Range: | 20...28V DC |
| Power, Typ.: | 0,4W |
| |
| Part Nr. | Colour | WL | VA | LI |
| [nm] | [] | [mcd] | ||
| MEDB2504 | Red | 640 | 50 | 1300 |
| MEDB2564 | White | - | 50 | 2000 |
| MEDB2574 | Ultra Green | 525 | 50 | 5000 |
| WL = Dominate Wavelenght, VA = View Angle, LI = Luminous Intensity (@20mA) | ||||
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| |
| http://www.signal-construct.de |
|
